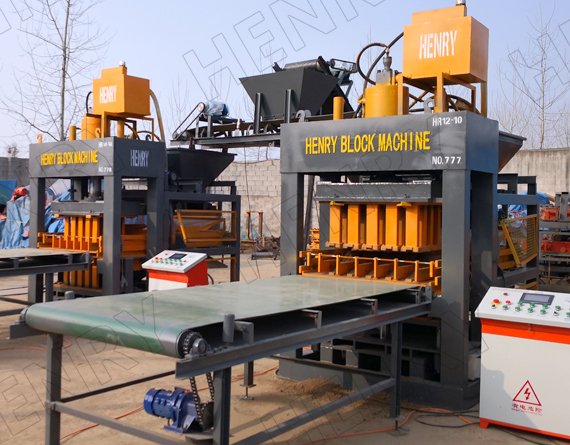

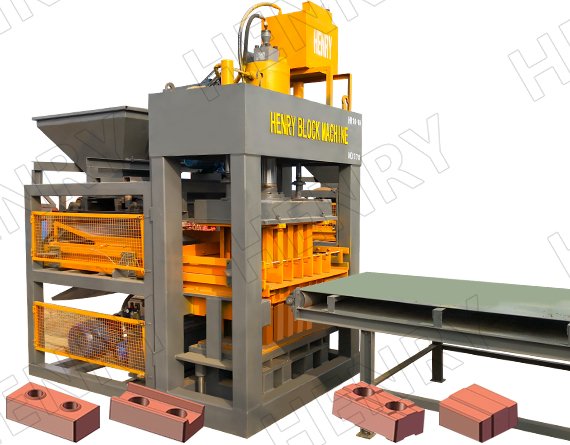

HR10-10 interlocking bricks machine featuring 100-tons pressing force and high production capacity.
The core advantages of the HR10-10 interlocking bricks machine lie in its massive 100-tons hydraulic pressing force, rapid production capability, and superior build quality. The hydraulic system of the HR10-10 hydraform interlocking bricks machine comprises a hydraulic pump, hydraulic hoses, solenoid valves, and a 100-tons hydraulic cylinder, delivering the immense pressing force required for clay brick production. The immense hydraulic force of the HR10-10 interlocking block making machine not only compresses the clay raw materials within the mold into a highly compact and dense state but also boosts production efficiency; capable of producing 20,000 clay interlocking bricks (measuring 300×150×100 mm) in an eight-hour shift, the machine offers impressive output that fully meets the demands of large-scale community and urban housing projects.
Three reasons why we recommended HR10-10 interlocking bricks machine to you
First, the HR10-10 interlocking bricks machine features a powerful hydraulic force of 100 tons; this can be increased to 200 or 300 tons to meet specific customer requirements. The immense pressing force of the HR10-10 interlocking bricks machine price achieves a compression ratio of 1:1.9; for instance, when producing 100mm-high clay bricks, the mold box depth reaches 190mm—a ratio far exceeding the 1:1.6 standard found in a manual interlocking bricks machine. The immense hydraulic pressure gives the clay bricks produced by the HR10-10 interlocking bricks machine superior advantages in terms of strength, density, and consistency, resulting in greater load-bearing capacity and a longer service life. These high-quality clay bricks command higher prices in local markets, enabling customers to build their own brands, capture market share, and achieve greater profit margins.
Another key advantage is its high output and rapid production speed. This is made possible by the HR10-10 interlocking bricks machine’s advanced, precise, reliable, and intelligent PLC control system. Featuring a user-friendly interface and simple operation, the machine automates processes such as material dispensing, feeding, hydraulic molding, and demolding, while allowing for the adjustment of parameters like pressure and production speed. The HR10-10 interlocking bricks machine kenya can mold ten 300×150×100 mm clay bricks in a single cycle and produce nearly 20,000 bricks in an eight-hour shift—an output capacity fully capable of meeting the needs of a large-scale brick plant. Its 100-ton hydraulic force not only ensures rapid production but also results in bricks with superior strength, higher density, and greater durability.
Thirdly, the equipment boasts exceptional quality. The HR10-10 interlocking bricks machine measures 3,200 x 1,850 x 3,400 mm and weighs 5,500 kg; its main frame is constructed from thickened Q235B steel plate, ensuring a robust, sturdy, and durable structure. The interlocking bricks machine’s molds are made from heat-treated manganese steel plate, offering high strength and a service life of up to ten years without deformation. The HR10-10 hanje interlocking bricks machine utilizes motors, solenoid valves, and PLC electronic components from renowned domestic and international brands, ensuring high quality, stable operation, and a long service life.
Technical Data
- Tab1
- Tab2
| Overall size | 3200*1850*3400mm |
| Power | 18.5KW |
| Shaping Cycle | 10-15s |
| Total weight | 5500kgs |
| Rate voltage | 380v/50 hz 3 phase ( Adjustable) |
| Production capacity | 2400-2600 bricks / per hour |
| Pressure | 100-500 tons ( Adjustable ) |
| Workers | 3-4 workers |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customised |
| Machinery Test Report | Provided |
| Place of Origin | Shandong |
| Video outgoing-inspection | Provided |
| Applicable industries | Building Material Shops, Construction works, Block machine |
| Belt conveyor machine | 8m length |
| Product name | HR10-10 interlocking bricks machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump, hydraulic cylinder |
HR10-10 interlocking bricks machine production output :
What high-quality accessories and advanced production technology are used in HR10-10 interlocking bricks machine?
01. Hydraform block mould
As the molding “vessel” for clay bricks, the mold of the HR10-10 interlocking bricks machine determines the dimensional accuracy and visual quality of the finished product. High-precision molds ensure that every brick produced is uniform in size, of excellent quality, and aesthetically pleasing with a smooth finish, thereby commanding higher market value. The molds for the HR10-10 hydraform interlocking bricks machine are designed by our engineers using computer-aided drafting and manufactured through processes such as wire-cut EDM and heat treatment; this results in precise dimensions and superior strength, ensuring the molds remain free from deformation or cracking even after prolonged use.
02.Super hydraulic cylinder
The core function of the HR10-10 interlocking bricks machine’s hydraulic cylinder is to convert hydraulic system pressure into immense mechanical force. By applying 100 tons of pressing force to the clay raw materials within the mold, the material is instantly compressed and shaped; this is the fundamental reason for the resulting clay bricks’ high strength and high density. The hydraulic cylinder is controlled by the PLC electrical control box and hydraulic system of the HR10-10 interlocking bricks machine price in india; it executes actions such as pressurization and boosting, ensuring uniform internal density in the produced clay bricks.

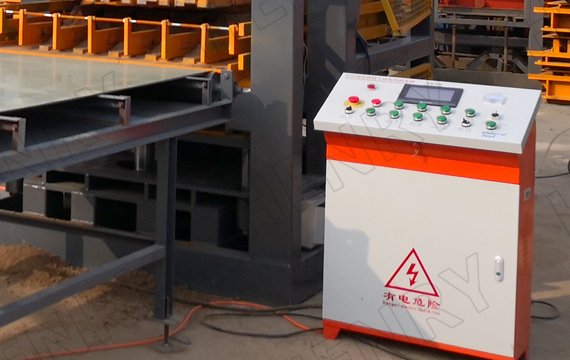

03.PLC controller box
The core function of the PLC control cabinet on the HR10-10 interlocking bricks machine is to automate the complex clay brick production process. This process encompasses operations such as material feeding, material distribution, mold closing, hydraulic forming, and demolding; the entire sequence is precisely controlled by the PLC cabinet’s operating program, ensuring accurate execution without error. The PLC control cabinet of the HR10-10 interlocking bricks machine price ensures not only the precise execution of clay brick production operations but also production efficiency and safety.
04. Solenoid valve
The solenoid valve serves as a control component in the hydraulic system of the HR10-10 interlocking bricks machine; it precisely regulates the flow direction and pressure of the hydraulic fluid, thereby driving the operation of the hydraulic cylinders. The HR10-10 hydraform interlocking bricks machine utilizes advanced proportional solenoid valves that allow for continuous adjustment of the valve opening, enabling smooth control and stepless speed regulation. These solenoid valves feature rapid response, a compact and reliable structure, and an integrated design, ensuring the stable operation of the hydraulic system.
05.Pure copper core motor Electrical Motor
The motor provides the core driving force for the HR10-10 interlocking bricks machine, powering the hydraulic system to compress clay raw materials within the mold into bricks through high-pressure forming. The motor equipped on the HR10-10 interlocking bricks machine price in bangalore operates with high efficiency and stability; it meets the IE4 high-efficiency standard, offering significant energy savings, while also running smoothly and possessing high overload capacity.
06.Thickened high-quality Q235B steel plate
For the main frame of the HR10-10 interlocking bricks machine, high-strength steel plate is essential to withstand the machine’s 100-ton hydraulic force and ensure structural integrity without deformation during long-term operation. The main frame of the HR10-10 hydraform interlocking bricks machine is constructed from Q235B thickened structural steel, offering excellent weldability and high strength; this extends the equipment’s service life and ensures that the machine remains free from deformation or cracking for at least 15 years.
What are the advantages and characteristics of HR10-10 interlocking bricks machine?
Construction workers use hydraform blocks produced by HR10-10 interlocking bricks machine to build hydraform houses
- Gallery
- Data Shete

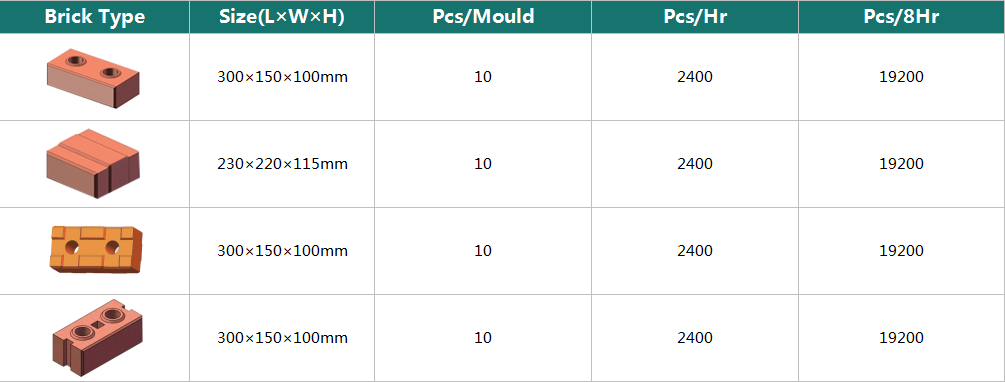

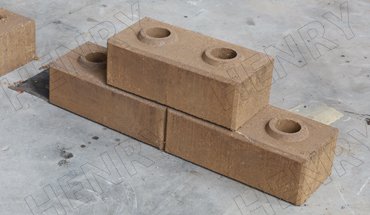

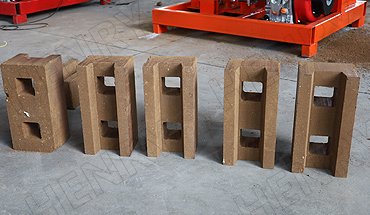

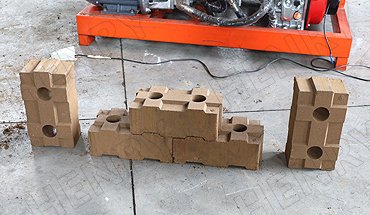

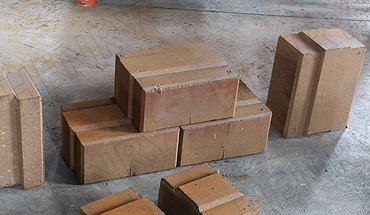

Some hydraform blocks pictures and parameters (5)
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 230*220*115mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
HR10-10 interlocking bricks machine test all kinds of hydraform blocks for customers
- How to avoid deception on choosing a clay interlocking bricks machine? Is there any reminding ?
- How to stack fresh soil interlock brick immediately produced by 200 tons automatic hydraulic interlocking bricks machine
- How to adjust hydraulic oil tank / air compressor using manual for 200tons hydraform interlocking bricks machine
- HR10-10 fully automatic interlocking block making machine test soil interlocking Lego brick with stack
Why the clay interlocking bricks produced by the HR10-10 interlocking bricks machine are stronger
First, this is due to the powerful hydraulic force of the HR10-10 interlocking bricks machine; a force of 100 tons is sufficient to compress clay bricks into a highly compact state, achieving an impressive compression ratio of 1:1.9. The resulting bricks are dense and uniform—levels of compaction and compression ratios that small-scale brick machines simply cannot match—making the bricks produced by the HR10-10 hydraform interlocking bricks machine stronger, of higher quality, and more durable.
Part of the realistic portrayal of using the Henry hydraform interlocking bricks machine
Necessary equipments for HR10-10 interlocking bricks machine (6)

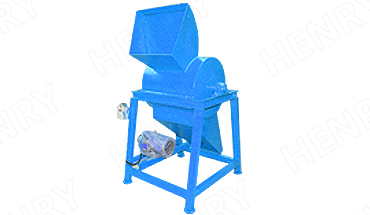

A soil crusher is for crushing large pieces into small pieces
Soil crusher machine parameters:
Overall size 1500×800×1500 mm Max. Feeding size 300×400 mm Power 5.5kw Capacity(t/day) 7-10T Total weight 320KGS
A Conveyor machine is for transferring from the crushing machine to the sieve machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
Soil sieve machine for screening raw soil into powder
Soil sieve machine parameters:
Power 0.75 KW Capacity 7-10T/day Hole diameter Diameter:4mm Total weight 350KGS dimension(mm)(L*W*H) 1500×800×1200mm A Conveyor machine is for transferring from the sieve machine to the mixer machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
The soil mixer machine is for mixing soil /clay/earth, and cement to be a good material
Soil mixing machine parameters:
Overall size 2000(L)×2000(W)×1500(H)mm Shaping cycle 2-3 mins Production capacity 24 m³/h Power 15KW Volume 1500L Total weight 1350KGS
The clay brick tester machine is to test earth block strength
Clay brick tester machine parameters :
Dimmersion 400*300*600mm weight 60kgs Max. Power 55 Mpa Test method manual pressing Cost Free
The HR10-10 interlocking bricks machine exerts 100 tons of hydraulic pressure, producing exceptionally sturdy clay bricks; consequently, many customers wonder if the machine can also be used to produce concrete bricks. However, repeated trials have yielded unsatisfactory results. Because sand and aggregates lack inherent binding properties, hydraulic pressure alone is insufficient to compact the loose raw materials, resulting in bricks with low density and poor strength, as well as difficulties during demolding. Concrete brick production requires powerful vibration to achieve proper molding; therefore, if you wish to produce concrete bricks, we recommend the QT10-15 interlocking block making machine model, which features high-intensity vibration capabilities and high output capacity.
First, the HR10-10 interlocking bricks machine boasts exceptionally high production efficiency; it operates at high speeds and delivers large output volumes, enabling continuous, stable production over extended periods, whereas small-scale brick-making machines are better suited for smaller operations. Second, the HR10-10 interlocking bricks machine price in india utilizes a PLC control system to ensure that every production step is standardized and uniform, resulting in clay bricks with highly consistent dimensions and density; in contrast, the quality of bricks produced by small-scale machines relies heavily on the operator’s experience, leading to significant quality fluctuations.
Clay bricks produced by the HR10-10 hydraform interlocking bricks machine have obtained South Africa’s Agrément certification, confirming their suitability for use in the load-bearing structures of residential buildings and validating their safety through recognition by international professional construction bodies. These clay bricks have been used globally for over 38 years, with tens of thousands of houses constructed across Africa; when produced and built correctly, homes constructed using these bricks offer a lifespan comparable to that of conventional buildings.
First, the raw materials differ; soil properties and the mix ratio of raw materials play a decisive role in the quality of clay bricks, with red soil containing a balanced proportion of cohesive particles being particularly suitable for production. Second, a scientifically sound mix ratio is crucial for ensuring the strength of the bricks. Finally, proper curing is a key step that determines the bricks’ strength; therefore, producing high-quality clay bricks with the HR10-10 interlocking bricks machine requires high-quality raw materials, a scientific mix ratio, a professional production process, and standardized curing procedures.
Using the HR10-10 interlocking bricks machine for trial production of clay bricks allows for the optimization of raw material ratios and production processes, helping customers identify the “golden ratio” for their materials. Since soil composition varies by region, testing with different mix proportions is necessary to determine the most scientifically sound and cost-effective formula. Furthermore, trial production exposes potential risks, enabling timely detection and resolution, thereby preventing greater losses during full-scale production.

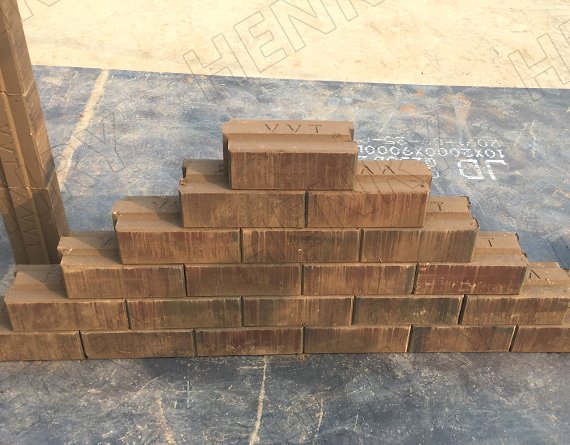

The clay bricks produced by the HR10-10 interlocking bricks machine feature a unique design: each brick has protrusions on its front and top, and corresponding grooves on its back and bottom. This allows the bricks to physically interlock—both front-to-back and top-to-bottom—forming a stable, unified structure.
