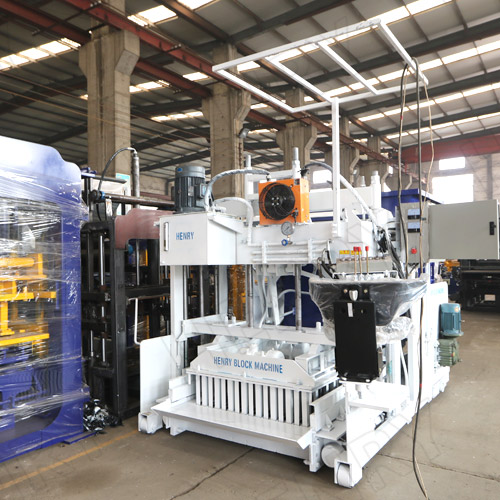

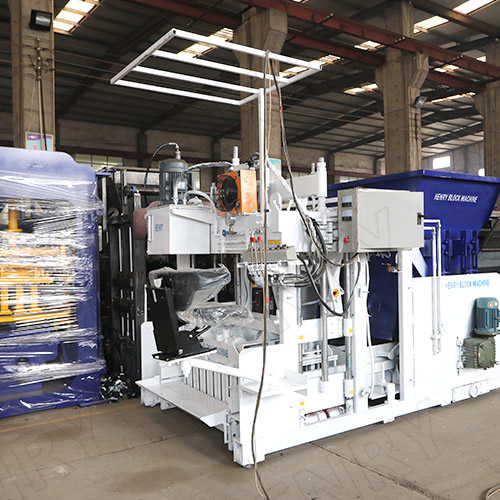

Egg layer QTM10-15 brick laying machine
QTM 10-15 mobile egg-laying concrete block making machine adopts forming vibration and hydraulic transmission. It can walk automatically or manually, move forward and backward, and has a daily output of 14,400-16,800 blocks.
Advantages:
1. Automatic control: automatic feeding, automatic pressing, and automatic movement.
2. The hydraulic pressing system is adopted, and the block density is perfect.
3. The most important thing is that there is no need for pallets, which can save tens of thousands of dollars in pallet costs every year
4. Low maintenance cost: The hydraulic pressing system ensures perfect block density, reduces frequent maintenance and adjustments, and saves time and labor costs.
5. Durable structure: The machine adopts high-quality manganese steel Q345 material and Japanese Yuken hydraulic system components to ensure long-term durability and reliable performance even in harsh working conditions.
What is the brick laying machine ?
A mobile brick-making machine is a kind of brick-making machine that can walk, which is different from a fixed-type vibration brick-making machine. Its biggest feature is that it eliminates the use of a vibrating pallet, saving a lot of pallet investment, ranging from $4,000 to $20,000. Moreover, because it can walk and move, it is convenient for users to change production sites in different places, which is convenient for users to sell bricks and start projects. We provide different models of mobile brick-making machines according to the needs of customers’ usage scenarios, including small manual brick machines of about $1,000, medium-sized brick-making machines with semi-automatic vibration molding, and large hydraulic-driven brick-making machines that produce 15 bricks at a time. However, mobile brick-making machines have corresponding requirements for the flatness of the site. The site must be neat and flat because the tires of mobile brick-making machines cannot be bumpy.
All Series of different brick laying machine for sale
According to customer needs, Henry Brick laying Machine has developed many different types of mobile brick laying machines. Their main differences are different vibration methods, different outputs, different movement methods, and different sizes.
Specification datas:
- Dimension:2550*2200*1800mm
- Weight: 1500kgs
- Rated power: 11.5 kw
- Labor numbers: 2-3 workers
- Rated pressure: 10-15 Mpa
- Vibration force: 50-70 kn
- Forming period:35-40 seconds
- 400*200*200mm hollow block 540 pcs per hour
Specification datas:
- Dimension:1800*1400*1200mm
- Weight: 800kgs
- Rated power: 5.5kw
- Labor numbers: 2-3 workers
- Vibration force: 30 kn
- pressure : 8-10 Mpa
- Forming period:40 seconds
- 400*200*200mm hollow block 350 pcs per hour
Specification datas:
- Dimension:1600*1500*1700mm
- Weight: 1200kgs
- Rated power: 6.5kw
- Labor numbers: 1-2 workers
- rated pressure： 10-12 Mpa
- Vibration force: 25-30 kn
- Forming period:45 seconds
- 400*200*200mm hollow block 300 pcs per hour
Specification datas:
- Dimension:1250*1100*1300mm
- Weight: 400kgs
- Rated power: 1.5kw / 220v single phase
- Labor numbers: 1-2 workers
- rated pressure： 10-12 Mpa
- Vibration force: 10-15 kn
- Forming period:45 seconds
- 400*200*200mm hollow block 120 pcs per hour
Specification datas:
- Dimension:1500*1400*1200mm
- Weight: 1200kgs
- Rated power: 12 HP
- Labor numbers: 1-2 workers
- rated pressure： 12-15 Mpa
- Vibration force: 25-30 kn
- Forming period:45 seconds
- 400*200*200mm hollow block 300 pcs per hour
Specification datas:
- Dimension:2550*2200*1800mm
- Weight: 1500kgs
- Rated power: 11.5 kw
- Labor numbers: 2-3 workers
- Rated pressure: 10-15 Mpa
- Vibration force: 50-70 kn
- Forming period:35-40 seconds
- 400*200*200mm hollow block 540 pcs per hour

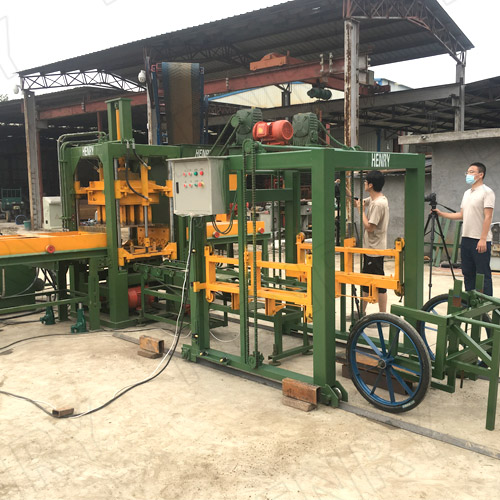

Semi-automatic brick making machine production line price for sale
In addition to the large, fully automatic brick-making machine developed, we also have a lot of semi-automatic and manual versions of brick-making machines for customers to choose from. For example, semi-automatic brick making machines, mobile block machines, egg layer concrete block machines, concrete block machines with diesel engines, hollow block machines, manual block forming machines, small block-making machines, and so on.
Specification datas:
- Dimension:3500*1600*2300mm
- Weight: 2500kgs
- Rated power: 18.5kw
- Labor numbers: 4-6 workers
- Pallet size : 850*550*20mm
- Vibration force: 45 kn
- Power voltage :415v/380v/220v
- Forming period:25 seconds
- 400*200*200mm hollow block 4 pcs per mold
QT4-30 diesel engine powered brick making machine for saleSpecification datas:
- Dimension:1750*1600*1900mm
- Weight: 1800kgs
- Rated power: 18 HP
- Labor numbers: 4-6 workers
- Pallet size : 850*550*20mm
- Vibration force: 45 kn
- Power : Diesel engine power
- Forming period:30 seconds
- 400*200*200mm hollow block 4 pcs per mold
QT40- 1 semi automatic brick making machine for saleSpecification datas:
- Dimension:1800*1500*2300mm
- Weight: 1300kgs
- Rated power: 13.5kw
- Labor numbers: 4-6 workers
- Pallet size : 850*550*20mm
- Vibration force: 35 kn
- Power voltage :415v/380v/220v
- Forming period:40 seconds
- 400*200*200mm hollow block 4 pcs per mold
QT40- 2 semi automatic brick making machine for saleSpecification datas:
- Dimension:1800*1500*1900mm
- Weight: 1200kgs
- Rated power: 10 kw
- Labor numbers: 4-6 workers
- Pallet size : 850*550*20mm
- Vibration force: 35 kn
- Power voltage :415v/380v/220v
- Forming period:40 seconds
- 400*200*200mm hollow block 4 pcs per mold
QT4-40 manual brick making machine for saleSpecification datas:
- Dimension:1600*1100*2200mm
- Weight: 1500kgs
- Rated power: 8.8 kw
- Labor numbers: 4-6 workers
- Pallet size : 850*550*20mm
- Vibration force: 40 kn
- Power voltage :415v/380v/220v
- Forming period:40 seconds
- 400*200*200mm hollow block 4 pcs per mold
QT4-30 diesel engine powered brick making machine without electricitySpecification datas:
- Dimension:1750*1600*1900mm
- Weight: 1800kgs
- Rated power: 18 HP
- Labor numbers: 4-6 workers
- Pallet size : 850*550*20mm
- Vibration force: 45 kn
- Power : Diesel engine power
- Forming period:30 seconds
- 400*200*200mm hollow block 4 pcs per mold
The trending and most popular cement brick styles

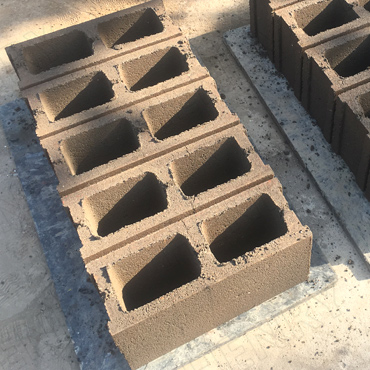

Concrete hollow blocks are a widely used building material. Their main feature is the cavity structure, so they have good thermal insulation and sound insulation. Unlike solid bricks, hollow bricks have many advantages in production and use. First, the cost of hollow bricks is lower because they are hollow in the middle, which saves a lot of raw material concrete. Secondly, hollow bricks are light in weight and relatively easy to transport and install. At present, the most commonly used sizes in the world are exterior walls: 400*200*200mm (16 inches*8 inches*8 inches), interior wall bricks: 400*150*200mm (16 inches*6 inches*8 inches), 400*100*200mm (16 inches*4 inches*8 inches), 400*125*200mm (16 inches*5 inches*8 inches) double-hole hollow bricks. Of course, there are also three-hole bricks, four-hole bricks and porous bricks, and interlocking hollow bricks, curved bricks and other bricks of different models can also be produced.
Moreover, the production process of hollow blocks is relatively simple, and the cost of raw materials is very low. First, mix cement, sand, fly ash, lime, slag, construction waste, etc., which are all waste recycling, so the cost is very low. Add water and stir into mud. Then, pour the mud into the Henry brick-making machine. The Henry brick-making machine uses strong vibration and pressure to form the shape of bricks. Finally, the bricks are dried, dried and watered to form hollow bricks with a cavity structure.
This type of hollow interlocking brick is commonly used in Ghana. Because of the front and back interlocking effect, the cement mortar will be reduced accordingly during the brick construction and wall laying process. This type of interlocking head is very special and needs to be completely cut out by wire, so the mold cost will be higher than the ordinary mold price.
6 inch cement hollow blocks6-inch hollow blocks are the most commonly used hollow bricks. Almost all brick factories will customize this set of 6-inch hollow blocks. Some countries just have different heights. 6-inch hollow blocks are generally used as interior wall bricks, such as kitchen wall construction. All functional partitions in the room are made of 6-inch hollow bricks.
5-inch cinder brick is the most commonly used hollow brick, with a size of 400*125*200mm, which is 16 inches*5 inches*8 inches. This three-hole cinder brick is more commonly used in Bangladesh. Bangladesh has just introduced a new policy to transform all clay red bricks into cement concrete bricks. This 5-inch cinder brick is currently a best-selling brick in Bangladesh.
Stock brick 224*115*53 mmStock bricks are a building material that evolved from the size of fired bricks, with a size of 224*115*53 mm. These bricks are 53 mm thick and are used as the main body of non-load-bearing walls in residential, commercial and public spaces. Currently, they are widely used in Africa, Zimbabwe, Malawi and other countries.
Curb stone solid rock blockA curbstone is used for roadsides usually made of concrete, granite or other solid materials. It is commonly used on roads, sidewalks, and parking lots 。 The most common size now is 500 long, 150mm wide, and 250 high because the curbstone is small in size and convenient for construction
Big I shape / Double T shape interlocking paversLarge I-shaped double T-shaped paving bricks are interlocking concrete paving bricks with a unique double T-shaped design. and the surface can also be produced with coarse material. it is one of the three most commonly used bricks, along with Dutch bricks and zigzag bricks.
Concrete curved hollow interlocking brickConcrete arc hollow interlocking brick is an innovative building and landscape brick, which is characterized by the interlocking of arc and hollow structures. This brick is usually used in flower walls, parks, flower beds to protect precious trees and landscape purposes
Why are brick laying machines so popular among users?
Henry block machine only needs a flat ground to build a brick factory, either a directly compacted earth ground or a 5cm thick cement ground is also sufficient, no need to pour a concrete foundation
Mobile brick-making machines, with scientific design and high-intensity vibration force, produce hollow bricks with high pressure and high density. Bricks do not need to be pressed, so the breakage rate is the lowest.
Since the bricks of the mobile brick making machine are produced directly on the ground, there is no need to invest in fiberboard, PVC pallet, wooden pallet, which saves a lot of money.
Since hollow bricks and concrete bricks are directly demoulded, produced on the ground and directly dried, general bricks can get maximum sun drying, so the maintenance cycle is significantly shortened。
Henry brick making machine has a professional digital drawing team
We have a professional drawing team that can make the most direct cleaning 3D drawings for customers to confirm according to the brick type and size of the customer. At the same time, our drawing team will also customize the brick type in our company according to customers from different countries Give corresponding suggestions, so that the processed bricks can be guaranteed to be in demand and sell well in the customer’s local market
Powerful program management ability
The computer control program of the fully automatic Cement hollow block machine is written and organized by our own programmers. The operation interface is simpler and more practical. The language can be set to the language requirements of customers in different countries; English, French, Arabic, Russian, Spanish Chinese, and other different languages can be translated into professional programming languages
Timely and patient after-sales team of 24 hours on line
Providing users with the most timely, professional, and patient after-sales service is the foundation of our company’s development. We adhere to the principle that the customer’s purchase order is completed only after the after-sales service. We say this, and we do this. Unlike other companies in the same industry, customers cannot find after-sales service after receiving the brick-making machine. We have encountered many users who bought brick-making machines from other brands and found our technicians on YouTube to help them. You can add our contact information, and we can provide you with what the customers complained about at that time.
Henry company engineer serves Mexico QT10-15 Block making machine
We will agree on the time and days for Henry engineers to start the service according to the customer’s requirements for installation and commissioning. The specific process is as follows: the buyer bears the visa fee, round-trip airfare, and daily food, accommodation, and transportation expenses of the Chinese engineer. The buyer prepares the foundation in advance according to the drawings we provide, places the brick making machine, and prepares the power supply, cement, sand, stone powder and other raw materials for brick production. In this way, Henry engineers can directly carry out the installation and commissioning of bricks when they arrive at the customer’s brick factory until they have trained several skilled technicians on all the operating skills of the brick-making machine, how to set parameters, precautions, and let the customer sign the contract.

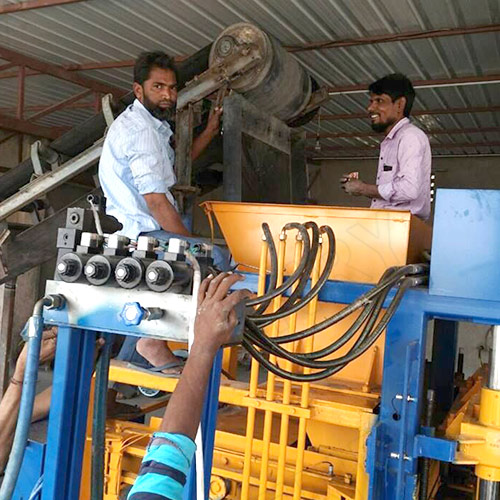

The customer's Cement hollow bricks factory has a good operating profit
The Kenyan customer is a construction company in Kenya. Its main project is to provide bricks to a famous local real estate company. The customer previously only had one semi-automatic brick making machine. They planned to expand the scale and purchased a QT10-15 production line from Henry. The customer has its own dedicated technicians, so they installed and debugged the brick making machine by themselves.
This is a customer who has been negotiating for a year. After comparing 12 other Chinese brick-making machine suppliers, he finally chose our Henry brick-making machine. He said that the reason for choosing Henry Hollow Brick Machine is not only considering the quality of the brick-making machine, but also the professionalism of the sales staff and patient communication. The most important thing is the installation and commissioning training service
Why do tens of thousands of customers choose Henry brand brick making machine as their longest-term partners?
QT4-15 automatic block machine Specification datas:
- Dimension:3850*1560*2400mm
- Weight: 4000kgs
- Rated power: 32.5kW
- Labor numbers: 4-6 workers
- Pallet size : 960*550*25mm
- Vibration force: 60 kn
- Power voltage :415v/380v/220v
- Forming period:15 seconds
- 400*200*200mm hollow block 4 pcs per mold
QT6-15 automatic brick making machine Specification datas:
- Dimension:4350*1560*2600mm
- Weight: 4200kgs
- Rated power: 35.5kw
- Labor numbers: 4-6 workers
- Pallet size : 960*700*30mm
- Vibration force: 70 kn
- Power voltage :415v/380v/220v
- Forming period:15 seconds
- 400*200*200mm hollow block 6 pcs per mold
QT4-25 semi-automatic mechanical vibration block moulding machine Specification data:
- Dimension:3500*1600*2300mm
- Weight: 2500kgs
- Rated power: 18.5kw
- Labor numbers: 4-6 workers
- Pallet size: 850*550*20mm
- Vibration force: 45 kn
- Power voltage :415v/380v/220v
- Forming period:25 seconds
- 400*200*200mm hollow block 4 pcs per mold
Specification Parameter
| Overall size | 3300*2100*2400mm |
| Weight of host machine | 5T |
| main power | 18kw |
| Vibration Force | 45Kn |
| Models of mixer | JS750 |
| Rated Voltage | 380v/220V |
| Forming Period | 15s |
Why Choose Us?
01. Steel Plate Material
We are using national standard 345# steel plate, high strength, high toughness, good wear resistance, crack resistance and oxidation resistance.

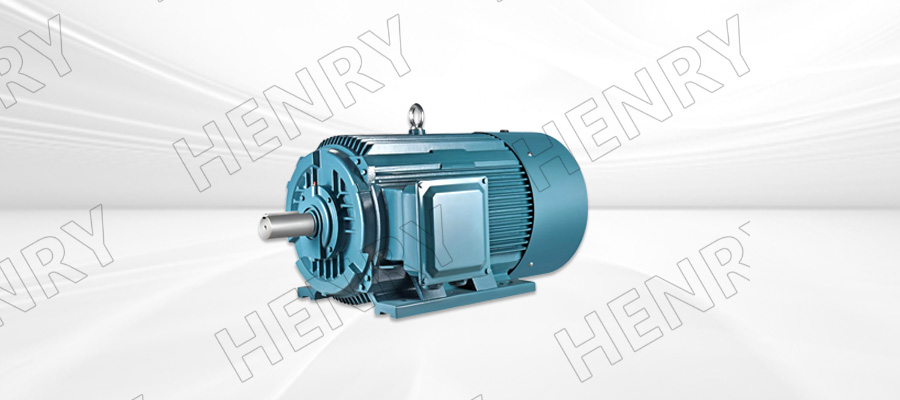

02. Electrical Motor
Henry concrete block-making machine uses An efficient motor special line guarantee of strong power and a long service life that adapts to different needs.
03. Vibrating motor
The high-frequency vibrator has high excitation frequency, large excitation force, small amplitude, large radiation range, increased concrete fluidity and plasticity, fast forming, and greatly improved quality.
04.Hydraulic Station
Good sealing performance, fast hydraulic oil return speed, long hydraulic oil circulation cycle, large oil pump energy and large flow
05.Operating handle
spring return structure stable performance The control flow is stable the output is uniform and the oil intake and oil return stop are accurate
06. Block mould
Carburizing, heat treatment, wear-resistance. Wire cutting technology, small error Carbon dioxide protection welding the welding body is firm and does not crack
Related Product
First, according to the degree of automation, the block machine can be divided into: fully automatic block machine, semi -automatic block machine, mechanical block machine and handmade brick making machine.
Second, according to the finished brick category, the brick making machine can be divided into: hollow brick machine, solid brick machine, chain brick machine, pavement brick machine, road along the stone brick machine.
Third, according to the raw material of the brick block: clay interlock brick making machine, concrete brick machine.
Fourth, according to the vibration mode: desktop vibration brick machine, mold vibration brick machine
Fifth, according to the power source, it can be divided into hydraulic system brick maker, mechanical vibration brick machine, manual brick machine
The fixed brick machine generally has a better vibration force because the vibration box or the vibrator is designed on the vibration platform, and the platform can transmit the vibration force a hundred percent to the brick to form. The vibration force is the largest.
The advantage of the mobile brick-making machine is that it can be moved, which is convenient for users to produce concrete hollow bricks at different production places to produce concrete hollow bricks. It can fully use local raw material resources to reduce the cost of raw material transportation. At the same time, the most important thing is that the most important thing is that the most important thing is that Save the investment cost of pallets。
Before buying a Henry brick making machine, users who are not familiar with it usually compare the brick making machine products of other suppliers. They usually recommend the brick making machine with hydraulic system because the bricks produced are of better quality and stronger. This view is correct. However, the brick making machine with hydraulic system is equipped with a vibration system, that is, a vibration system is provided on the vibration platform of the brick making machine. Many customers will pay attention to the power of the compaction cylinder or the downward pressure, thinking that the greater the pressure of the cylinder, the stronger the brick will be. In fact, this argument is wrong. In fact, the compaction cylinder of the upper mold only plays an auxiliary role. If the pressure is too high, it will lead to insufficient vibration force below, resulting in poor quality of bricks.
The fuel tank capacity is 10-15 liters. Generally, a full tank of fuel can be used for 5 hours under normal power, and the fuel consumption is about 3 liters per hour. The diesel engines we use are all the most famous Chinese brand Changchai diesel engines, with high power and low fuel consumption.
1. Daily inspection and maintenance
Fuel system:
Ensure that the fuel is clean, free of impurities and moisture. Check the fuel filter regularly and replace it in time.
Check whether the fuel line is leaking or damaged.
Lubrication system:
Check the oil level regularly and keep it within the specified range.
Replace the engine oil and oil filter on time.
Check the quality of the engine oil and replace it in time if it is deteriorated or contaminated.
Cooling system:
Check the coolant level, keep it within the appropriate range, and add antifreeze.
Clean the water tank regularly and check the working condition of the water pump and fan.
Check whether the cooling system pipeline is leaking.
Intake system:
Check and clean the air filter regularly and replace it if necessary.
Ensure that the intake pipeline is leak-free and blocked.
Exhaust system:
Check the exhaust pipe regularly to ensure that there is no leakage and carbon deposits.
Ensure that the exhaust system is firmly connected.
2. Regular maintenance
Every 100 hours of operation or every month:
Check and tighten the connecting bolts of each component of the diesel engine.
Check the tension of the belt and adjust or replace it if necessary.
Every 500 hours of operation or every three months:
Replace the engine oil and oil filter.
Clean the fuel filter and replace it if necessary.
Every 1000 hours of operation or every six months:
Replace the air filter.
Check and adjust the working condition of the fuel injectors and fuel pump.
Clean the cooling system, check and replace the antifreeze.
