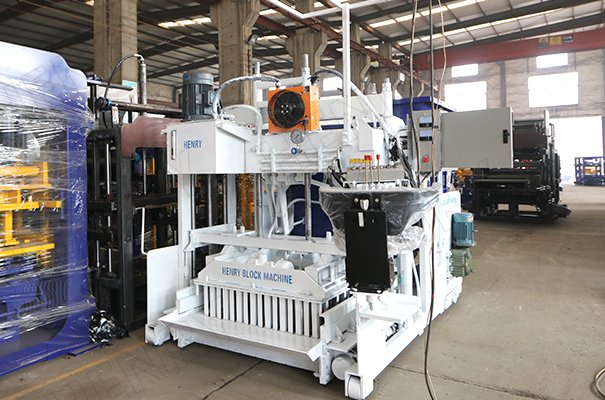

An electric mobile block machine 40-3a developed and designed by HENRY company in combination with the latest German technology.
1.Mobile block machine 40-3a adopts German advanced technology and adopts electric cabinet control, which is very simple and convenient to operate, small in size, reasonable in structure and stable in quality.
2.Mobile block machine 40-3a is of high quality, made of domestic high-quality thickened steel, and the electro-hydraulic components are made of Taiwan Province, German and other brands, with fine workmanship and high quality.
3.The body size of Mobile block machine 40-3a is 1750*1400*1300mm, the weight is 800kgs, and the power is 5.2kw. It is equipped with two vibrators, which can provide 35.5Kn of vibration force, so the produced concrete blocks are firm and high in strength.
4.Mobile block machine 40-3a is movable, and the finished concrete blocks fall directly on the ground without supporting plates. It can continuously produce concrete blocks with large output, and it can produce four concrete blocks of 400*200*200mm in 30s.
5.The mold types of Mobile block machine 40-3a can be customized according to customer’s needs, and different types of concrete blocks can be produced according to different molds to meet customers’ diversified market demands.
What are the advantages of the electric cabinet equipped with mobile block machine 40-3a?
The electric cabinet equipped with mobile block machine 40-3a can realize centralized control of the concrete brick making machine, and can set up programs to improve the convenience of machine operation. Customers can also set up programs according to their own production requirements, which is very convenient.

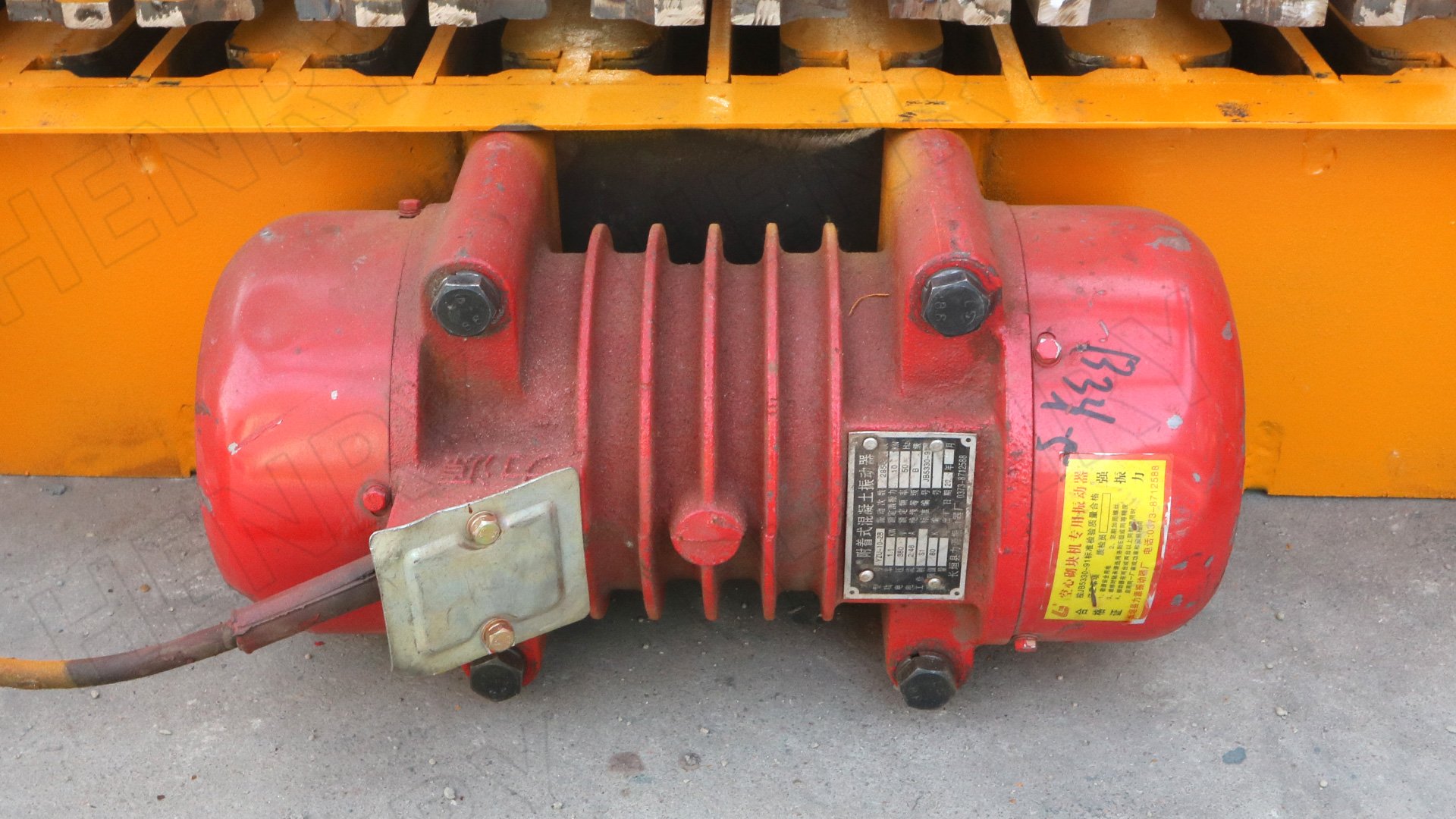

What role can vibrator play in mobile block machine 40-3a?
The vibrator can apply vibration force to the concrete raw materials in the mold of mobile block machine 40-3a, so that the concrete raw materials can be filled tightly and the shape of the brick can be ensured to be complete. HENRY company has maintained long-term cooperation with the well-known domestic vibrator brand “LIYUAN”, which ensures the quality of vibrator products and is very durable.

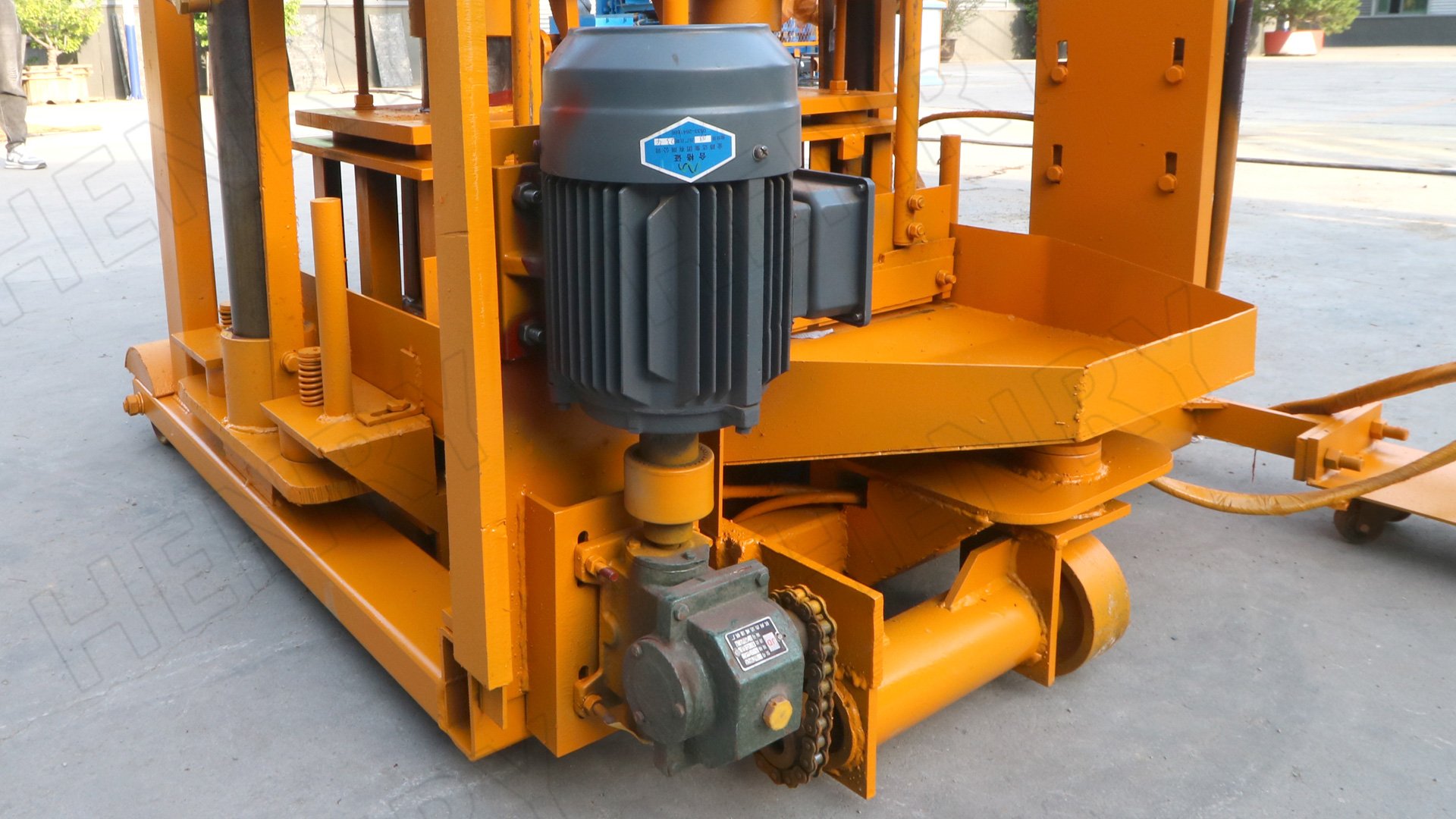

Why should mobile block machine 40-3a be equipped with walking motor?
Walking motor, as its name implies, can make mobile block machine 40-3a move, and its power is 1.5kw. The motor is equipped with a reducer below, and the wheels of the brick-making machine are connected by a chain, thus realizing the movement of the block maker machine
What benefits can wheels bring to mobile block machine 40-3a?
Wheels can make mobile block machine 40-3a move freely, and the combination of walking motor and wheels can be described as a golden partner. Workers can easily control the advance and movement of the concrete brick making machine through the electric control box, which is very flexible and convenient.
Germany Technology Electric Power mobile block machine 40-3a
HENRY can also provide other mobile brick making machines with power and other brick making machines with price and output.
Mobile block machine 40-3a technical parameters and capacity
- Technology datas
- Mobile block machine 40-3a Theoretical Production Capacity
| Overall Size | 1750*1400*1300mm |
| Vibration force | 35.5Kn |
| Mould period | 30s |
| Pallet size | no need |
| Power of host machine | 5.2kw |
| Total weight | 800kg |
| Voltage | 220/380v |
| Worker | 1-2 Worker |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
Get More Operation Videos
HENRY will explain the correct operation steps of this mobile block machine 40-3a for you.
1. Please make sure that your mobile block machine 40-3a, conveyor belt and mixer are connected with a suitable power supply and the power supply is stable.
2. Prepare raw materials needed to produce bricks, such as sand, cement, aggregate, water, etc.
3. Put raw materials into the lower mold of mobile block machine 40-3a.
4. Vibrate the lower mold box to make the raw materials sink into the mold box, and distribute the raw materials more evenly with a rake.
5. Eliminate redundant raw materials.
6. Press the button to make the mold on the mobile block machine 40-3a move forward and fall into the mold box.
7. The mold box vibrates again for 8-10 seconds.
8. Lift the lower mold to drive the upper mold and move the mobile block machine 40-3a forward. The produced bricks will be displayed in front of you.
This mobile block machine supply 15 Mpa force to hydraulic compress block and also at the same time , it has vibrating motor to provide vibration force to form concrete blocks at same time . So concrete blocks made by this machine is very very good
I want to confirm something please
Are you saying this machine presses each concrete block with 10 tons of pressure every time ? yes
Mixture of 1 bag of cement and aggregate will be around 450-550kg
Q345 steel . Machines use 7mm thickness and mixer use 9mm thickness
