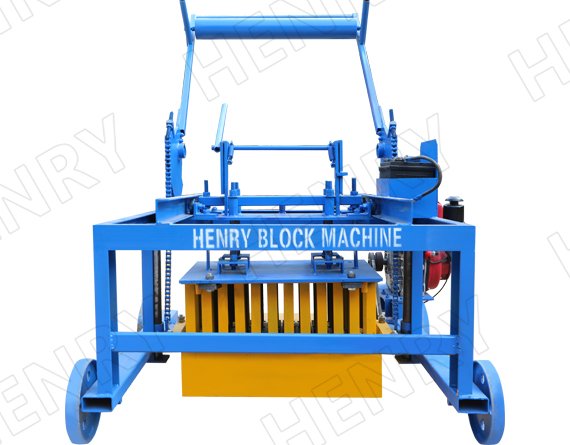

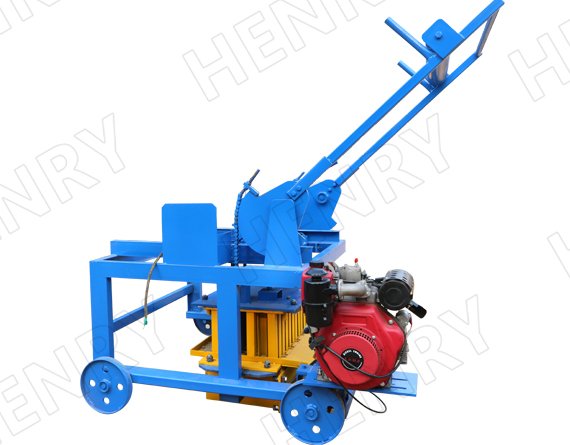

Factory price diesel-powered HENRY QMD4-45 mobile block machine
Taking a diesel engine as power and mobile design are the biggest advantages and selling points of the QMD4-45 mobile block machine. In this way, when the QMD4-45 mobile block making machine produces concrete blocks, it no longer needs electricity and power facilities, which can ensure that concrete blocks can still be produced normally even in backward rural areas without electricity.
Moreover, the QMD4-45 mobile block machine adds a wheel design, which is more flexible and convenient, and it is very convenient to move and transport. Moreover, in the process of producing concrete blocks, the QMD4-45 mobile concrete block making machine directly produces concrete blocks on the ground, so it is also called egg laying block machine.
Four reasons why HENRY recommended customers to choose QMD4-45 mobile block machine
Compared with the power version of QMY4-45 movable block machine, QMD4-45 egg layer block machine for sale uses domestic high-end quality diesel engines, which is also the biggest difference between them. The diesel engine is very powerful, durable, and not easy to be damaged, which saves power facilities such as wires, has stronger flexibility, and lower production and operation costs.
The overall size of the QMD4-45 egg laying block making machine price is 1450*1400*1200mm, and its weight is about 700 kg. The small equipment is more flexible and easy to operate, and one worker can complete the production. The QMD4-45 egg laying block machine is equipped with a 12HP diesel engine, which has sufficient power, stability, and strong adaptability, and the production cycle is 45 seconds.
In the working process of the QMD4-45 egg layer block machine for sale, concrete hollow blocks are directly produced on the ground without using pallets, which means that customers do not need to buy fiber pallets when purchasing the QMD4-45 egg layer block making machine, which can save a sum of money.
The production cycle of the QMD4-45 egg layer feed recipe is 45 seconds, and five 6-inch concrete hollow blocks with 400*150*200mm can be formed at a time. Through calculation, we can draw the conclusion that QMD4-45 egg layer feed ingredients can produce 3,600 pieces of 6-inch concrete hollow blocks with 400*150*200mm after working for 8 hours.
Technical Data
- Tab1
Specification Parameter
| Overall size | 1450×1400×1200mm |
| Power | 12HP |
| Shaping Cycle | 45 seconds |
| Pallet size | No need pallets |
| Vibration frequency | 4000r/m |
| Electrical source | 380V/50Hz |
| Total weight | 700KG |
| Worker | 1-2 Worker |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
| Raw material | Fly Ash Cement Sand Concrete |
| Place of Origin | Shandong |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | QMD4-45 mobile block machine |
| Warranty of core components | 1 year |
| Applicable industries | Building Material Shops,Construction works |
QMD4-45 mobile block machine production capacity:
What advanced technologies and accessories are used to produce QMD4-45 mobile block machine?
01.Well-known brand diesel engine
The diesel engine provides power for the QMD4-45 mobile block machine, and drives it to move, vibrate, and form. Nowadays, after a long period of production and research, and development, the technology of diesel engine is very mature, and the quality is guaranteed. QMD4-45 mobile block making machine is matched with a domestic high-quality diesel engine, which has high thermal efficiency, full combustion, and low fuel consumption, and is very efficient and reliable.
02.Concrete hollow block mould
The die size of the QMD4-45 mobile block making machine determines the size of the produced concrete hollow block, so the die plays an important role in the process of producing concrete hollow block. Moreover, the QMD4-45 mobile concrete block making machine can produce concrete blocks with different sizes, including hollow blocks, pavement bricks, kerbs, and so on.

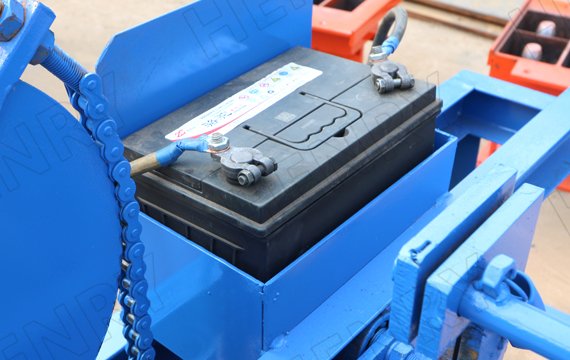

03."LUOTUO" domestic famous brand battery
When the QMD4-45 egg laying block machine starts the diesel engine, the battery will provide starting current to ensure the smooth start of the QMD4-45 egg layer block making machine, and the battery can also provide power support for the electrical system of the QMD4-45 mobile block machine to ensure the normal operation of the QMD4-45 mobile block making machine. The battery equipped with the QMD4-45 mobile concrete block making machine adopts advanced production technology, with long cycle life, stable power output, strong adaptability to high and low temperatures, and high safety.
04.Foot-stepping vibration switch
The foot-stepping vibration switch is designed by engineer HENRY for the QMD4-45 mobile block machine. It is convenient for workers to use their feet to control the vibration switch when using tools to fill concrete raw materials in the mold. The operation is very simple, and it is helpful to improve the production efficiency of the QMD4-45 mobile block making machine.
05.Solid wheel design
The newly added wheel design of the QMD4-45 egg laying block machine enhances the mobility and flexibility, and can move the production position very conveniently, which is quite different from the traditional fixed concrete brick making machine. The wheels equipped with the QMD4-45 egg layer block making machine are made by cutting and welding steel plates, which are very strong and have a strong bearing capacity.
06.High quality industrial paint
Engineer HENRY chose high-quality industrial paint for the QMD4-45 mobile block machine. The high-quality paint not only has beautiful color and won’t lose paint for a long time, but also has very important anti-rust and anti-corrosion functions, which is of great significance for protecting the frame of QMD4-45 mobile block making machine and prolonging its service life. Customers can also choose the paint color according to their own preferences after placing an order.
What are the main advantages of the QMD4-45 mobile block machine
Workers build a house with Concrete hollow blocks at the construction site
- Real pictures from the scene
Some concrete blocks pictures and parameters (6)
Size:400×200×200mm
4 pieces per mould
360 pieces per hour
2880 pieces per 8 hours
Size:400×150×200mm
5 pieces per mould
450 pieces per hour
3600 pieces per 8 hours
Size:400×100×200mm
7 pieces per mould
630 pieces per hour
5040 pieces per 8 hours
Size:200×163×60mm
8 pieces per mould
720 pieces per hour
5760 pieces per 8 hours
Size:200×100×60mm
14 pieces per mould
1260 pieces per hour
10080 pieces per 8 hours
Size:225×112.5×60mm
12 pieces per mould
1080 pieces per hour
8640 pieces per 8 hours

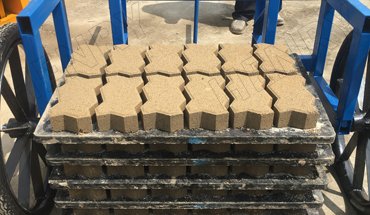

QMD4-45 mobile block machine can produce different block types
How to determine the brick type when customers buy QMD4-45 mobile block machine?
QMD4-45 mobile block machine can produce bricks of various sizes, and only needs to replace the corresponding molds. Therefore, before placing an order for the QMD4-45 mobile block making machine, customers need to confirm the type and size of the mold they need to order. Customers can choose several best-selling brick types in the local market or make improvements according to their own needs. Our engineers will design drawings according to customers’ needs and finally determine the ideal brick type of customers.

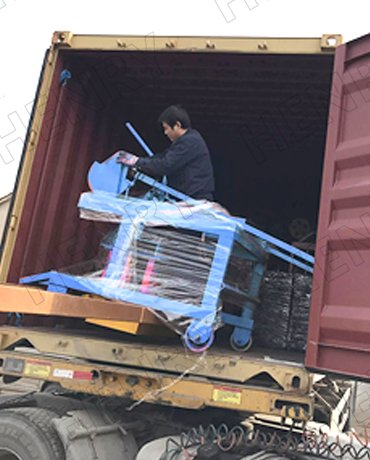

Presentation on customer visit and QMD4-45 mobile block machine container delivery
QMD4-45 egg laying block machine What other supporting equipment is needed for a complete production line (3)
Overall size 1450×1400×1200mm Power 12HP Shaping Cycle 45 seconds Pallet size No need pallets Vibration frequency 4000r/m Electrical source 380V/50Hz Total weight 700KG Worker 1-2 Worker Block mould One set for free Warranty of core components 1 year
Mixing Motor Power 5.5kw Production Capacity 16m³/h Feed Capacity 350L Efficiency ≥15m³/h Rotating Speed Of Stirring Blade 35r/min Maximum Particle Size Of Bone Particles 8mm/6mm Reducer Model 315
Size 2400*1000*1300mm Power 2.2KW Voltage 12V*4pcs Working hours 10 hours Operation Electro hydraulic Advantage Strong climbing ability
The answer is that the operation of the QMD4-45 mobile block machine is very simple. First of all, HENRY will test the finished QMD4-45 mobile block making machine to ensure that it can work normally, and try not to disassemble the accessories before delivery, so that the customer can start the diesel engine after receiving the QMD4-45 mobile concrete block making machine.
In addition, we will provide customers with a very complete paper manual and electronic manual, and introduce the use and maintenance methods of the QMD4-45 movable block machine in detail. We also have a video about the operation of the QMD4-45 egg laying block machine, so that customers can learn how to operate the QMD4-45 egg layer block making machine more intuitively. In addition, HENRY has an after-sales service team composed of several engineers, who will serve customers all the time until they fully master the use of the QMD4-45 mobile block machine.
First, engineer HENRY will draw the drawings of QMD4-45 mobile block machine and the mold according to the customer’s requirements, and then the workshop workers will cut the Q235 steel plate according to the dimensions marked in the drawings. The cut steel plate will be welded by argon arc welding, and then polished and polished after the overall frame of the QMD4-45 mobile block making machine is welded. Workers will install diesel engines, batteries, and other accessories, and finally, our engineers will test the finished QMD4-45 mobile concrete block making machine. After the tested products are qualified, the QMD4-45 movable block machine will be successfully produced.
QMD4-45 mobile block machine can produce various sizes and shapes of concrete hollow blocks, including 8-inch concrete hollow blocks, 6-inch concrete hollow blocks, 4-inch concrete hollow blocks, porous concrete blocks, etc., and can also produce various brick types such as solid bricks, colored pavement bricks, and kerbs.
If the customer’s order is only a hollow brick mold, the delivery time is usually 7-10 days. If there is a pavement brick mold, the delivery time will be slightly extended, because the pavement brick mold needs to go through advanced production processes such as wire cutting and heat treatment, and the delivery time is generally 10-15 days. If the customer is in a hurry, we can also advance the order of the QMD4-45 mobile block making machine and give priority to production.
First of all, it is necessary to analyze the cost of concrete bricks produced by the QMD4-45 mobile block making machine, including the cost of concrete raw materials, the cost of workers, and the cost of factory maintenance and management. Secondly, we need to investigate the local market, understand the price of local concrete bricks, adjust our own pricing according to competitors’ pricing, and finally, we can occasionally offer discounts to attract customers.
HENRY has always maintained long-term cooperation with famous diesel engines in China, such as “CHANGCHAI” and “WEICHAI”, with first-class quality, low energy consumption, and stable power. The power of a diesel engine equipped with a QMD4-45 mobile block making machine is generally 12 horsepower.
The QMD4-45 mobile concrete block making machine consumes approximately 1.5-2 liters of diesel fuel per hour. Diesel engine fuel consumption is influenced by various factors, including engine load, engine speed, diesel fuel quality, and operating environment. Generally, higher engine load and speed result in higher fuel consumption. Conversely, higher-quality diesel fuel leads to higher combustion efficiency and lower fuel consumption. The ambient temperature and humidity also affect the QMD4-45 movable block machine’s fuel consumption.
The biggest advantage of the QMD4-45 mobile block machine is its portability, which allows for easy relocation of production sites without being limited by the size of the production area. The QMD4-45 mobile block making machine can produce concrete bricks directly on the ground, saving not only fiber pallets but also eliminating the need for transportation, in-situ curing is sufficient, saving significant manpower and resources.
