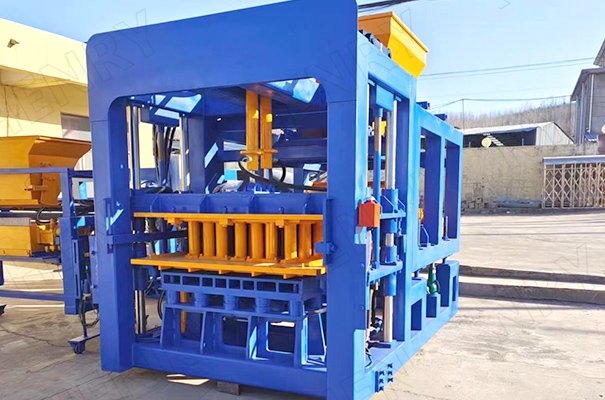

QT4-18s full automatic hydraulic cinder block machine
1. QT4-18S is The cheapest full-automatic concrete brick-making machine; with a small investment, it can earn back the investment money within 3 months .
2.Henry QT4-18S adopts PLC intelligent operating system, which we take use of Siemens displaying screen ,Siemens PLC core component ,which is simple and convenient to operate. Electronic components as Circuit breakers, air switches, relays, all from Schneider high-quality brand parts, and the response is accurate and fast, which ensures the operation of the whole production line.
3.QT4-18S is made of high-quality steel plate with strong quality. #345 steel standard quality in China. The motor, solenoid valve, hydraulic oil pipe, and other parts also adopt famous domestic brands, which greatly prolongs the service life of the machine and reduces the maintenance cost.
4.It can produce 7200 pieces of 400*150*200mm concrete hollow blocks in 8 hours every day, and the output is considerable. You can also change the different block mold to produce different size of concrete bricks with other sizes such as 400*200*200mm, 400*100*200mm and even the paving tile bricks.
5.The mold of QT4-18s cinder block machine adopts the most advanced wire cutting technology in the industry, which is very firm and does not deform. The error accuracy can be controlled within 20 wires
What kinds of equipment does QT4-18s cinder block machine come with in the production process?
1.JQ500 Concrete pan mixer machine with 1.5m diameter.
2.6m long conveyor machine v style conveying
3.Block stacker machine ( single stories stacking)
4.3Ton Diesel Powered Forklift
Which concrete mixer can meet the production needs for QT4-18s cinder block machine?
1. The JQ500 concrete mixer can mix 120000kg of concrete materials every day, and the QT4-18s cinder block machine needs about 100000kg of materials every day. which is calculated within eight hours.
2. The JQ500 concrete mixer adopts a well-known domestic motor (shanbo brand has more than 80 years history), full of power, very uniform mixing, fast speed, and high efficiency.
Why is the conveyor machine a necessary equipment for QT4-18s automatic production line?
Conveyor machine can send the materials stirred by JQ500 concrete mixer to the hopper of QT4-18s cinder block machine quickly, uniformly, continuously and stably. with saving labor to feed concrete material instead of hands.
Why should the QT4-18s automatic concrete production line be equipped with a stacking machine?
1.The brick stacking machine can quickly put the concrete bricks formed and demoulded by the 4-18s cinder block machine in order, and reduce the damage of concrete bricks caused by workers’ operational mistakes.
2.The brick stacking machine can adjust the lifting height of concrete bricks with different sizes through sensors.
What role does forklift play in automatic concrete cinder block production ?
1.The forklift powered by 3 tons of diesel is very powerful. Simple, practical and easy to maintain.famous brand is Heli .
2.Flexible operation, easy to learn and use.
QT4-18s is the most popular automatic concrete cinder block making machine production line with the least investment.
Henry has designed and developed many series of automatic cinder block-making machines with different prices, different outputs, and different pressures for you to choose from. QT10-15 cinder block machine, QT8-15 cement cinder block machine,QT6-15 concrete cinder block machine,QT4-15 hydraulic cinder block machine,QT4-25 vibration block machine, and QT4-24 semi-automatic block machine
Display of main technical parameters of QT4-18s cinder block machine
- Technology datas
- Block making machine production output:
| Overall Size | 3500*2100*2300mm |
| Shaping Cycle | 15-18 seconds |
| Main Power | 23.5kw |
| Vibration Force | 35.5KN |
| Pallet Size | 850*550*20mm |
| Mixer | JQ500 |
| Total Weight | 3600kg |
| Worker | 3-4 Worker |
| Block mould | One set for free |
| Raw material | Concrete ( Coal cinder, cement, sand, stones, etc. ) |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
Get More Operation Videos
How to choose the most suitable concrete block making machine for yourself ?
1. According to the types and output of concrete bricks required by customers and the local market demand. Henry can provide block making machines with different output, as well as molds of different brick types such as concrete hollow bricks, solid bricks and pavement bricks for customers to choose from.
2. Based on the client’s investment budget , Henry Block Machine would also like to supply the most professional suggestion on model choosing because HENRY Block machines have ranges of different prices for different grades of buyers.
2. The quality and durability of the concrete block-making machine. High-quality, good-quality concrete block making machine runs more stably, with greater vibration force and pressure, the service life of the machine is longer, the maintenance cost is lower, and the produced concrete bricks are of higher quality and durable. Greatly reduce the consumption and waste of raw materials caused by unqualified finished bricks.
3. The degree of automation of concrete block making machine. Concrete block making machines include manual block making machine, semi-automatic block making machine and full-automatic block making machine. The higher the automation of the concrete block making machine, the simpler the operation, the higher the production efficiency of the whole production line, and the higher the compactness and compactness of the concrete bricks produced.
4. The reputation and after-sales service of the manufacturer of concrete block making machine. Reputable block making machine manufacturers have very strict quality control over their products, ensuring that every machine they produce is of high standard. At the same time, it has a strong and professional technical team and R&D team, and adopts the latest and top-notch production and welding technologies to continuously improve and enhance the performance of the concrete block making machine. A perfect after-sales service team can give answers to customers’ questions at the first time, and provide professional solutions so that customers have no worries.and also all the wearing parts and spare parts are available .
1. Hydraulic station motor: 7.5kw
2. Vibration motor: 5.5kw*2 pieces
3. Feeding material motor: 3kw
4. Brick output motor: 1.5kw
5. Conveyor belt motor: 1.1kw
6. Concrete mixer: 11kw
7. Block stacking machine motor: 2.2kw * 2 pieces
The advantage is, of course, that the cost of the entire brick-making machine is reduced. The disadvantage is that it cannot prevent the raw materials from solidifying prematurely, which is a greater load test on the stirring system and stirring motor.
One worker must load the mixer, control the conveyor belt, need one worker to watch the host cinder block machine in case any operation issues come suddenly, and one worker feeds the pallet. If the customer’s factory has a forklift, only one worker is needed to carry the bricks. If there is no forklift, two workers are needed to carry out the bricks.
