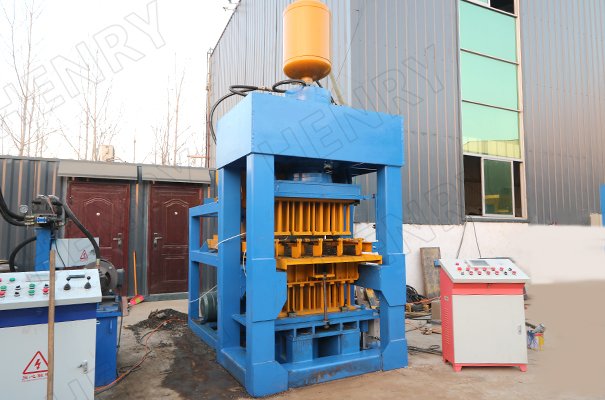

If you want to open a large clay brick factory and pursue high-quality clay bricks, then 300tons HR10-10 mud brick making machine is your best choice.
1.The 300tons HR10-10 mud brick making machine is an enhanced version of the common HR10-10 adobe brick machine, and the hydraulic pressure is increased to 300tons by HENRY engineer (100tons-500tons can be customized). Strong hydraulic pressure can press clay bricks very firmly with high strength,the service life is greatly prolonged
2.The output of 300 tons HR10-10 Mud Brick Making Machine has reached an amazing level on the premise of ensuring the production of high-strength clay bricks. Ten hydraform bricks with 230*220*115mm can be formed in 10-15s, and 19,200 automatic brick can be produced in 8 hours, which can fully meet the production needs of a large brick factory.
3.The mold of 300tons HR10-10 bricks making machine can be replaced. brick maker can produce different clay bricks after replacing the mold. HENRY can provide customers with a video tutorial on mold replacement. HR10-10 clay brick making machine can produce large two-hole clay brick, CLC clay brick, Hydraform brick, U-shaped brick, half brick, etc. by changing the mold, and can also customize the mold according to customer’s needs.
4.HR10-10 clay brick moulding machine has a size of 3200*1800*3500mm and a weight of 6500kgs. It is equipped with super power of 22kw, with a hydraulic pressure of 300 tons and a voltage of 220v/380v/415v (which can be customized).Undoubtedly, this is a very powerful clay bricks manufacturing machine
5.Because HR10-10 clay making machine is equipped with super power and hydraulic pressure, it can adapt to clay raw materials from different countries and regions. The clay raw materials are molded under the strong hydraulic pressure of 300 tons, and the molded clay brick has high density, no cracking and deformation, uniform size and convenient unified sales
What are the advantages of HR10-10 clay machinery equipped with 300tons hydraulic pressure?
300 tons HR10-10 mud brick making machine is equipped with 300 tons of hydraulic pressure, which is the best partner of HENRY’s engineers after accurate calculation. This can ensure that every clay brick produced can be subjected to strong and uniform pressure, so that the clay brick produced in this way has stronger bearing capacity, longer service life and stronger market competitiveness.
Why is the PLC electric cabinet the brain of HR10-10 brick making machine for sale in usa?
The PLC electric cabinet is the core control system of 300tons HR10-10 clay brick making equipment. bricks maker can realize the automatic production of clay bricks by controlling the PLC electric cabinet, which can realize the automation of mixing, transporting raw materials, blanking, distributing, hydraulic pressure, molding, demoulding, brick discharging and palletizing. The PLC electric cabinet has automatic mode and manual mode, which is convenient for bricks maker to choose.
Why is the 300 tons HR10-10 mud bricks machine equipped with a super-large motor of 22kw?
HR10-10 machine that makes bricks need to be equipped with high-power motors to meet the large-scale production of clay bricks, improve the production efficiency of clay bricks and ensure the stability of production equipment. The hydraulic pressure of HR10-10 brick making tools has reached 300 tons. Only a high-power motor can ensure the pressure and flow of hydraulic oil, ensure the molding quality of clay bricks, and avoid the damage of clay bricks caused by insufficient power.
What advanced processing technology does HR10-10 clay bricks manufacturing machine price adopt?
The 300tons HR10-10 clay machinery equipped adopts a steel plate with thickened high-strength carbon steel, which makes the fuselage stronger and improves the wear resistance. Thickening treatment is adopted in the bracket, base and other places. Regarding the welding process, HENRY also adopted the domestic advanced carbon dioxide shielded welding, and the PLC electronic control system chose Siemens brand, which can realize accurate operation, rapid response and not easy to be damaged.
We can also provide mud brick making machines with different hydraulic pressures and capacities

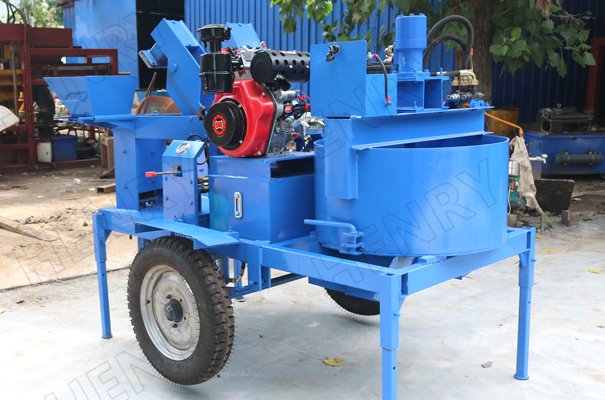

According to the different requirements of customers for hydraulic pressure, output and price, HENRY can provide fully automatic mud brick making machine, semi-automatic brick making machine, movable clay brick moulding machine, diesel power clay making machine and so on
Technical parameters and output display of 300 tons HR10-10 mud brick making machine
- Technology datas
- 300 tons HR10-10 mud brick making machine production output
| Overall size | 3200*1800*3500mm |
| Power | 22KW |
| Shaping Cycle | 10-15s |
| Total weight | 6500kgs |
| Rate voltage | 380v/50 hz 3 phase ( Adjustable) |
| Production capacity | 2400-2600 bricks / per hour |
| Pressure | 300 tons ( Adjustable ) |
| Workers | 3-4 workers |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
| Place of Origin | Shandong |
| Video outgoing-inspection | Provided |
| Applicable industries | Building Material Shops, Construction works , Block machine |
Get More Operation Videos
How to operate this 300 tons HR10-10 Mud brick making machine correctly? Next, HENRY will explain it to you in detail.
1.Firstly, the raw materials of HR10-10 mud brick making machine need to be prepared. The crushed and screened clay, water and cement should be put into JQ750 mixer and stirred for 3-5 minutes, and the raw materials should be thoroughly stirred evenly.
2.Pass the evenly stirred clay raw materials through a 6m or 8m conveyor belt, and transport the clay raw materials to the hopper above HR10-10 clay brick making machine at a constant speed.
3.Through the feeding system and distribution system of 300 tons HR10-10 clay brick moulding machine, the clay raw materials in the hopper of HR10-10 clay bricks manufacturing machine are quickly filled into the mold to ensure full and uniform filling.
The answer is 7-10 days. After we received the customer’s order, the engineering team of HENRY Company began to prepare the raw materials of HR10-10 mud brick making machine, including steel plates, motors, hydraulic oil pipes and lines. Then the steel plate is cut, welded, assembled with mechanical parts, derusted and anticorrosive, painted, and finally tested. So a perfect 300 tons HR10-10 mud bricks machine is produced.
The answer is of course. Customers can customize the color of HR10-10 clay brick making machine according to their own preferences. After placing an order, customers can note the color of the brick making machine and provide a color card. Our professional painting workers will paint HR10-10 clay brick moulding machine according to the color card. After painting, it will take 1-2 days to dry.
We will provide the customer with the manual and video teaching of HR10-10 clay bricks manufacturing machine. If the customer still has concerns, HENRY can send professional engineers to teach on the spot until the customer is taught, so you should not have any concerns at all.
