HR2-25 earth brick machine is a small clay brick machine with the highest cost performance, diesel power and hydraulic pressure.
1.HR2-25 earth brick machine is a small hydraulic clay brick machine developed and designed by HENRY Company. Because of its advantages of low price, simple structure, easy operation and high production efficiency, it is popular all over the world and deeply loved by African customers such as Kenya, Congo, Ghana, Nigeria and so on.Get unanimous praise
2.HR2-25 earth brick machine adopts hydraulic pressing technology, which can apply 10 tons of hydraulic pressure to the clay material in the mold, which not only can quickly produce clay blocks, but also can ensure the high density and high strength of clay blocks, which is very strong. The surface is smooth and very beautiful.
3.HR2-25 earth brick machine can produce different clay blocks by using different molds. We can recommend the popular brick type in the customer’s country or region to produce molds, and we can also customize molds according to the customer’s own needs.
4.The size of HR2-25 earth brick machine is 1500*800*1600mm, and the weight of the whole machine is 500kgs, which is small in size, small in occupied area and convenient for transportation. The diesel engine can provide 10HP power, which is powerful.
5.HR2-25 earth brick machine is easy to operate. One person can complete the production of clay blocks, and two 300*150*100mm clay blocks can be produced in 25s, and the daily output can reach 2880 pcs/8Hr. When producing clay blocks, adding about 5% cement into clay raw materials can make clay blocks more durable.
Why does HR2-25 earth brick machine choose diesel engine as power source?
The diesel engine solves the problem of no electricity or unstable electricity supply in remote rural areas and construction sites, and makes the HR2-25 earth brick machine more flexible. The diesel engine has strong power and stable output, which is suitable for long-term production. Only 7-8L diesel oil is needed every 8 hours, and the production cost is low.

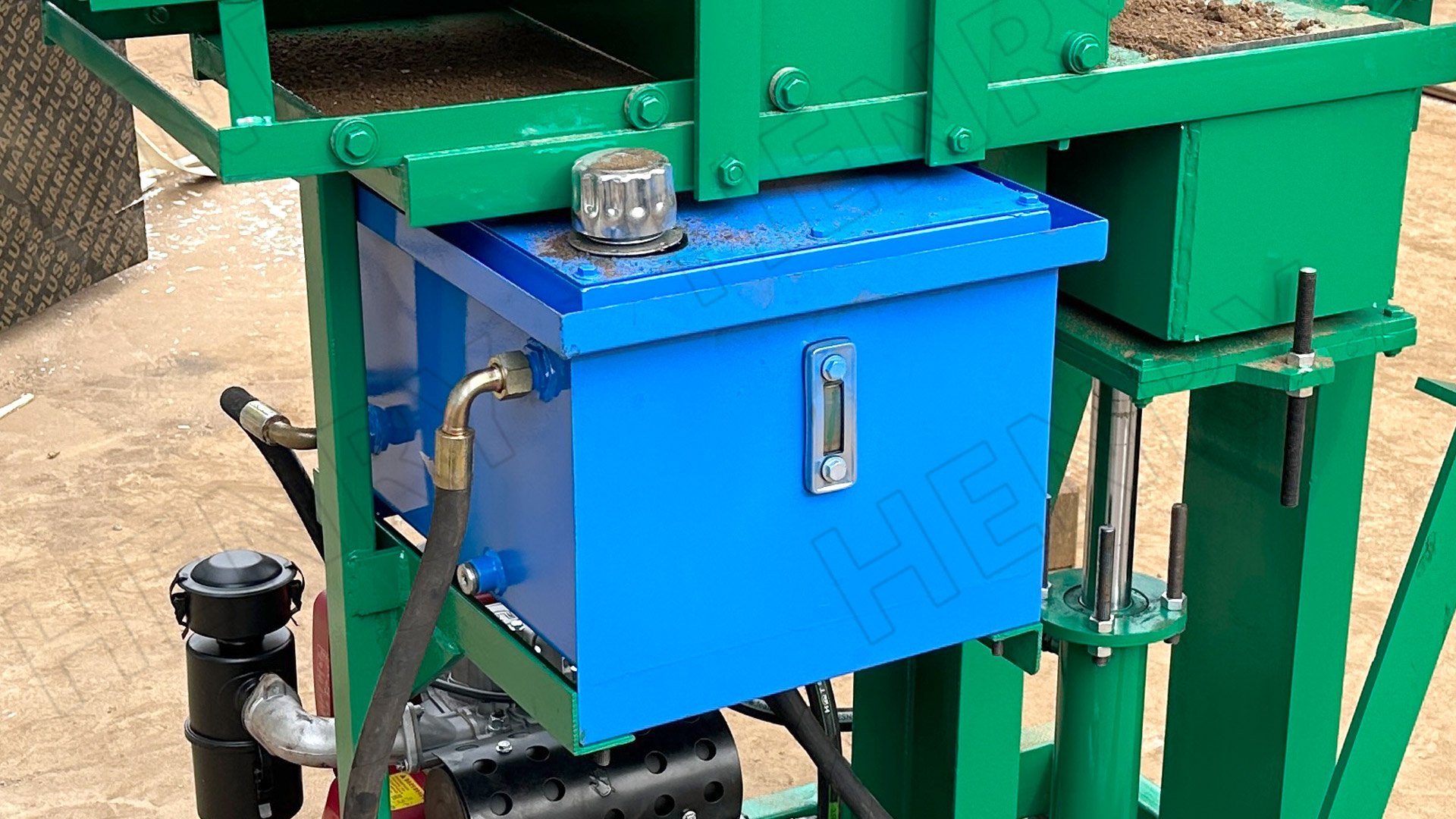

What important role does the hydraulic oil tank play in the production of HR2-25 ECB earth brick machine?
The hydraulic oil tank is an important part of the hydraulic system of HR2-25 earth brick machine. The hydraulic oil tank can store the hydraulic oil of the hydraulic system, and the hydraulic oil tank can ensure the normal operation of the hydraulic system by circulating cooling and filtering the hydraulic oil. The capacity of the hydraulic oil tank is 90L. Add 70L-80L hydraulic oil once and replace it once every 1-2 years.
Why is the diesel-powered HR2-25 ECB earth brick machine equipped with batteries?
Battery plays a very important role in the production of clay blocks by HR2-25 earth brick machine. The battery not only provides power for the starting motor of diesel engine, but also provides power support for hydraulic system and electronic components. HENRY company has been cooperating with the well-known domestic brand “LUOTUO” battery, which has large storage capacity and guaranteed quality.
Can customers choose the color of HR2-25 earth brick machine by themselves?
The answer is of course. HENRY Company generally paints HR2-25 earth brick machine with common colors, such as blue, yellow and green. If customers have their own favorite colors, we will paint HR2-25 earth brick machine according to the color cards provided by customers. You can send us an email or leave a message if you have any questions, and our team will answer your questions as soon as possible.
HENRY Company has sold more than 20,000 sets of HR2-25 ECB earth brick machine.
We also have electric power, semi-automatic and full-automatic clay brick making machine, M7M1 single-headband mixer, M7M1 double-headband mixer and large-scale 100-300-ton hydraulic clay brick making machine for you to choose from.
Display of technical parameters of HR2-25 earth brick machine
- Technology datas
- HR2-25 earth brick machine production output:
| Overall Size | 1500*800*1600mm |
| Shaping | 25s |
| Power | 10HP |
| Rated Voltage | Adjustable |
| Weight Of Host Machine | 500kg |
| Raw Materila | Soil/Clay/Earth |
| Capacity | 2600-2900pcs/8hr |
| Hydraulic System Pressure | 10 Tons |
| Workers | 1-2 workers |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
Get More Operation Videos
HENRY will show you how to operate this HR2-25 ECB earth brick machine correctly.
1. Prepare raw materials for making bricks.
2. Ensure that HR2-25 earth brick machine is filled with sufficient No.46 hydraulic oil, and diesel oil and engine oil are added to diesel engine.
3. Start HR2-25 earth brick machine.
4. Pour the raw materials into the hopper of HR2-25 earth brick machine.
5. The raw materials are evenly and fully filled in the HR2-25 earth brick machine mold box by pushing and pulling the cloth tool back and forth.
6. Butt the pressure head with the mold box.
7. By operating the operating lever beside HR2-25 earth brick machine, the brick can be extruded.
8. demoulding: separating the upper mold of HR2-25 earth brick machine from the mold box, and operating the other operating lever to realize brick discharging.
9. Transport the formed bricks to the maintenance area.
This HR2-25 model earth brick machine controls the amount of material fed into the mold by adjusting the height of the 4 bolts on the bottom plate. Because the compression ratio of soil in each country is different, if your earth is very hard, it is recommended to adjust the compression ratio to a smaller level, that is, to feed less material. At the same time, it is also necessary to ensure that the height control bolts must contact the limit plate position every time the cylinder rises.
That is because lots of earth brick makers wants to use the machine at different site to produce earth interlocking bricks based on the rich soil material, so with wheels, this particular earth brick machine can be easily delivered to different places for working.
- after receiving your earth brick machine , please remember to Check the tightness of all screws. If they are loose, use the tools and wrenches we provide to tighten all loose screws, nuts, oil pipe interfaces, etc.
- Remember to feed the good quality of engine oil into engine oil tank with three liters and be sure to exchange all engine oil every year to be new .
- Thirdly , feed the 64# hydraulic oil into oil tank before you start to use machine with 27 liters at showing you the quantity with the ruler.
