HR4-10 super 300 tons press earth block machine
Obvious advantage
- The body of Henry Brick Machine is entirely cast from high-performance steel. The body is stronger and can withstand a force of more than 500 tons. The body is guaranteed not to deform or crack.
- The Henry brick machine adopts a new high-speed flow static pressure cylinder, which ensures the rapid return of hydraulic oil and shortens the cylinder stroke time by 5 seconds.
- Easy to operate, no need for any after-use care and maintenance
- The mold is easy to replace, and clay bricks of various sizes can be produced with only one machine
- The price is favorable, and our company has launched the most favorable policy at present
Full range of 300 ton fast hydraulic quiet earth block machine
Since the first construction users began to explore earth block in 2007, more and more brick and block manufacturers have begun to explore and expand the use areas of clay interlocking bricks. They have begun to improve the quality of clay bricks. Therefore, for hydraulic clay The requirements for machine pressure are getting higher and higher, so the Henry 100-ton series, 200-ton series, and 300-ton series came into being. To ensure that the output does not decrease, we have made all-round improvements to our original models. , such as the thickness of the fuselage frame, steel materials, and reinforcements added to key parts of the fuselage. In the past year, Henry’s 100-ton clay machine series has exported 15 units to the world. This year, Henry’s clay machine continues to maintain With the potential of innovation, we will continue to work hard for customers of high-end clay machines and further improve the stability of the models. How to make the machine run with less noise and how to shorten the molding cycle further is what we, the Henry people, are constantly pursuing.
Technical Data
- Tab1
- Tab2
| Overall size : | 2500*1650*3500mm |
| Weight of host block machine | 5500kgs |
| Host machine rated power | 18.5kw |
| Worker number required | 5-6 workers |
| Brick discharging method: | airbag clamping |
| Compressure power | 300 tons |
| Block forming period | 12-15 seconds |
| Applicable industries
| Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Block machine |
| Raw material | Soil ( cement, clay,earth, mud, lime, fly ash, stone dust and so on ) |
| Block mould | One set for free |
| Mixer model | JQ800 Soil mixer |
| Belt conveyor machine | 8 m length |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump,hydraulic cylinder. |
| Warranty of core components | 1 year |
| Place of Origin | Shandong |
| Unique selling point | 300 tons hydraulic system |
| Color | According to the buyer’s requirement |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | HR4-10 Earth block making machine |
| Quantity/mould | 4 pieces of 300*150*100mm compressed earth block |
| Production area required | 2000-3000 square meters |
| Workshop area | 100 square meters |
| Raw material store workshop | 200 square meters |
| Office | 60 square meters |

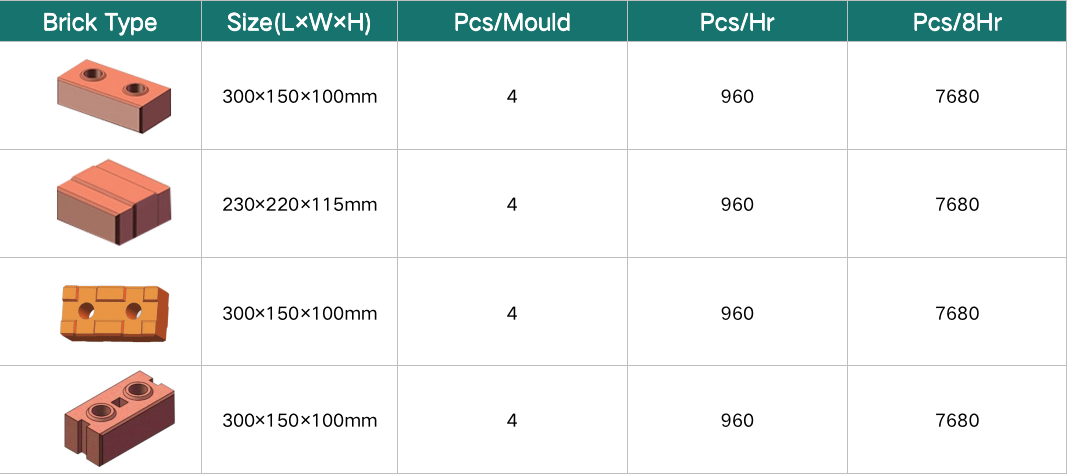

HR4-10 Super 300 tons pressure earth block machine production output :
HR4-10 300 tons super hydraulic earth block machine advantages
Auxiliary cylinder for power assistance

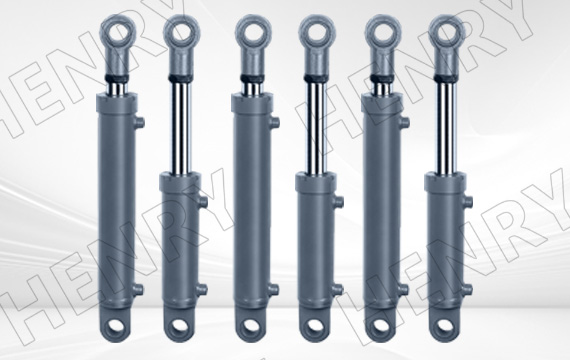

01. Hydraulic cylinder
These two upper pressure cylinders pull the main cylinder to apply pressure to shape the bricks, and the cylinders have strong power.The circle mark is obvious; never explode the cylinder. Full tonnage, Full stroke, Tight lock, no oil leakage
Hydraulic oil tube
02. earth block machine Horse
Steel wire spiral hose: Bear high-temperature and high-pressure Flange interface sealed well, no oil leakage.
Imported brand 300 tons super cylinder
03. Super hydraulic cylinder
300 tons super cylinder,Guide post and piston rod are plated with hard chrome after intermediate frequency quenching
Tailida Solenoid valve
04. Solenoid valve
safe， Suitable for corrosive, toxic or high and low-temperature media, Fast response, controlled within tens of milliseconds
HR4-10 high quality block mould
05. Simple and practical
One machine has multiple uses, and fixed wire holes are reserved to facilitate the replacement of different molds. Since the machine is 300 tons, we use stronger and thicker steel plates to cast the molds, so that the pressure will not deform.
Interlocking block molds
06. Block mold
The mold head plate is all milled by CNC machine tools, with high precision and minimal brick error。Carburizing, heat treatment, wear resistance. Wire cutting technology, small error Carbon dioxide protection welding The welding body is firm and does not crack.
Embedded hydraulic station
07. 18.5 kw power Embedded hydraulic station
Good sealing performance, fast hydraulic oil return speed, long hydraulic oil circulation cycle, large oil pump energy and large flow

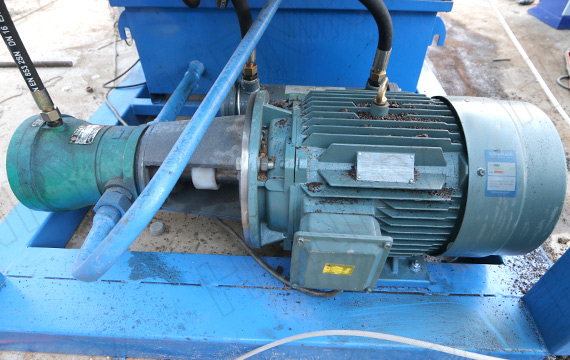

Pure copper core motor Electrical Motor
08. Electrical Motor
High efficiency motor special line guarantee of strong power Long service life adapt to different needs
HR4-10 300 tons super hydraulic earth block machine advantages
Simple project sections and tips
- Gallery
- Data Shete
Earth block samples for clients to choose (9)
Size: 300*150*100mm
Diameter: 50mm
Compressor ratio: 1:1.9
Output:4 bricks at a time/ 5600 bricks per 8 hours
Size: 300*150*100mm
Diameter: 50mm / Groove depth: 30mm
Compressor ratio: 1:1.9
Output: 4 bricks at a time/ 5760 bricks per 8 hours
Size: 300*150*100mm
Male depth: 15mm
Compressor ratio: 1:1.9
Output: 4 bricks at a time/ 5760 bricks per 8 hours
Size: 300*150*100mm
Diameter: 50mm with any famous logo
Compressor ratio: 1:1.9
Output: 4 bricks at a time/ 5760 bricks per 8 hours
Size: 225*112.5*60/80mm
Logo: it can be designed
Compressor ratio: 1:1.9
Output: 4 bricks at a time/ 5760 bricks per 8 hours
Size: 300*150*100mm
Diameter: 50mm/ square hole :40*40mm
Compressor ratio: 1:1.9
Output: 4 bricks at a time/ 5760 bricks per 8 hours
Size: 240*240*60mm
Logo: it can be designed
Compressor ratio: 1:1.9
Output: 4 bricks at a time/ 5760 bricks per 8 hours
Size: 404*202*60mm
Logo: it can be designed
Compressor ratio: 1:1.9
Output: 3 bricks at a time/ 4320 bricks per 8 hours
Size: 300*150*100 mm
Hole diameter:30mm
Compressor ratio: 1:1.9
Output: 4 bricks at a time/ 5760 bricks per 8 hours
HR4-10 earth block machine test all kinds of earth blocks for customers
- How to choose and compare a interlocking brick press that is suitable for opening a brick starter？
- Kenya U shape ISSB interlocking soil clay earth mud brick molding machine test 50 tons pressure
- Kenya popular clay soil earth interlock brick molding machine at 50 tons strength compression
- Super professional explaining on the clay soil interlocking brick machine of semi automatic diesel
- M7MI twin soil clay brick machine 50 tons pressure test earth hydraform block
How to confirm your final decision on the earth block style
First of all, please tell us which country you are from. Our team will advise customers on the corresponding size and type according to the most used brick types in this market before. Then, customers can ask us to design drawings for them according to their own requirements. Finalize the bricks that the customer wants to produce。

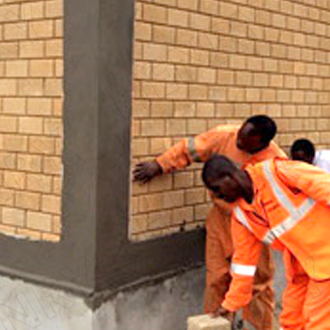

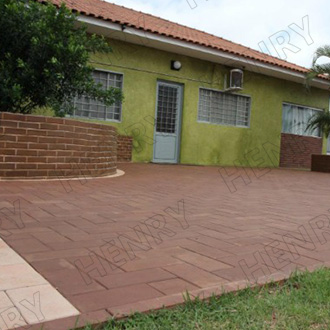

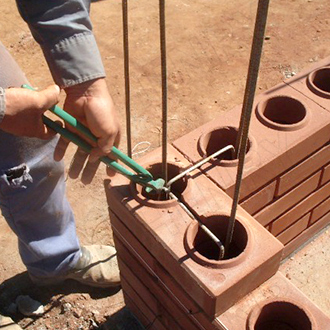

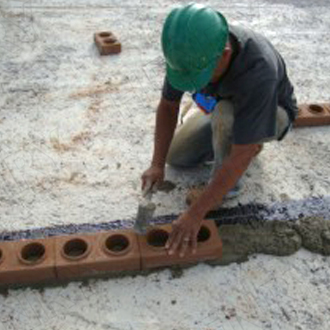

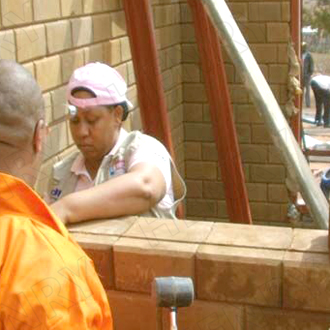

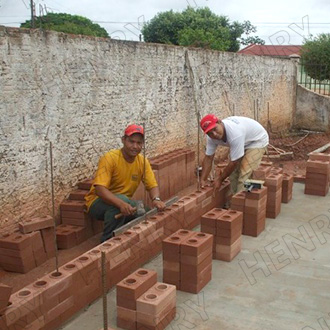

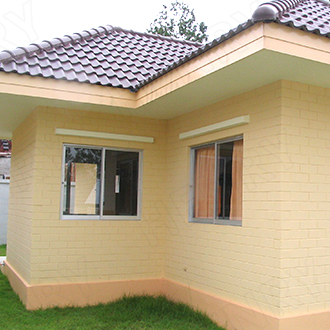

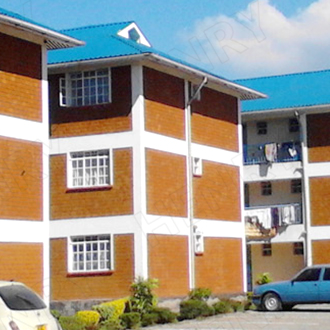

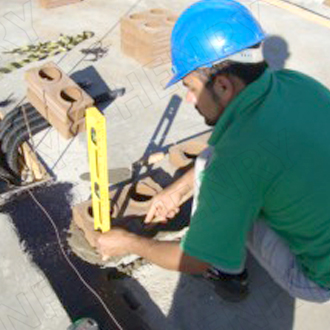

Part of the realistic portrayal of using the Henry earth brick making machine
Necessary equipments for HR4-10 earth block machine (6)
A soil crusher is for crushing large pieces into small pieces
Soil crusher machine parameters:
Overall size 1500×800×1500 mm Max. Feeding size 300×400 mm Power 5.5kw Capacity(t/day) 7-10T Total weight 320KGS
A Conveyor machine is for transfer from the crushing machine to the sieve machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
Soil sieve machine for screen raw soil into powder
Soil sieve machine parameters:
Power 0.75 KW Capacity 7-10T/day Hole diameter Diameter:4mm Total weight 350KGS dimension(mm)(L*W*H) 1500×800×1200mm A Conveyor machine is for transfer from the sieve machine to the mixer machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
Soil mixer machine is for mixing soil /clay / earth and cement to be good material
Soil mixing machine parameters:
Overall size 2000(L)×2000(W)×1500(H)mm Shaping cycle 2-3 mins Production capacity 24 m3/h Power 15KW Volume 1500L Total weight 1350KGS
Clay brick tester machine is to test earth block strength
Clay brick tester machine parameters :
Dimmersion 400*300*600mm weight 60kgs Max. Power 55 Mpa Test method manual pressing Cost Free
More users, especially construction companies, have proposed higher requirements for brick strength, load-bearing requirements, curing time, and cracking ratio. Henry has developed 100-ton, 200-ton, 300-ton, and even 500-ton presses to meet these needs.
The premise is that there must be enough high-viscosity stone powder or lime in the concrete raw materials, so that the bricks can be pressed very firmly under high pressure. However, after the bricks are formed, it is a challenge to clamp them out. Whether they can be successfully clamped out depends more on the raw materials mixed by the user. Of course, we can recommend other equipment that can produce concrete interlocking Lego bricks to users.
The answer is yes, for the salt blocks that are necessary for livestock, we can extrude the salt blocks into shape through our high-strength presses.
