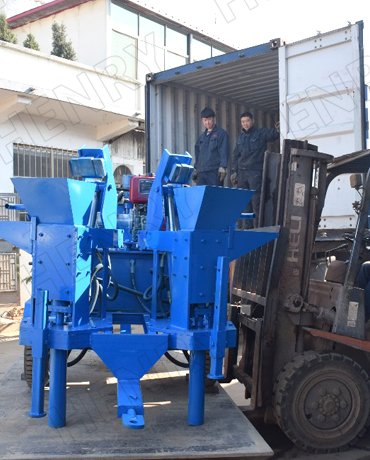

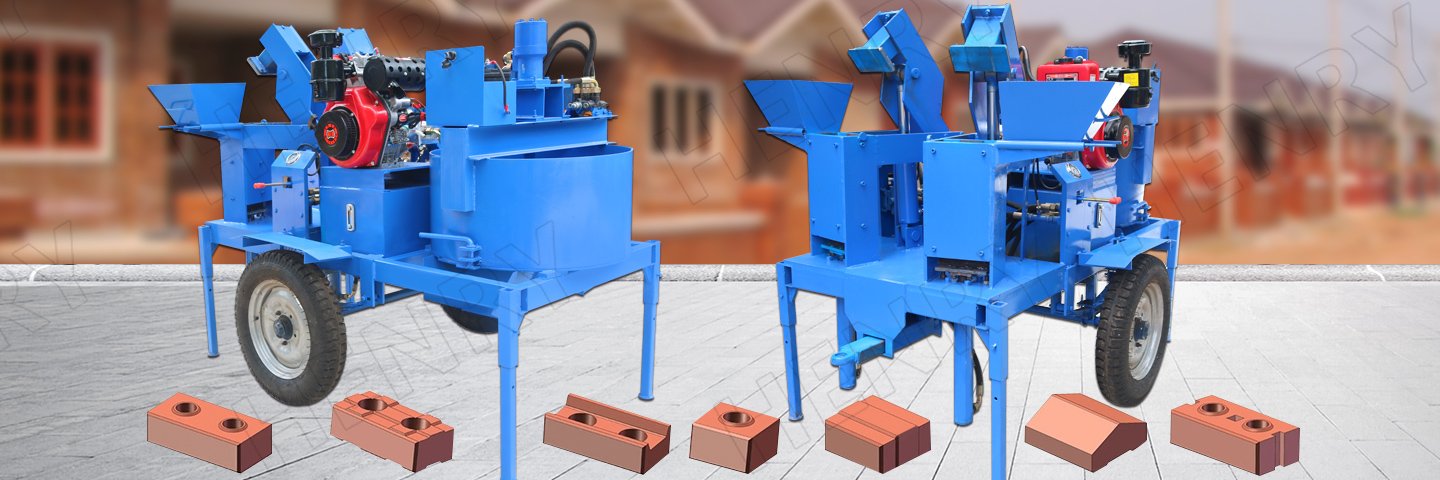

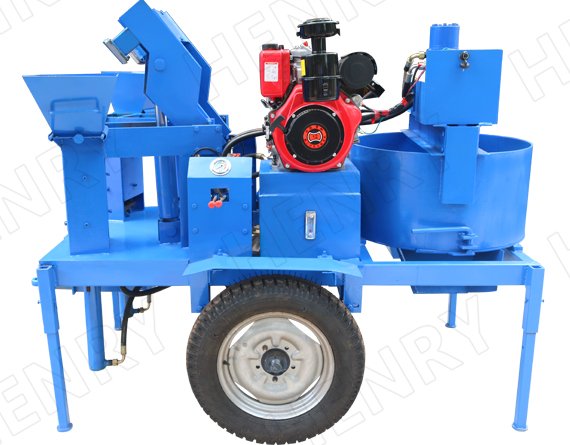

Twins press M7MI earth block machine price with mixer

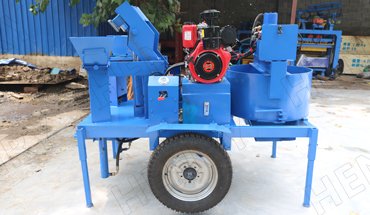

M7MI earth block machine price adopts unique hydraulic production technology, developed and designed by Hydraform in South Africa, and has now become a popular clay brick machine in the world. M7MI earth block machine price integrates mixer and clay brick machine, with wheels design, like a mobile mini factory.
M7MI earth block machine price has two pressing heads. The two workbenches can be operated simultaneously without interfering with each other. Each workbench can produce 1440 230*220*115mm hydraform bricks in 8 hours, so the daily output of M7MI earth block machine price is 2880 bricks. M7MI earth block machine price is easy to operate, and workers with no production experience can learn to operate it within 20 minutes.
What are the unique advantages and selling points of M7MI earth block machine price?
The M7MI earth block machine price uses diesel power, which is suitable for use in plateaus, mountainous areas, and rural areas where there is no electricity. The diesel engine has more continuous and stable power and is particularly easy to maintain. The M7MI earth block machine price is equipped with two oil cylinders, and the oil cylinders, valves and other accessories are imported from Japan and Germany with excellent quality.
Sufficient hydraulic pressure is undoubtedly a major selling point of M7MI earth block machine price. The hydraulic pressure of M7MI earth block machine price reaches 20 tons. In the process of producing clay bricks, the two cylinders above and below exert force at the same time to apply pressure to the clay raw materials in the M7MI earth block machine price mold box. The clay raw materials are quickly formed under the pressure of 20 tons. Therefore, the clay bricks produced by M7MI earth block machine price are highly dense, strong, soundproof and heat-insulating, and are the most scientific and environmentally friendly building materials for building houses.
The overall size of M7MI earth block machine price is 2500*1500*1700mm, the weight is 1500kgs, the power of the brand diesel engine is 10HP, the hydraulic pressure is 20 tons. M7MI earth block machine price comes with JQ200 small mixer, and the molding cycle is 15-20s.
Customers can use M7MI earth block machine price for many purposes. It can be used to mix raw materials, produce clay interlocking bricks, CLC bricks, half bricks, pavement bricks and other brick types. Adding 8%-10% cement to the raw materials will make the clay bricks produced by M7MI earth block machine price stronger. And the compression ratio of M7MI earth block machine price reaches 1:1.9, so the clay bricks produced can be used for at least 25 years.
Technical Data
- Tab1
Specification Parameter
| Overall size | 2500*1500*1700mm |
| Weight | 1500kgs |
| Host machine rated power | 10HP |
| Compressure force | 20 tons |
| Brick forming period | 15-20s |
| Mixer model | JQ200 |
| Shaping method | Hydraulic press |
| Worker | 2-3 Worker |
| Block mould | One set for free |
| Color | Customizable |
| Machinery Test Report | Provided |
| Raw material | Soil , Clay, Earth, Mud, cement |
| Place of Origin | Shandong |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | M7MI earth block machine price |
M7MI earth block machine price production capacity:
Why HENRY strongly recommends M7MI earth block machine price

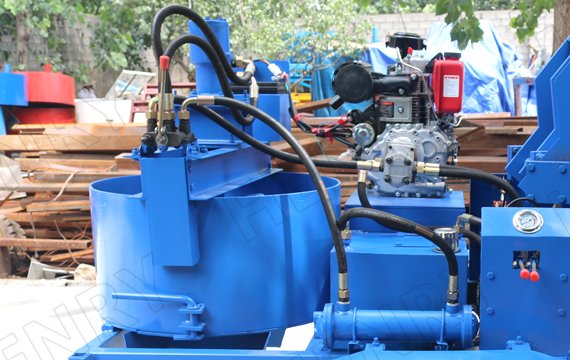

01.JQ200 Mixer
M7MI earth block machine price and JQ200 Mixer adopt an integrated design, which occupies a smaller area and makes the production process of clay bricks more compact. Workers can control the JQ200 Mixer by controlling the M7MI earth block machine price operating handle, which is very simple and convenient. Customers who purchase M7MI earth block machine price with JQ200 Mixer do not need to purchase the mixer separately, reducing investment costs. The integrated design of M7MI earth block machine price makes it easier to move to other construction sites.
02.High quality tires
The tires of the M7MI earth block machine price are made of high-strength rubber material, which is thicker and more durable, with strong load-bearing capacity and grip, ensuring that the M7MI earth block machine price can still move stably on slippery ground. The tires of the M7MI earth block machine price are thickened to prevent small stones, glass slag, etc. from causing damage to the tires.
03.Brand diesel engine
The M7MI earth block machine price is equipped with a second-generation air-cooled diesel engine from the well-known domestic brand “CHANGCHAI”. The diesel engine is powerful and adaptable, and can be used normally in extreme areas such as plateaus, cold and hot areas. The “CHANGCHAI” diesel engine equipped on the M7MI earth block machine price has mature technology, rich experience, low failure rate, and a scientific and reasonable combustion system design with low fuel consumption.
04.Block mold
The mold is a key component that determines the shape of the clay bricks produced by M7MI earth block machine price. M7MI earth block machine price adopts a two-mold box design, which can carry out production work at the same time. The mold of M7MI earth block machine price uses precise wire cutting technology and carburizing heat treatment to ensure that the mold can be reused more than four million times. The mold of M7MI earth block machine price is fixed with nuts, which makes it very easy for workers to replace the mold later.

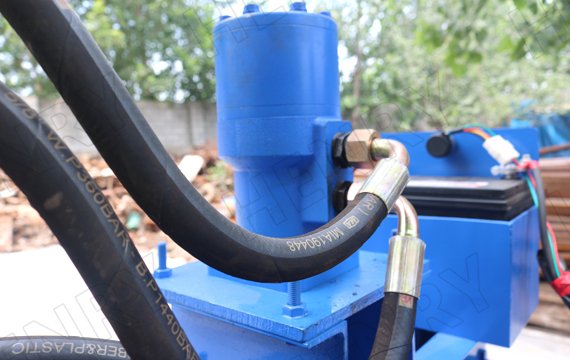

05.Hydraulic tube
The hydraulic tube equipped with M7MI earth block machine price is braided with two layers of steel wire, which is resistant to high pressure and safer. The outer layer of the hydraulic tube equipped with M7MI earth block machine price is made of synthetic rubber, which is resistant to high temperature and aging, and can adapt to various harsh environments. The hydraulic tube equipped with M7MI earth block machine price has a firm interface, flange interface, and good sealing.

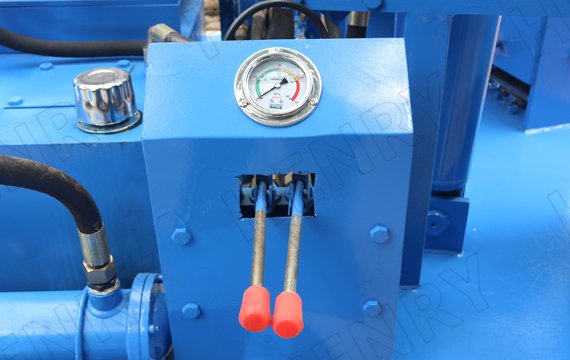

06. Operating handle
The operating lever of M7MI earth block machine price adopts a spring return structure. Workers use the operating lever to realize the mold raising, mold lowering, hydraulic and other actions of M7MI earth block machine price. The operating lever of M7MI earth block machine price is connected to the hydraulic system, and the control flow is very stable. The operating lever of M7MI earth block machine price is made of alloy steel, which is wear-resistant and non-deformed.
Main advantages of M7MI earth block machine price

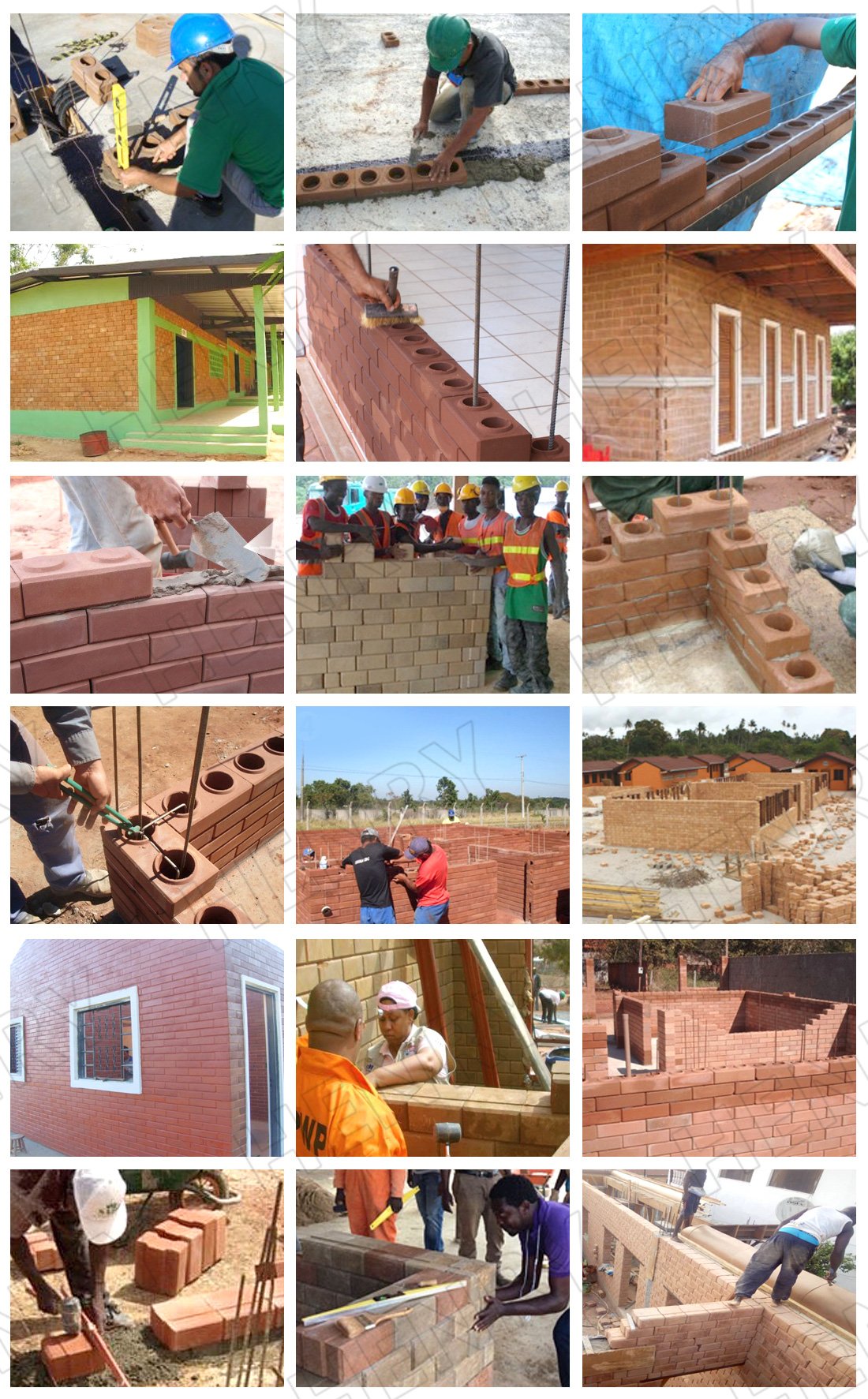

Construction workers use clay bricks produced by M7MI earth block machine price to build houses
- Real pictures from the scene

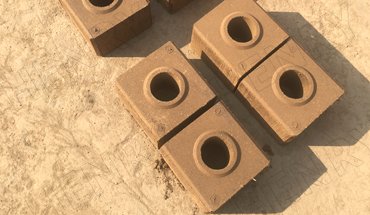

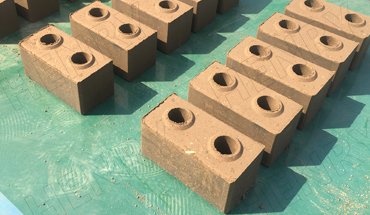

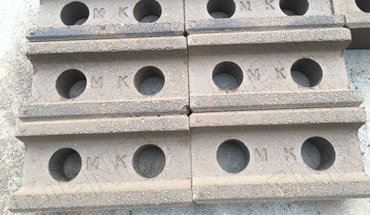

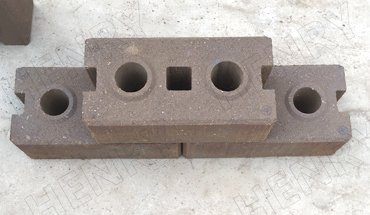

Some clay bricks pictures and parameters (6)
Size:300×150×100mm
2 pieces per mould
360 pieces per hour
2880 pieces per 8 hours
Size:300×150×100mm
2 pieces per mould
360 pieces per hour
2880 pieces per 8 hours
Size:300×150×100mm
2 pieces per mould
360 pieces per hour
2880 pieces per 8 hours
Size:300×150×100mm
2 pieces per mould
360 pieces per hour
2880 pieces per 8 hours

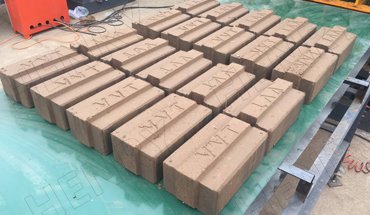

Size:230×220×115mm
2 pieces per mould
360 pieces per hour
2880 pieces per 8 hours
Size:150×150×100mm
4 pieces per mould
720 pieces per hour
5760 pieces per 8 hours

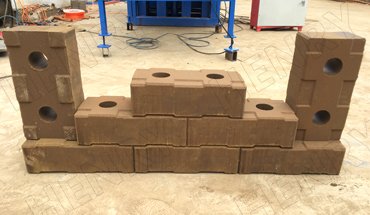

M7MI earth block machine price can produce different clay bricks types
Why M7MI earth block machine price is the most suitable machine for producing hydraform bricks
When producing hydraform clay bricks, M7MI earth block machine price can choose to produce them vertically, so that the thickness and width of all the hydraform clay bricks produced can be consistent. In this way, when workers use hydraform clay bricks to build houses, they can ensure that the width of the wall and the height of each layer of hydraform clay bricks are uniform.

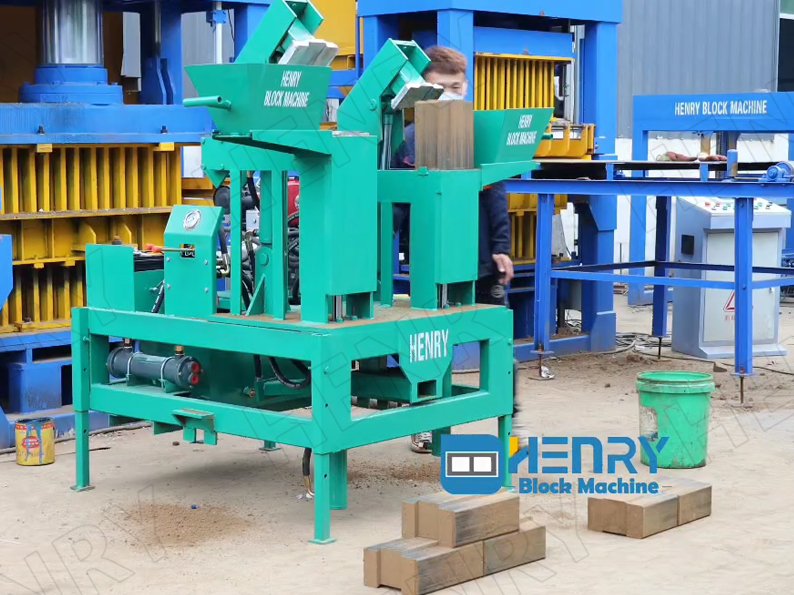

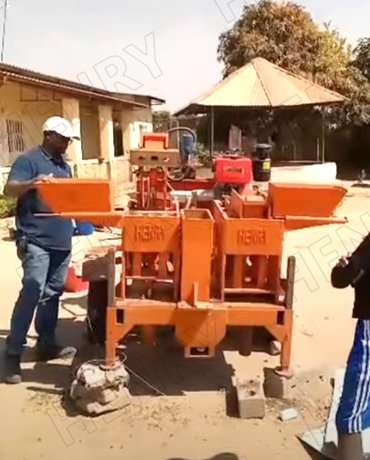

The Picture display of customers operation uses M7MI earth block machine price
M7MI earth block machine price What other supporting equipment is needed for a complete production line (5)
Overall size 2500*1500*1700mm Weight 1500kgs Host machine rated power 10HP Compressure force 20 tons Brick forming period 15-20s Mixer model JQ200

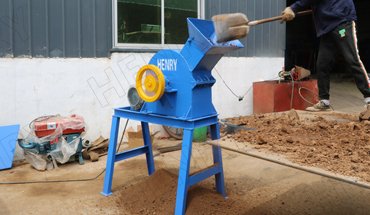

Overall size 1500*800*1500mm Max.feeding size 300*400mm Power 5.5kw Capacity 7-10 ton Total weight 320kgs
Power 0.75kw Capacity 7-10 ton Hole diameter 4mm Total weight 350kgs Dimension 1500*800*1200mm

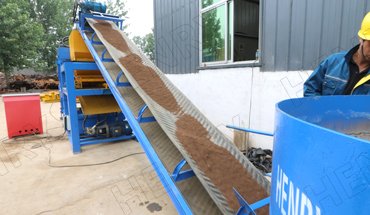

Weight 150kgs Size 4500*700*400mm Motor power 1.5kw Belt type “V”type Speed 1.5m/second

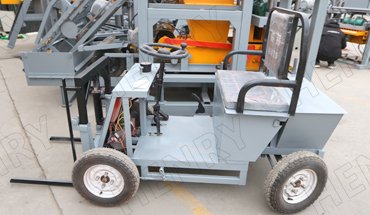

Size 2400*1000*1300mm Power 2.2KW Voltage 12V*4pcs Working hours 10 hours Operation Electro hydraulic Advantage Strong climbing ability、One button lifting

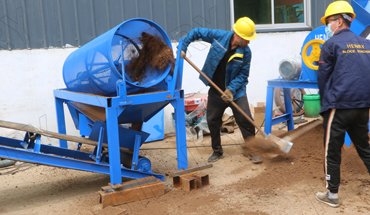

The raw materials for producing clay bricks by M7MI earth block machine price are mainly clay. We usually choose to mix clay soil and sandy soil. Clay is required to be fine-grained and free of impurities such as stones, tree roots, and weeds. 5%-10% cement needs to be added to the raw materials for producing clay bricks by M7MI earth block machine price. Cement can produce hydration reaction when it meets water. The addition of cement can enhance the strength and water resistance of clay bricks and extend their service life. However, the addition of cement will also increase the production cost of M7MI earth block machine price. Therefore, it is very important to add cement with a reasonable ratio. Finally, add an appropriate amount of water, about 10%. Water can fuse clay, sand and cement. However, if too much water is added, it will be difficult to form clay bricks produced by M7MI earth block machine price. If too little water is added, cracks will appear in the forming process of clay bricks produced by M7MI earth block machine price. Therefore, adding water in a scientific proportion is also very important.
The clay bricks produced by M7MI earth block machine price are hydraulically formed by adding clay to cement, so the strength of the clay bricks produced by M7MI earth block machine price has a lot to do with the later maintenance. First of all, workers need to stack the clay bricks produced by M7MI earth block machine price in a cool and ventilated place, or cover the clay bricks with plastic film, straw curtains, etc. to avoid exposure to the sun, which causes the moisture to disappear quickly. Every day, workers also need to sprinkle water on the clay bricks produced by M7MI earth block machine price 1-2 times for maintenance. This method continues for 7 days, and the maintenance process of the clay bricks is over.
M7MI earth block machine price can produce 300*150*100mm two-hole clay interlocking bricks, 300*150*100mm CLC clay interlocking bricks, 230*220*115mm hydraform clay bricks, 150*150*100mm half-brick clay bricks, 300*150*100mm U-shaped clay bricks, 240*240*60mm maple clay bricks, 225*112.5*60mm curved wave bricks
M7MI earth block machine price can produce 2880 300*150*100mm clay interlocking bricks in 8 hours. M7MI earth block machine price is equipped with a 10HP “CHANGCHAI” domestic well-known brand diesel engine, which is very powerful and consumes about 8-12L diesel in 8 hours of continuous operation.
