40 tons compressed interlocking brick machine
The Henry 40-ton fully automatic interlocking brick-making machine is an improved model that subverts the traditional manual clay brick-making machine. Compared with manual presses, this interlocking brick machine uses a hydraulic system to supply power. All of the block-forming processes are derived by the hydraulic system instead of labor. For example, the material feeding system is automatic, automatically spreading material, compressing down soil from 190mm to 100mm of bricks, off-molding, and delivering blocks out automatically.
First, it used a power pump motor with a power of 7.5kw, which is like a big heart, continuously providing hydraulic power and transmitting it to all aspects of the machine. At the same time, the Henry brick-making machine uses a travel switch to control the precise positioning of each hydraulic connecting rod. , ensure the precise size of each clay interlocking brick, especially the height of the brick, because when you build a house entirely with clay interlocking bricks in the future, whether the height of each brick is consistent determines whether the height of your wall is appropriate Flat. This is very crucial.
Secondly, we have revolutionized the brick-making method using air bags. This method avoids the damage rate of bricks during the brick-making process and protects the integrity and strength of each clay interlocking brick.
Third, the Henry interlocking brick machine truly realizes fully automated production, reduces labor costs and production safety hazards, and ultimately ensures efficient output and energy saving in the production of customers’ clay interlocking bricks.
What is the 40 tons super press compressed interlocking brick machine ?
The high-speed 40-ton hydraulic interlocking brick machine is a large-scale improved mechanical equipment mainly used to press various clays and other cohesive soils into various shapes of bricks, tiles and building materials. we recommend our clients to choose this machine to make interlocking bricks, as lego interlocking brick, eco bricks, hydraform interlocking blocks, ISSB, ECB, and so on, The specific structure and definition are as follows:
1. Pressure system: The high-speed 40-ton hydraulic clay machine adopts a hydraulic system, including oil source, oil pump, pressure valve, oil cylinder, etc., which is mainly used to provide the pressure required for suppression.
2. Gearbox: The gearbox is an important part of the machine, mainly used to transmit power and provide sufficient speed and torque.
3. Pressing system: The hydraulically driven cylinder slides the pressing plate toward the mold, pressing the clay into the mold to form bricks, from compressed ratio 1:1.75 to 1:1.9
4. Mold: The mold is mainly made of manganese steel and 345 steel plate after heat treatment. It is used to shape clay bricks. You can change different molds at will to press out different types of interlocking bricks. Replacing the molds is also easy and the price is very low and reasonable . clients do not have to buy many interlocking brick machine to make different bricks, rather than by changing different molds within the same machine .
5. Control system: The control system uses electronic equipment such as PLC, solenoid valves, and oil valves to adjust factors such as pressure and speed during the pressing process to ensure the quality and efficiency of the pressing.
Series of Super hydraulic compressed earth interlocking brick machine for sale
According to different requirements from different countries on the brick design, production quantity, investment ranges, and especially the brick strength requirement are more higher and higher.at beginning , it is only the hand press by manual which supply 1:1.6 com pressure ratio but at that moment, this PSI of interlocking blocks should be 1500 psi can be enough, and second grade , more clients require to make 3000 psi and until now ,few client would like to competate and choose 200 tons press and 300 tons press.
- it has a 200-ton compressor hydraulic cylinder.
- it will produce 10 pcs of standard interlocking bricks at one time
- the mold can be changed to make different interlocking bricks
- it has a double 50-ton compressor hydraulic cylinder.
- it will produce 7 pcs of standard interlocking bricks at one time
- the mold can be changed to make different interlocking bricks
- it has a 100-ton compressor hydraulic cylinder.
- it will produce 6 pcs of standard interlocking bricks at one time
- the bricks will be transferred out by airbag.
- it has a 100-ton compressor hydraulic cylinder.
- it will produce 5 pcs of standard interlocking bricks at one time
- the mold can be changed to make different interlocking bricks
- it has a 100-ton compressor hydraulic cylinder.
- it will produce 4 pcs of standard interlocking bricks at one time
- the mold can be changed to make different interlocking bricks
- it has a 300-ton compressor hydraulic cylinder.
- it will produce 3 pcs of standard interlocking bricks at one time
- this machine is very suitable to client who pay only attention to brick strength .
So small interlocking brick making machine, so cheap that you feel like you’re getting it for free
In addition to the large block-making machines we have developed, we also have many semi-automatic and manual versions of interlocking block-making machines for customers to choose from. For example, mobile block-making machines, diesel version block-making machines, and small output block-making machines. single brick-making machine, double brick-making machine . hydraulic brick machine , hand press.
- Horse Power: 12 hp
- Production cycle: 25 seconds
- It makes 2 pcs of 250*125*100mm lego bricks
- 2600-2900 pcs / 8 hours
M7MI twin earth block making machine make hydraform block- Horse Power: 15 hp
- Production cycle: 20 seconds
- It makes two pcs of 230*225*115 mm hydraform blocks
- 2600-2900 pcs / 8 hours
M7MI single earth block making machine produce lego block- Horse Power: 12 hp
- Production cycle: 20 seconds
- It makes two pcs of 230*225*115 mm hydraform blocks
- 1300-1500 pcs / 8 hours
Mobile diesel powered interlocking earth brick forming machine- it has wheel can move .
- Horse Power: 12 hp
- Production cycle: 25 seconds
- It makes 2 pcs of 250*125*100mm lego bricks
- 2600-2900 pcs / 8 hours
Updated 50 tons pressure diesel powered earth block making machine- Horse Power: 12 hp
- Production cycle: 25 seconds
- It makes 2 pcs of 250*125*100mm lego bricks
- 2600-2900 pcs / 8 hours
eco earth block machine M7MI twin interlocking brick machine- Horse Power: 15 hp
- Production cycle: 20 seconds
- It makes two pcs of 230*225*115 mm hydraform blocks
- 2600-2900 pcs / 8 hours
If you just started running a interlocking brick factory, which popular brick types would be the most profitable?
Prior to 2009, the first interlocking bricks to appear were a type of brick called Hydraform from Kenyan house construction. The second kind is Lego bricks, which are produced in Malaysia and later became popular in Brazil. They are also called ecological building blocks. The third type is CLC bricks from northern South America. These types of bricks are the ancestor of all current clay interlocking bricks, and increasingly, construction companies have derived many brick types in different sizes and in different design styles.
Do you know how many different sizes are now derived based on these three types of bricks? The current best-selling sizes of hydraform interlocking bricks are 230*220*115mm, which is the original and currently the most commonly used size internationally, and 300*150*100mm, which is the most popular brick size, 300*180*100mm
Needless to say, there are also many users who choose lego bricks. The most commonly used size is 300*150*100mm. Generally, users also choose to produce U-shaped lego bricks. Our interlock brick making machine only needs U-shaped bricks of the same size can be produced by changing the mold, and it is free of charge if you choose HENRY BLOCK MACHINE.
This brick type is a typical LEGO interlocking brick, and its main users are concentrated in many African countries such as Brazil, Argentina, Chile, Malaysia, and Tanzania.
and most users like to order a full brick, half brick, and U brick.
Eco ECB BrickThis kind of ECB building blocks are mainly derived from ordinary Lego building blocks, but the hole diameter is smaller, generally up to 30mm. This kind of small hole is mainly used for pouring concrete or filling steel reinforcement. because of the smaller holes, the thickness of the wall is bigger; then it can have stronger brick quality.
After more than ten years of development and evolution, hydraulically formed bricks have evolved from the initial standard size of 230*220*115mm to more sizes on the market: 300*150*100mm, 300*180*100mm, 230*140* 100mm, 303*180*110mm, 350*175*100mm, etc.
earth block paver bricksMore and more construction companies and builders prefer paving bricks/interlocking paving bricks as zigzag paving bricks, rectangular paving bricks, and Dutch paving bricks
Although it’s hard to imagine how they can use soil material to make paving bricks, it comes true that their local soil is used to make pavers as they wish.
Tanzania lego interlocking blocksLEGO interlocking bricks By adding square holes next to the ends so the holes are functional for loading concrete or filling with rebar, or filling with wire/water pipe interlocking design, these blocks provide stability and durability while reducing the need for cement and skilled labor. but maximum holes diameter is only 50mm.
Improved hydraform interlocking blocks with more deeper grooveInitial interlocking depth is 6mm. With user feedback during actual use, more and more customers prefer the interlocking parts of the bricks to be deeper. The current groove depth for this brick is 20mm. This way, the lock on each brick will be stronger.
Why are interlocking soil bricks used in more and more homes?
The soil in African countries is very suitable for mixing with cement to produce chemical reactions. After curing and curing, the cement will not fall off.
After being pressed by a 100-ton press, the pressure and density of the soil blocks are very high. After 14 days of repeated drying, watering or soaking, the hardness of the soil blocks will be higher.
Compared with concrete cement blocks, earth blocks are mainly made of earth, which is free of charge, soil, and 5-10% cement, so the production cost of earth blocks is very low.
Thanks to the interlocking technology, workers only need to lay each brick on top of each brick; no cement mixture is required to connect them.
Henry interlocking brick machine has a professional digital drawing team
We have a professional drawing team that can produce the most direct clean 3D drawings according to the customer’s brick type and size for customer confirmation. At the same time, our drawing team will also customize brick types in our company according to customers from different countries and give corresponding suggestions. In this way, the processed bricks can be guaranteed to be in short supply and sell well in the local market of customers.
Powerful program management ability
The computer control program of the fully automatic soil block machine is written and organized by our own programmers. The operation interface is simpler and more practical. The language can be set to meet the language requirements of customers in different countries; English, French, Arabic, Russian, Spanish, Chinese and other languages can be translated into professional programming languages
Timely and patient after-sales team of 24 hours on line
24/7 online support and expert assistance for block machine production and operational issues. Our professional team ensures quick solutions and professional guidance around the clock. We prioritize customer satisfaction and provide comprehensive after-sales services for seamless operations. Trust us for reliable support and expertise in the machinery industry.
Henry intelligent block machine company was the first to take earth block machine orders in 2007
Henry Intelligent Block Machine Company, established in 2001, revolutionized the industry by becoming the first to accept orders for earth block machines when a Kenya customer took an interlocking compressed earth block which is named hydraform blocks. With a visionary approach, we introduced cutting-edge technology and innovative designs, setting a new standard for the compressed earth block machine market. Our commitment to quality, efficiency, and customer satisfaction has propelled us to the forefront of the industry. Over the years, we have continued to deliver superior earth block-making machines and exceptional service, solidifying our position as a trusted leader in earth block machine manufacturing in China.
The customer's compressed interlocking brick machine factory has a good operating profit
- Horse Power: 15 hp
- Production cycle: 20 seconds
- It makes two pcs of 230*225*115 mm hydraform blocks
- 2600-2900 pcs / 8 hours
- its compressor can be adjusted to be 100 tons
- It makes 4 pcs of 300*150*100mm Lego bricks at a shift
- shaping cycle: 10-15 seconds
- Main power: 15 kW
- production capacity:800-960 pcs within one hour
HENRY interlocking brick machine supply the best service of after-sale, and invite new client to visit and inspect our machine factory

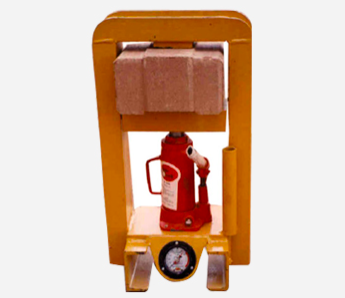

We have a customer from Cote d’Ivoire who really wanted to test the quality of our brick making machine before placing an order, but considering that the business trip to China is too expensive, we recommended him to go to a nearby neighboring country, Ghana, to see our equipment and test our dealers. The quality and performance of the brick making machine, this is a group photo of our Ghanaian dealer receiving customers from Cote d’Ivoire
Customers in India choose to cooperate with Henry to grow up, and they still believe in our company’s strength and quality control. Sincerely speaking, earth brick machines can be bought locally in India, and the price of local brick machines made in India is lower. Why do Indian customers finally choose to go far and import our earth brick machine from Henry Company in China
This Somali customer was deceived in online purchases before, so this time, the customer became very cautious. The customer did the most comprehensive understanding and investigation of Henry Company, and also did a detailed investigation of other competitors. In the end, he choose Henry intelligent earth block machine
Specification Parameter
| Overall size | 2400*1400*2800mm |
| Shaping cycle | 10-15 seconds |
| Main power | 7.5kw |
| Voltage | 380v/50 hz 3 phase(Adjustable) |
| Production capacity | 700-720 bricks/ per hour |
| Pressure | 40 tons (adjustable ) |
| Total weight | 1400kgs |
Why Choose Us
01.Steel Plate Material
We use high-performance manganese steel Q345 as the machine frame, the steel plate thickness can reach 8mm, the mold part steel plate is heat-treated carburized steel plate, the thickness is 15mm, which is more than the 12mm of the peers, which ensures that the machine body welding will not be deformed under high-intensity vibration force.
02.Electrical Motor
The motors are equipped with international brands such as Siemens or ABB, which have good quality and long service life. Customers can easily replace them locally. At the same time, we can save costs for customers by using China’s first-tier motor brands, Shanbo Motors.
03.Air Bag Clip
The airbag clip out the brick to avoid damage to the bottom of the brick The inlet pressure is adjustable and suitable for various sizes of bricks Made of imported rubber long life,not easy to get old
04.Electric Cabinet
Electronic components from national brands such as Schneider, Omron, Delixi, etc. Brand electronic components, fast response, stable performance, good quality, long life, reasonable layout, easy to replace
05.Hydraulic Station
Good sealing performance, fast hydraulic oil return speed, long hydraulic oil circulation cycle, large oil pump energy and large flow
06.Block Mould
Carburizing heat treatment technology can make mold life more than three times wear resistance. Wire cutting technology,small error Carbon dioxide protection welding the welding body is firm and does not crack
Related Product
Answer the most common questions about soil / earth /clay interlocking bricks for customers before placing order of our interlocking brick machine .
Compressed Earth Interlocking Bricks (CEIB) are a type of building block material made from special compressed earth. Currently, they are very popular in Africa for the simple reason that the soil in the continent is chemically compatible with cement. Even in some highland areas of Tanzania, Kenya, and Uganda, the soil is very good even without the addition of cement after being highly compressed. Generally, they are formed by using a manual press or a mechanical hydraulic press to compress a mixture of soil, water, and sometimes additives such as cement, lime, or fly ash. Compressed Earth Interlocking Bricks are usually in an interlocking shape and can be used for various construction purposes. They are fast to construct and do not require adhesives. CEB is known for its cheap interlocking technology.
In terms of raw material proportions, compressed soil interlocking bricks made from these materials can be used to make bricks and other structural members. The best combination to achieve this is a soil to sand ratio of 3.36, i.e. 70% soil and 30% sand.
Cement is better suited to sandy soils and can quickly reach higher strengths. Lime is better suited to very clayey soils but takes longer to harden and form a solid. These low percentages are part of the cost-effectiveness of CSEB.
As technology developed, fibers were introduced to improve stability.
A very successful formula is: clay – 65% relative to the dry mix (clay, sand, aggregate), sand – 15%, aggregate – 10%, cement – 10% relative to the total dry mix

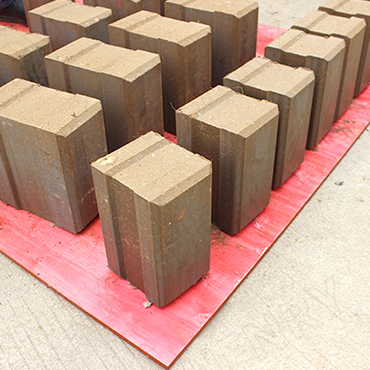

The standard size of Hydraform compressed soil interlocking bricks is 230*220*115mm. Later, many customers derived 300*150*100mm and 300*180*100mm, and some customers requested to add round holes on the bricks. However, the size of Lego bricks is generally 300*150*100mm. There are also U-shaped building blocks, half building blocks, etc. in the same series. The standard hole diameter of Lego bricks is 50mm in diameter.
Regardless, Henry Smart Block Machines can customize any of the different sizes and types of compressed earth blocks you need.
Compressed Earth Block Strength
The block strength is determined by the nature of the Soil / Fly Ash, the quantity of Cement, and other materials used. The water curing after the manufacture of blocks plays an important role in the final compressive strength and quality of blocks.
In past, we have obtained results as indicated below:
Soil – Cement Blocks
| Cement Content
8%
10%
| Strength
20 to 25 MPa
30 to 35 MPa |
Fal–G – C. Sand
| Cement Content
8%
10% | Strength
30 to 35 MPa
35 to 40 MPa |
Henry Compressed Soil Interlocking Brick Machine Manufacturer is the most professional block machinery company in China, specializing in production, research and development, and manufacturing. We have more than ten different types of clay brick-making machines, including manual, semi-automatic, and fully automatic hydraulic power. Various power, also divided into electric version and diesel version and we will professionally recommend the sutibale earth interlocking brick machines to you according to your production requirement.
