100 Tons Series Compressed Earth Block Machine
The most Newly developed super pressure 100-ton compressed earth block machine
- Compared with the previous 40-ton small press, the pressure of the hydraulic cylinder of this machine can instantly reach 100 tons.
- After the pressure increases, the hydraulic oil puts higher requirements for the oil cylinder, pump, and pipe.
- First of all, how to ensure the flow rate? Here we use a high-speed valve, and the hydraulic oil is stored in the spare oil tank in advance.
- After the solenoid valve of the hydraulic station receives the signal, it responds immediately. Then the hydraulic oil is quickly extracted and injected into the oil cylinder under high pressure, thus ensuring a large Hydraulic oil flow rate in the cylinder.
- Why we developed 100 Tons press mainly based on customers who has a higher requirement on earth block strength and the material is also updated to be cement and sand .
What is the 100 tons super press compressed earth block machine
The high-speed 100-ton hydraulic compressed earth block machine is a large-scale improved mechanical equipment, which is mainly used to press various clays and other cohesive soils into various shapes of bricks, tiles and building materials. The specific structure and definition are as follows:
1. Pressure system: The high-speed 100-ton hydraulic earth machine adopts a hydraulic system, including an oil source, oil pump, pressure valve, and especially a 100-ton grade oil cylinder, etc., which are mainly used to provide the pressure required for pressing.
2. Gearbox: The gearbox is an important part of the machine, mainly used to transmit power and provide sufficient speed and torque. As the hydraulic oil flowing speed normally slows down while the oil quantity gets more, the gearbox can push oil recycle more quickly.
3. Pressing system: The hydraulic pressure drives the oil cylinder to slide the pressing plate towards the mold box and press the earth into the mold to form various shapes of blocks, tiles, and building materials.
4. Mold: The mold is mainly made of manganese steel and 345-type steel plate after heat treatment. It is used to shape earth and clay. You can change different molds at will and press out different types of interlocking bricks. It is also straightforward to replace molds, and The price is also very favorable.
5. Control system: The control system is used to adjust the pressure, speed and other factors during the pressing process through PLC, solenoid valve, oil valve and other electronic equipment to ensure the quality and efficiency of pressing.
In a word, the construction and definition of the high-speed 100-ton hydraulic earth block machine involve many aspects, such as a pressure system, gearbox, pressing system, mold and control system, transfer system, and block stacking system, and it is designed and manufactured to meet various earth interlocking block pressing needs.

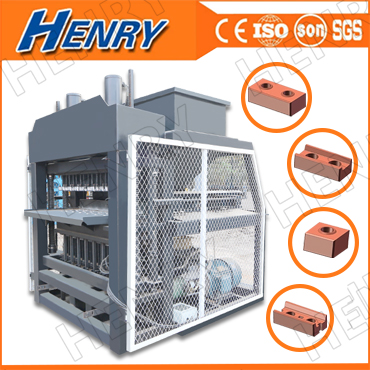

Series of Super hydraulic compressed earth block machine for sale
We have developed and produced a series of large-tonnage compressed earth block machines. According to the different production requirements of customers in different countries, Henry’s compressed earth block machines have 100 tons, 200 tons, 300 tons, and even 500 tons press, but as you saw, the machine’s main frame is almost similar; the difference is on the production quantity per time. we are currently selling several best-selling compressed earth block machines from three * hydraform blocks per time, four blocks per time, five blocks per time, six blocks per time, seven blocks per time, and ten blocks per time.
- its compressor can be adjusted to be 200 tons
- It makes 10 pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 10-15 seconds
- Main power: 18.5 kW
- production capacity:2000-2400 pcs within one hour
- Size:2400mm*1600*3300mm
- its compressor can be adjusted to be 100 tons
- It makes seven pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 10-15 seconds
- Main power: 15 kW
- production capacity:1500-1700 pcs within one hour
- Size:2500mm*1900*2800mm
- its compressor can be adjusted to be 100 tons
- It makes six pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 10-15 seconds
- Main power: 18.5 kW
- production capacity:1400-1580 pcs within one hour
- Size:2400mm*1600*3300mm
- its compressor can be adjusted to be 100 tons
- It makes five pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 10-15 seconds
- Main power: 18.5 kW
- production capacity:1200-1400 pcs within one hour
- Size:2400mm*1600*3400mm
- its compressor can be adjusted to be 100 tons
- It makes four pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 10-15 seconds
- Main power: 18.5kW
- production capacity:960-1100 pcs within one hour
- Size:2500mm*1900*2800mm
- It makes all kinds of interlocking bricks by changing mould box
- It makes two pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 10-15 seconds
- Main power: 7.5 kW
- production capacity:480-600 pcs within one hour
- Size:2300mm*1400*2800mm

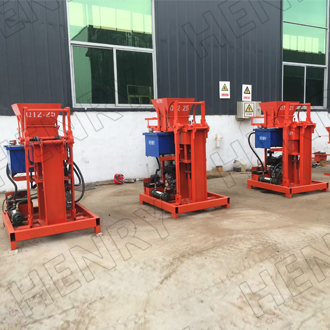

Small compressed earth block making machine price for sale
In addition to the large earth block machine developed, we also have a lot of semi-automatic and manual versions of earth block machines for customers to choose from. For example, mobile earth block machine, earth block machine powered by diesel version,earth block machine with small output.
- It does not require electricity,just fill diesel into the tank
- It makes two pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 25-30 seconds
- Main power: 12 Hp
- production capacity:240-300 pcs within one hour
- Size:1500mm*800*1600mm

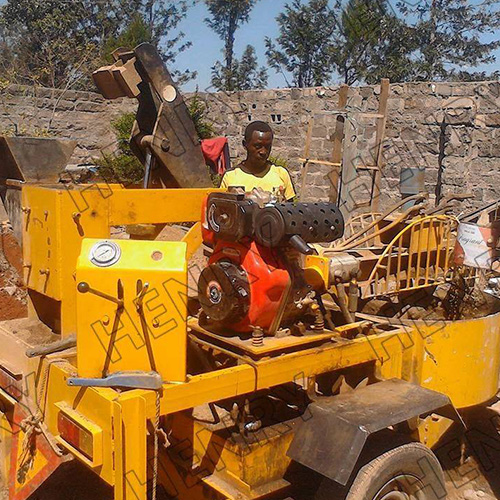

M7MI twin earth block making machine make hydraform block- It can move, comes with mixer, does not require electricity, just fill diesel into the tank
- It makes two pcs of 230*220*115mm hydraform blocks at a shift
- shaping cycle: 25-30 seconds
- Main power: 15 Hp
- production capacity:360-400 pcs within one hour
- Size:2900mm*1700*1600mm
M7MI single earth block making machine produce lego block- It can move, without mixer, single press head mould box , does not require electricity, just fill diesel into the tank
- It makes one pcs of 230*220*115mm hydraform blocks at a shift
- shaping cycle: 25-30 seconds
- Main power: 12 Hp
- production capacity:180-200 pcs within one hour
- Size:1800mm*1500*1600mm

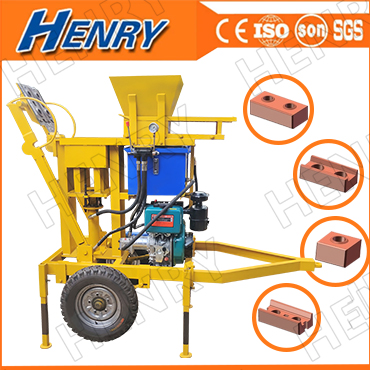

Mobile diesel powered interlocking earth brick forming machine- It can move with tyre, does not require electricity,you can transport it to anywhere for block production.
- It makes two pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 25-30 seconds
- Main power: 12 Hp
- production capacity:240-300 pcs within one hour
- Size:1500mm*800*1900mm
Updated 50 tons pressure diesel powered earth block making machine- It does not require electricity,just fill diesel into the tank
- It makes two pcs of 300*150*100mm compressed earth blocks at a shift
- shaping cycle: 25-30 seconds
- Main power: 12 Hp
- production capacity:240-300 pcs within one hour
- Size:1500mm*800*1600mm
Eco earth block machine M7MI twin with hopper mobile version- It can move, comes with mixer, does not require electricity, just fill diesel into the tank
- It makes two pcs of 230*220*115mm hydraform blocks at a shift
- shaping cycle: 25-30 seconds
- Main power: 18 Hp
- production capacity:360-400 pcs within one hour
- Size:3500mm*1700*1600mm
The trending and most popular compressed earth block styles
To save more material expenses, more and more block builders have researched more technology methods for better and stronger houses; before 2009, the first interlocking bricks that emerged were a type of brick called hydraform from Kenyan house construction. The second type was Lego bricks that were produced in Malaysia and later became popular in Brazil, also called ecological bricks. The third type is a CLC brick from northern South America. These types of bricks are the originator of all clay interlocking bricks at present, and more and more construction companies have derived many types of bricks with different sizes and different design styles.
You can choose the normal size: 300*150*100mm, 250*125*100mm, but you also can re-design other dimensions based on the original size, for example, 300*180*100mm interlocking bricks just changing the width. Meanwhile, some brick building company require to make 404*202*100mm, finally we could accept any more bigger size up to be 600*300*200mm hydraform interlock block or eco CLC LEGO bricks .
This lego interlocking brick can be made by any interlocking brick machine , the original style is full brick, half brick and” U” shape brick. U Shape brick normally is used onto window location. U shape brick and half brick moulds can be combined with full brick mould.
Tanzania Eco Clay Brick (ECB)This kind of ECB brick is mainly derived from ordinary Lego bricks, but the hole diameter is smaller, generally up to 30mm. This small hole diameter is mainly used for pouring concrete or filling steel bars for reinforcement
After more than ten years of development and evolution of hydraform bricks, from the initial standard size of 230*220*115mm, more sizes appeared on the market later: 300*150*100mm, 300*180*100mm, 230*140*100mm , 303*180*110mm, 350*175*100mm and so on
Earth block interlocking paver bricksMore and more construction companies and builders prefer to make paving bricks / interlocking pavers such as zigzag pavers, rectangular pavers, and Holland pavers for the roads. they are with good density and high strength .
Malasia lego interlocking blocksLEGO interlocking bricks in Tanzania offer innovative, cost-effective and environmentally friendly construction solutions. adding the square holes beside the ending, so the holes function is for loading concrete or filling steel bars, or filling electricity wire/water pipe interlocking design.
Soil Hydraform interlocking blocksThe initial interlocking depth is 6mm. With the feedback from users in the actual use process, more and more customers prefer the interlocking part of the brick to be deeper. At present, the groove depth of this brick is 20mm. In this case, each brick’s lock will be stronger.
Why earth blocks are so popular?
Anyway, soil, earth, clay are cheaper than concrete .even wasted dust will be also good for making interlocking earth compressed blocks
Pressed by a 100-ton press, the pressure and compactness of the earth blocks are very high, and after 14 days of repeated drying, watering or soaking, the hardness of the earth blocks will be even higher
You do not use cement, only earth . Compared with concrete cement blocks, earth blocks are mainly made by earth,soil, and 5-10% cement, so the earth blocks production cost is very low.
Because of interlocking technology, workers only need to lay each brick on top of each block; meanwhile, there is no need cement mixture to connect
Henry block machine has a professional digital drawing team
We have a professional drawing team that can make the most direct cleaning 3D drawings for customers to confirm according to the brick type and size of the customer. As long as you send us the dimensions, we will draw out the brick drawings for you. At the same time, we will layout the bricks for you and produce a few pieces at a time. It will be clear at a glance whether the bricks will be arranged horizontally or vertically.
Powerful program management ability
The computer control program of the fully automatic earth block machine is written and organized by our own programmers. The operation interface is simpler and more practical. The language can be set to the language requirements of customers in different countries; English, French, Arabic, Russian, Spanish Chinese, and other different languages can be translated into professional programming languages
Timely and patient after-sales team of 24 hours on line
24/7 online support and expert assistance for earth block machine production and operation issues. Our dedicated team ensures swift resolutions and professional guidance, available round the clock. We prioritize customer satisfaction, providing comprehensive after-sales services for seamless operations. Trust us for reliable support and expertise in the mechanical industry.
Henry intelligent block machine company was the first to take earth block machine orders in 2007
Henry Intelligent Block Machine Company, established in 2001, revolutionized the industry by becoming the first to accept orders for earth block machines when a Kenya customer took an interlocking compressed earth block which is named hydraform blocks. With a visionary approach, we introduced cutting-edge technology and innovative designs, setting a new standard for the compressed earth block machine market. Our commitment to quality, efficiency, and customer satisfaction has propelled us to the forefront of the industry. Over the years, we have continued to deliver superior earth block-making machines and exceptional service, solidifying our position as a trusted leader in earth block machine manufacturing in China.
The customer's compressed earth block factory has a good operating profit
Many earth block-making machine clients prefer to move machines to different site for the production of bricks; this M7M1 Hydraform block machine has two wheels for move , so that it is easy to set up a block production factory at different location
HR4-10 automatic soil brick machine meets the requirements of big output production capacity. This earth block machine has a stronger compact / compress strength to form clay bricks with a higher production speed.
Why do tens of thousands of customers choose Henry brand compressed earth block making machines as their longest-term partners?
It only took 3 days for the Canada customer to inspect Henry’s company, and then only 2 days to arrange all the payments. Henry arranged the most timely delivery at the beginning of 2020 to client hand
This Somali customer was deceived in online purchases before, so this time, the customer became very cautious. The customer did the most comprehensive understanding and investigation of Henry Company, and also did a detailed investigation of other competitors. In the end, he choose Henry intelligent earth block machine
Customers in India choose to cooperate with Henry to grow up, and they still believe in our company’s strength and quality control. Sincerely speaking, earth brick machines can be bought locally in India, and the price of local brick machines made in India is lower. Why do Indian customers finally choose to go far and import our earth brick machine from Henry Company in China
Specification Parameter
| Overall size | 3200*1850*3400mm |
| Shaping cycle | 10-15 seconds |
| Main power | 18.5kw |
| Voltage | 380v/50 hz 3 phase ( Adjustable) |
| Production capacity | 2000-2400 bricks / per hour |
| Pressure | 200 tons ( Adjustable ) |
| Total weight | 5500kgs |
Why Choose Us?
01. Super oil cylinder
200 tons super cylinder, Guide post, and piston rod are plated with hard chrome after intermediate frequency quenching
02. Solenoid valve
safe， Suitable for corrosive, toxic, or high and low-temperature media, Fast response, controlled within tens of milliseconds
03. Hydraulic station
Good sealing performance, fast hydraulic oil return speed, long hydraulic oil circulation cycle, considerable oil pump energy, and large flow
04. Block mold
Carburizing, heat treatment, wear resistance. Wire cutting technology, small error Carbon dioxide protection welding the welding body is firm and does not crack
05. Electrical motor
High-efficiency motor unique line guarantee of strong power Long service life adapts to different needs
06. Hydraulic cylinder
The circle mark is unmistakable; never explode the cylinder. Total tonnage, Full stroke, Tight lock, no oil leakage
Related Product
The historical origin and Evolution of Compressed Earth Block
A compressed earth block (CEB) is a construction block material made of compressed soil. It is formed by a manual hand press or mechanical hydraulic machine compressing a mixture of soil, water, and sometimes additives such as cement or lime, or fly ash. Compressed blocks are usually interlocked in shape and can be used for a variety of construction purposes, including building walls, foundations, and even entire structures. CEBs are known for their cheap and interlocking technology, as they utilize the rich local soil, and reduce the need for traditional red-fired brick or concrete hollow blocks.
In terms of compressive ratio , compressed earth blocks made of these materials could be used for manufacturing bricks and other structural elements. The optimal mix to achieve this was a soil-sand ratio of 3.36, translating to 70% soil and 30% sand.
Cement will be preferable for sandy soils and quickly achieving higher strength. Lime will be rather used for very clayey soil, but will take longer to harden and give strong blocks. These low percentages are part of the cost-effectiveness of CSEB.
Compression of 7000 ps is used to reduce the block volume by 1/2
As the technology has evolved, fibers have been introduced to increase stability.
One formulation found to be very successful is: Clay – 35% In relation to the dry mixture (Clay, Sand, Aggregate), Sand – 35%, Aggregate – 30%, Cement – 7% In relation to the total dry mixture, Banana Fiber – 0%–5% In relation to the cement and Water – 10%–12%
The standard size of hydraform earth blocks is 230*220*115mm. Later, many customers derived 300*150*100mm and 300*180*100mm, and some customers requested to add round holes on the bricks. But the size of Lego bricks is generally 300*150*100mm, and there are U-shaped bricks, half bricks, and so on in the same series. The aperture standard of Lego bricks is 50mm in diameter.
Anyway, Henry intelligent block machine company can customize any different size and type of compressed earth blocks as you require.
Compressed Earth Block Strength
The block strength is determined by the nature of the Soil / Fly Ash, the quantity of Cement, and other materials used. The water curing after the manufacture of blocks plays an important role in the final compressive strength and quality of blocks.
In past, we have obtained results as indicated below:
Soil – Cement Blocks
| Cement Content
8%
10%
| Strength
20 to 25 MPa
30 to 35 MPa |
Fal–G – C. Sand
| Cement Content
8%
10% | Strength
30 to 35 MPa
35 to 40 MPa |
Henry Compressed Earth Block machine manufacturer is the most professional block machine company and specialized in production, research and development, and manufacturing in China. We have more than ten different types of soil clay earth brick machines, including manual, semi-automatic, and fully automatic hydraulic power. Different power, also divided into electric version, diesel version
