Everyone has a ability to Invest a HR1-30 small clay brick making machine with the simplest operation
1.HR1-30 small clay brick making machine is cheap, and it is very suitable for individual entrepreneurs or families with limited funds. you only need to spend two dollars per day then can hold on a small clay brick making machine , It does not need any power source such as diesel oil and electricity, and it only needs manpower to complete the production of clay bricks.By using the lever principle, you can easily and effortlessly achieve a compression ratio of 1:1.7 to produce the good quality of clay eco brava bricks.
2.The design structure of HR1-30 small clay brick making machine is very simple and easy to learn. Even workers with no operating experience can quickly master the method, and the whole production process can be completed by only one worker.
3.The size of HR1-30 small clay brick making machine is 1000*700*1100mm, the weight is 220kg, and the molding cycle of clay brick is 20-30s. This machine is simple in structure, made of high-quality and high-toughness steel plates by cutting and welding, and can be produced for a long time with solid quality.and HENRY Clay brick molds are all made with hear treatment technology and then using life will be three times than normal molds, The most vulnerable part is the support point of the lever. Henry Clay brick-making machine specially designed the pulley rolling bearing to reduce the heavy wear of the support point.
4. Although this HR1-30 small clay brick-making machine is small and cheap, it can still produce different soil interlocking brick types, which can be achieved by changing different ISSB brick molds.
5.HR1-30 small clay brick-making machine can produce 300*150*100 clay bricks at a time, and 960 clay bricks every 8 hours. Because it is handmade, there will be no noise in the production process, which is green and environmentally friendly.
What are the advantages and selling points of this HR1-30 small clay brick making machine?
1. The most low price, low investment and very simple operation.
2. One worker can produce earth-compressed blocks without any supporting equipment.
3. Clay raw materials and pure manual production are adopted, which is environment-friendly and low in production cost.
What's the quality of this HR1-30 small clay brick making machine with low price and small size?
The answer is that the quality is very good. The steel plate and die used in HR1-30 small clay brick making machine are made of the same material and welding process as the hydraulic machine, which is very strong. and the steel plate is Q345# international standard steel , At the same time, HR1-30 small clay brick making machine is durable because of its simple structure, manual power and few accessories, and its later maintenance is very simple.
Would any customers like to visit HENRY's factory for inspect and check their clay brick making machine ?
Of course, if customers want to visit our factory, we can send invitation letter to them. When the customer arrives in Linyi city, Shandong province, we can send a special car to high-speed railway station or the airport to pick you up. and every customer will have a great purchasing experience of small clay brick making machine.
HENRY company has a professional after-sales service team.
After receiving HR1-30 small clay brick making machine, customers can consult our after-sales service team if they have any questions during the operation and use of the machine, and we will answer them as soon as possible in time.Our after-sales service team will also pay a regular visit to the customer’s machine usage status to prevent the machine from being damaged due to improper operation by the customer.
HR1-30 small clay brick making machine is the cheapest brick-making machine of HENRY Company.

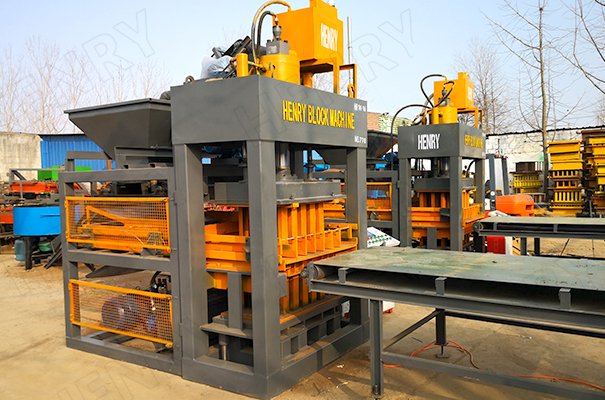

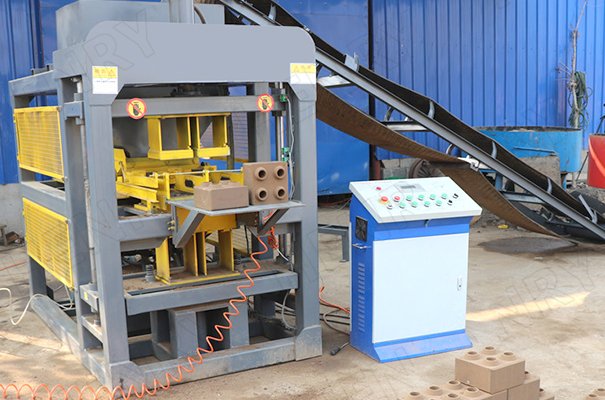

We also have other manual clay brick making machines, diesel-powered clay brick making machines, hydraulic compressed earth block machine, interlocking paver making machine, full-automatic hydraulic clay brick making machines for you to choose from.
HR1-30 small clay brick making machine technical parameter
- Technology datas

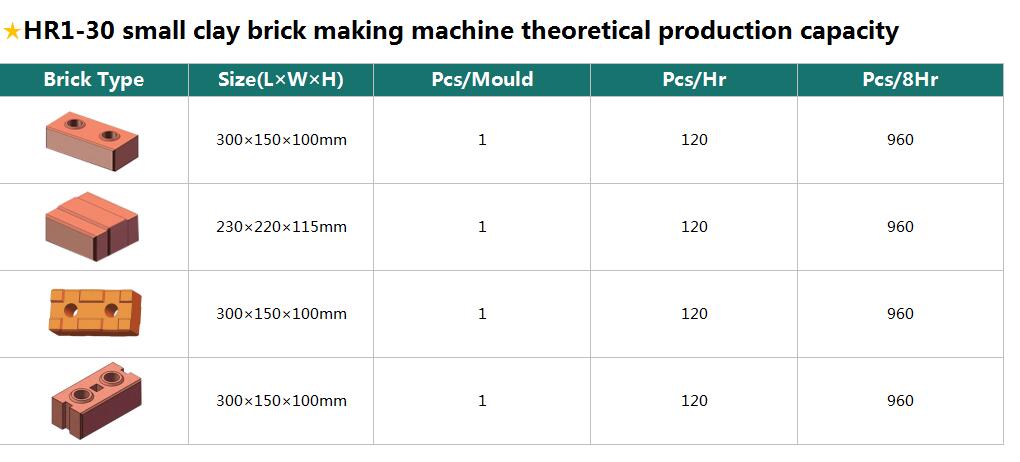

- HR1-30 small clay brick making machine theoretical production capacity
| Overall size | 1000×700×1100mm |
| Shaping cycle | 20s-30s |
| Rated pressure | 8Mpa |
| Weight | 220Kg |
| Mold replaced | Yes |
| OEM | Yes |
| Mold treatment | Carburizing treatment |
| Workers | 1 worker |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
Get More Operation Videos
How to operate this HR1-30 small clay brick making machine correctly and standardly?
1. First of all, you need to prepare the raw material soil for making bricks and the container for holding the raw materials for making earth interlock bricks.
2. Pour the prepared raw materials into the hopper of HR1-30 small clay brick making machine.
3. By pushing and pulling the distributing device back and forth, the raw materials are fully and evenly distributed in the mold box of HR1-30 small clay brick making machine.
4. Dock the upper mold with the mold box and remove the hook.
5. Press the handle of HR1-30 small clay brick making machine down with both hands to ensure the high compactness of bricks to be the maximum range to form the clay interlocking bricks to be strong enough.
6. Reconnect the hook to separate the upper mold from the lower mold box.
7. Press the handle down again to demould the brick out from the clay brick machine mold box.
8. Take out the produced bricks and transport them to the brick curing area.
The super-tough manganese steel used by Henry has been quenched, and the hardness and toughness of the mold have been increased by 2-3 times accordingly, the toughness of the mold steel plate has been increased by 3 times, and the wear resistance is higher. Generally, clay has little wear on steel. Even if the raw materials used by the customer contain a lot of sand or gravel, the service life of the mold can reach more than 10 years.
This small clay brick machine can also achieve a compression ratio of 1:1.7. Therefore, if the clay used by the customer is very loose, the density of the clay bricks produced is still very high. Whether it is Lego bricks, hydraform bricks, or pavement bricks, the quality is very good. However, if the local raw materials of the user have a high sand content or the hardness of the stone powder is relatively high, then it is more laborious to squeeze manually. Therefore, the quality of the clay interlocking bricks produced is not as good as that produced by the hydraulic press.
First, users can just buy the mold, but we need to know what model of small clay brick-making machine the user is currently using before we can decide whether we can match the corresponding mold to produce his small clay brick-making machine.
Second, if the user does not have a machine and only buys the mold, there is no way to use the mold. How do you plan to compact the bricks to make them solid?
