Qt4-35A used block making machine for sale is the most popular hollow block forming machine with simple structure in HENRY Company.
1.QT4-35A Used Block Making Machine for Sale is a small fixed concrete brick-making machine developed by HENRY, with simple structure, simple operation and reasonable design. Cheap price and low investment are the first things for individual entrepreneurs.
2.Qt4-35A used block making machine for sale is equipped with three vibrators, which can provide powerful vibration force for the concrete raw materials in the mold, and at the same time, it is equipped with 6.7kw high power, so that the concrete hollow block can be formed quickly and compactly.
3.The machine has a body size of 1200*1300*1600mm and a weight of 700kgs. It takes 40 seconds for QT4-35A used block making machine for sale to form four 400*200*200mm concrete hollow blocks. The operation is simple, and one worker can complete the production.
4.The quality of QT4-35A used block making machine for sale is guaranteed, and all parts are made of domestic brands and imported from abroad. Vibrators, reducers, motors, etc. are made of well-known domestic brands such as Shanbo and Huaxing, which are very durable.
5.This machine is easy to operate, occupies a small area, reduces the cost of site rent, and is very suitable for investors with limited factory area.
What are the advantages of using push-pull mode for QT4-35A used block making machine for sale?
The mould of qt4-35a used block making machine for sale adopts the mode of pushing and pulling back and forth, and the upper and lower moulds are separated back and forth, which is beneficial for the lower mould to be filled with concrete raw materials. After the feeding of the mould is completed, the upper and lower moulds are prevented from colliding with each other when they are closed, thus protecting the safety of the mould.
What is the important role of vibrator in QT4-35A used block making machine for sale?
Qt4-35a Used Block Making Machine for Sale is equipped with three 2.2kw vibrators, which can generate high-frequency vibration, fill the concrete raw materials in the mold evenly, and enhance the quality of concrete bricks. The vibrator used by HENRY is a well-known domestic brand “Liyuan”, which is famous for its high quality, strong reliability and stable quality.
What is the use of the reverse switch of QT4-35A used block making machine for sale?
The reverse switch can control the forward rotation and reverse rotation of the motor and vibrator of QT4-35A used block making machine for Sale, which is generally controlled manually, with simple operation and flexible switching of the working state of the concrete brick making machine. The reverse switch is equipped with safety protection device, which can prevent operation errors.
Why is the guide column an essential device for qt4-35a used block making machine for sale?
The guide column can ensure that the mold of QT4-35A used block making machine for sale is aligned when pressed down, prevent deviation, and provide stable support for the vibration of the mold. The guide column is made of high-strength steel material, which is very wear-resistant and durable.
Qt4-35A Used Block Making Machine for Sale Small Sawtooth Fixed Concrete Brick Making Machine
We also have other concrete brick making machines with different output, different prices and different operation modes.
QT4-35A used block making machine for sale technical parameters and capacity
- Technology datas

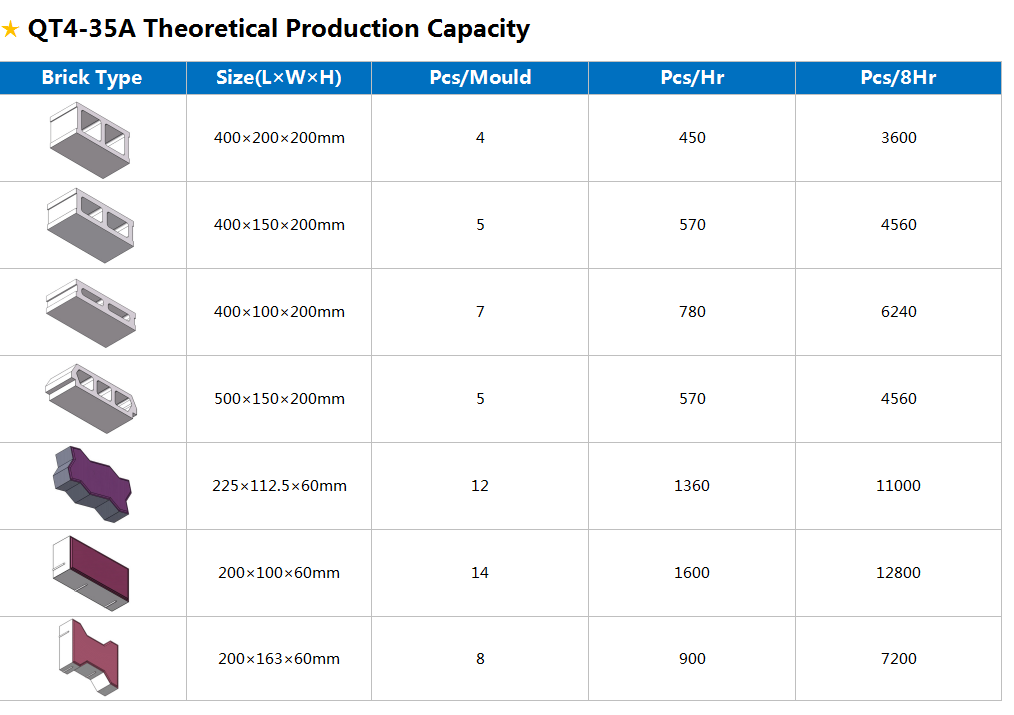

- QT4-35A used block making machine for sale production output
| Overall size | 1200*1300*1600mm |
| Shaping cycle | 40-50 seconds |
| Main power | 6.7kw |
| Voltage | 220v/380v/415v(Adjustable) |
| Production capacity | 240 bricks/ per hour |
| Worker | 2-3 Worker |
| Total weight | 700kgs |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
Get More Operation Videos
HENRY will explain to you in detail how to operate this QT4-35A used block making machine for sale correctly.
1.First, prepare the concrete raw materials needed by QT4-35A used block making machine for sale, put cement, sand and water into JQ350 mixer, and start stirring for 2 minutes, and the concrete raw materials are ready.
2.Put a piece of 850*550*20mm fiberboard on the platform directly below the QT4-35A used block making machine for Sale mold, flip the reverse switch, and slowly drop the lower mold.
3.Workers use loading tools to put the prepared concrete raw materials into the lower mold. After the raw materials are full, the lower mold is opened for vibration, so that the materials in the QT4-35A used block making machine for Sale can be evenly distributed and densely filled
4. Pull back the upper mold of QT4-35A used block making machine for sale, keep the upper mold and the lower mold aligned up and down, drop the upper mold, and stick it tightly with the lower mold.
5. Turn on all vibrators by flipping the reverse switch, and apply vibration force to the concrete raw materials in the mold. When the concrete bricks are fully formed, the vibrators stop, the mold rises upwards, and the concrete bricks fall on the fiberboard.
6. Workers use trolleys to transport the demoulded concrete bricks to an open place for air drying and curing, and the curing time can be adjusted according to local weather and temperature.
Generally speaking, the vibration force of the table vibration method is more sufficient, because the contact area between the vibrator and the vibration platform is larger and more direct, and most importantly, the vibration directions of the two vibrators must be opposite to each other so that the vibration force can be maximized. However, when the mold vibrates, the contact area between the vibrator and the mold must also be designed to be maximized. At the same time, the mold is kept suspended. At this time, the vibration force on the mold is also the greatest.
QT4-35A used block making machine is a manual process block moulding machine , by changing different style of block molds. it could produce many different hollow concrete blocks, solid cement bricks, color paving bricks, and kerb stone . it will make 5 pieces of 6 inch hollow block per time and can produce 300 blocks per hour. it should be a very good model for a block starter.
If you just plan to set up a small block factory in order to invest this block production business , QT4-35A is a very suitable choice for the starter . it has simple operation process , easy- maintenance , and strong vibration force to form concrete hollow blocks. but just with 3 cubic meters and 700kgs weight . so its price is very low for you to invest.
