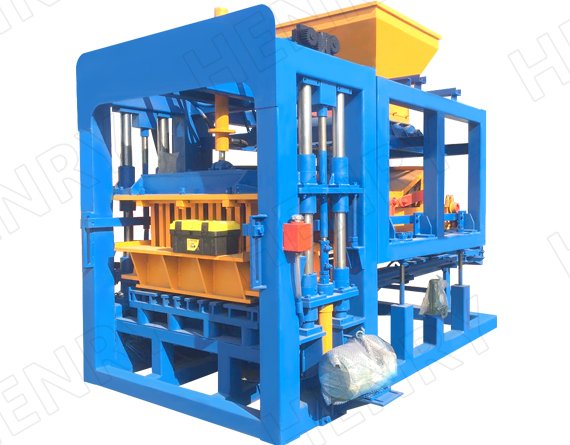

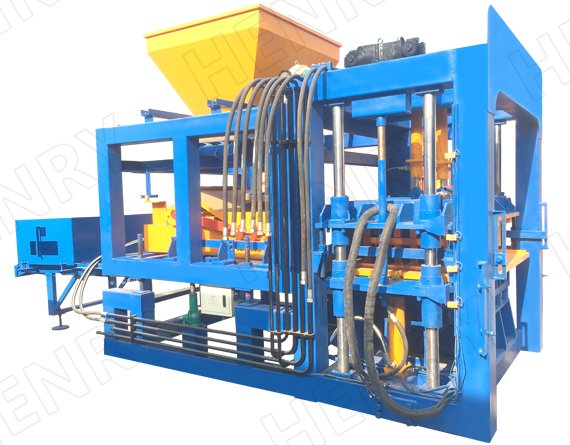

Fully automatic hydraulic QT8-15 cement block machine for sale
In pursuit of higher output, HENRY engineers developed and designed QT8-15 cement block machine for sale. Compared with QT6-15 block making machine and QT4-15 block machine, QT8-15 cement block machine for sale is equipped with a 960*850mm super-large fiber pallet, which can form 8 pieces 400*200*200mm 8-inch concrete hollow bricks at one time, and 8 hours is enough to produce 16,000 blocks. Such a large output is shocking.
QT8-15 cement block machine for sale has a large output, but you don’t have to worry about the workers being too busy, because QT8-15 cement block machine for sale adopts automated production. The PLC electric control box can save a variety of operating programs, and can select the corresponding production program for different brick types. Moreover, each production step, the strength and duration of mechanical action can be adjusted, which is very intelligent and automated. The entire QT8-15 cement block machine for sale production line only needs 4-5 workers.
Advantages and core selling points of QT8-15 cement block machine for sale
While pursuing large output, we also pursue the quality of concrete bricks produced by QT8-15 cement block machine for sale. As we all know, strong power and vibration are the key factors affecting the quality of concrete bricks. Therefore, HENRY equipped QT8-15 cement block machine for sale with 44kw power and 100kn vibration. Such a strong vibration can fully guarantee the quality of concrete bricks produced by QT8-15 cement block machine for sale.
QT8-15 cement block machine for sale can realize low-frequency feeding, high-frequency vibration, and simultaneous vibration of the vibration platform and the mold, which can empty the concrete raw materials within 2 seconds and produce high-density and high-strength concrete standard bricks, hollow bricks and pavement bricks.
QT8-15 cement block machine for sale has a larger body size, which is 5350*1700*2700mm, with a total weight of 8500kgs and a molding cycle of 12-15s. Due to the powerful productivity of QT8-15, it needs to be matched with JS750 concrete mixer.
QT8-15 cement block machine for sale is made of thick materials, has a stable structure, and has strong vibration resistance. It adopts advanced vibration system and hydraulic system. It can use industrial waste such as fly ash, slag, cement, sand, etc. as raw materials to reduce production costs, realize resource recycling, and produce strong, smooth and beautiful concrete bricks.
Technical Data
- Tab1
Specification Parameter
| Machine Size | 5300*1700*2700mm |
| Weight | 8500kgs |
| Power Voltage | 415V/380V/220/AC |
| Pallet Size | 960*850*30mm |
| Power of Host Machine | 44KW |
| Forming Period | 12-20s |
| Vibration Force | 80-100KN |
| Mixer model | JS750 concrete mixer |
| Worker | 4-5 Worker |
| Block mould | One set for free |
| Belt conveyor machine | 8 m length |
| Color | Customizable |
| Machinery Test Report | Provided |
| Raw material | Fly Ash Cement Sand Concrete |
| Place of Origin | Shandong |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | QT8-15 cement block machine for sale |
| Warranty of core components | 1 year |
| Applicable industries | Building Material Shops,Construction works |
QT8-15 cement block machine for sale production capacity:
Why choose QT8-15 cement block machine for sale
01.Block mould
The mold of QT8-15 cement block machine for sale is made of extra-thick manganese steel and finely processed by wire cutting. The strength can reach 58HRC and the hardened layer reaches 1.3-1.6mm. High-quality production materials and excellent production and processing technology make the quality of the molds produced by HENRY far exceed the industry standard, with a service life of up to 200,000 times, very strong and non-deformed.
02.Imported brand electronic components
Siemens brand electronic components are world-renowned for their high quality, long life, high energy efficiency, safety, and rapid response, which is also an important reason why QT8-15 cement block machine for sale is equipped with Siemens brand electronic components. The electronic control system of QT8-15 cement block machine for sale has a complete production program and fault diagnosis function, is easy to operate, has a very clear screen, and is very responsive.
03.Hydraulic cylinder
The hydraulic cylinder is a very important accessory of QT8-15 cement block machine for sale. It can not only lower the mold, press, demould and other actions, but also is the key part of QT8-15 cement block machine for sale to achieve automated production. At the same time, it cooperates with the vibration platform to apply pressure to the concrete material in the QT8-15 cement block machine for sale mold, so that the concrete bricks can be formed faster and with better quality. The hydraulic cylinder selected by HENRY has good sealing and strong pressure bearing capacity.
04.Material-Feeding Cart
The function of the Material-Feeding Cart of QT8-15 cement block machine for sale is to quickly fill the concrete material into the mold, which can undoubtedly greatly shorten the production time and improve production efficiency. The Material-Feeding Cart is controlled by the electric control box of QT8-15 cement block machine for sale. The number of times the Material-Feeding Cart feeds can be adjusted according to the mold depth of different brick types to ensure that the concrete material is fully filled in the mold box of QT8-15 cement block machine for sale.
05.Guide bearings
The guide bearing is used to guide the mold of QT8-15 cement block machine for sale to move up and down smoothly to avoid the mold from shifting or tilting. The guide bearing of QT8-15 cement block machine for sale is made of wear-resistant alloy material with low friction, which reduces the friction of the mold, prolongs the service life, and improves the stability of QT8-15 cement block machine for sale operation.
06. Vibration motor
HENRY uses imported Siemens brand motors, which are the “power source” of QT8-15 cement block machine for sale. The vibration motor drives the vibration platform to vibrate, and the vibration frequency can reach several hundred hertz. The vibration frequency will determine the strength of the concrete bricks produced by QT8-15 cement block machine for sale.
Main advantages of QT8-15 cement block machine for sale
Construction workers use concrete bricks produced by QT8-15 cement block machine for sale to build houses
- Real pictures from the scene
Some concrete blocks pictures and parameters (6)
Size:400×200×200mm
8 pieces per mould
1920 pieces per hour
15360 pieces per 8 hours
Size:400×150×200mm
10 pieces per mould
2400 pieces per hour
19200 pieces per 8 hours
Size:400×100×200mm
16 pieces per mould
3840 pieces per hour
30720 pieces per 8 hours
Size:200×160×60mm
15 pieces per mould
3600 pieces per hour
28800 pieces per 8 hours
Size:200×100×60mm
24 pieces per mould
5760 pieces per hour
46000 pieces per 8 hours
Size:225×112.5×60mm
24 pieces per mould
5760 pieces per hour
46000 pieces per 8 hours
QT8-15 cement block machine for sale can produce different block types
What equipment does the entire QT8-15 cement block machine for sale production line need to be equipped with?
QT8-15 cement block machine for sale production line, in addition to this machine, also needs to be equipped with PLD1200 concrete batching machine, JS750 concrete mixer, 8m belt conveyor machine, double pallet stacking machine, 3 tons forklift
Picture display of customers purchasing QT8-15 cement block machine for sale
QT8-15 cement block machine for sale What other supporting equipment is needed for a complete production line (5)
Machine Size 5300*1700*2700mm Weight 8500kgs Power Voltage 415V/380V/220/AC Pallet Size 960*850*30mm Power of Host Machine 44KW Forming Period 12-20s Vibration Force 80-100KN
Mixing motor power 30kw Boost motor power 7.5kw Pump motor power 1.1kw Discharge capacity 750L Feed capacity 1200L Efficiency ≥37.5m³/h Rotating speed of stirring blade 31r/min Hopper lifting speed 18m/min Maximum particle size of bone particles 80mm/60mm Discharge height 1.8-4.5m
Overall size 8000*700*500mm Weight 250kgs Motor power 2.2kw Belt type “V” type complete Conveyor speed 1.2m/second Stories double Steel material angle iron Assembly method detachable Belt material rubber belt wire
Weighing Bucket Capacity（L） 1200L Storage Hopper Capacity（m³） (2-4)×3.5 Theoretical Productivity（m³/h） 56 Proportioning Accuracy ±2% Maximum Weighing Value（kg） 3000 Number Of Batching Species Two-four Feeding Height（M） 2.9 Feed Belt Speed（m/s） 1.25 Power（kw） (3-5)×3 Overall Weight（kg） 3500-5000 Outline Dimension（mm） (6100-12200)×2200×2680
Raw Material fiber and flax Bending Strength more than 60N/mmˆ2 Flexural Modulus more than 4.5*10ˆ3Mpa Impact Strength more than 60KJ/mˆ2 Temperrater tolerance 80-100℃ Thickness 15-50 mm At customer’s request Width/Length At customer’s request
The answer is no. The size of the fiber pallet that QT8-15 cement block machine for sale needs to be equipped with is 960*850mm. The larger the output, the larger the mold, and the larger the fiber pallet size that needs to be equipped. For example, the size of the fiber pallet that QT10-15 hollow block machine needs to be equipped with is 1100*900mm, the size of the fiber pallet that QT4-15 block machine needs to be equipped with is 960*550mm, and the size of the fiber pallet that QT4-20 block machine needs to be equipped with is 850*550mm. Therefore, the size of the fiber pallet equipped with concrete brick making machines of different outputs is also different.
First of all, customers need to inform HENRY’s sales specialists of their country and region, and our sales specialists will give customers the most reasonable suggestions based on the popular brick types in the customer’s area. If customers have their own ideas and requirements, HENRY’s engineering team will also design customer-specific molds based on their suggestions.
The answer is yes. Generally speaking, QT8-15 cement block machine for sale can only produce one brick type with one set of molds. In order to meet this customer demand, HENRY engineers share two brick types with one set of molds. Half of the mold produces one brick type, and the other half of the mold produces another brick type. In this way, QT8-15 cement block machine for sale can produce two brick types with one set of molds.
First of all, we need to consider the output. Customers can choose a concrete brick making machine according to their own output needs. For example, QT8-15 cement block machine for sale can produce 16,000 8-inch concrete hollow bricks in 8 hours. If this output cannot meet customer needs, customers can choose QT10-15 cement block machine for sale with a larger output. Secondly, customers can also choose a concrete brick making machine according to the type of bricks to be produced. For example, QT5-15 cement block machine for sale is more suitable for producing kerbstones, paving interlocking bricks and other brick types.
