HR5-10 super 100 tons press mud brick machine
1. Brand-new family design language, fast-flow giant oil cylinder extrusion molding, the machine body can withstand 500 tons of pressure
2. Airbag clamping brick discharging system, to the greatest extent possible, to avoid bricks from being damaged due to dragging
3. High-yield brick-making machine equipped with stacking machine, bricks are interlocked and stacked up and down, saving pallet costs and floor space
4. One machine for multiple uses, replaces different molds, can produce Lego bricks, hydraform interlocking bricks, CLC interlocking bricks, Hourdis roof bricks, pavement bricks
Full range of 100 ton fast hydraulic quiet mud brick machines
At present, the high-pressure mud brick production business is still very promising, so more and more builders are willing to purchase 100-ton, 200-ton, 300-ton, and even 500-ton silent press machines to produce interlocking mud bricks. in order to compete with their local small mud hydraulic presses, because the pressure of small hydraulic presses is only about 20 tons or 40 tons. Therefore, some visionary builders or individual production bosses are more willing to own a 100-ton press in advance to seize the market in advance.
Technical Data
- Tab1
- Tab2
| Overall size : | 2500*1850*3500mm |
| Weight of host block machine | 6100kgs |
| Host machine rated power | 18.5kw |
| Worker number required | 5-6 workers |
| Brick discharging method: | airbag clamping |
| Compressure power | 100 tons |
| Block forming period | 12-15 seconds |
| Applicable industries
| Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Block machine |
| Raw material | Soil ( cement, clay,earth, mud, lime, fly ash, stone dust and so on ) |
| Block mould | One set for free |
| Mixer model | JQ800 Soil mixer |
| Belt conveyor machine | 8 m length |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump,hydraulic cylinder. |
| Warranty of core components | 1 year |
| Place of Origin | Shandong |
| Unique selling point | 100 tons hydraulic system |
| Color | According to the buyer’s requirement |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | HR5-10 Earth block making machine |
| Quantity/mould | 5 pieces of 300*150*100mm compressed earth block |
| Production area required | 2000-3000 square meters |
| Workshop area | 100 square meters |
| Raw material store workshop | 200 square meters |
| Office | 60 square meters |

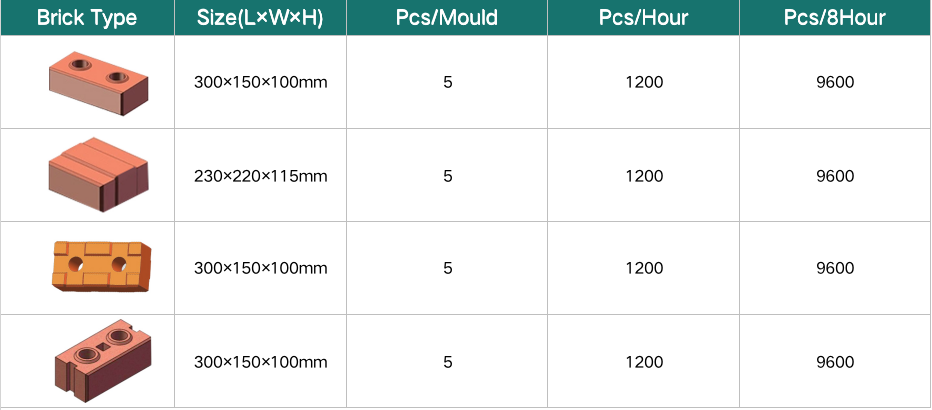

HR5-10 Super 100 tons pressure mud brick machine production output :
HR5-10 100 tons super hydraulic mud brick machine advantages
Aviation hydraulic oil pipe
01. Mud brick machine oil Horse
Henry brick making machine hydraulic oil pipe uses steel wire spiral pipe: high temperature and high pressure resistance, good flange interface sealing, no oil leakage, high-strength steel refined interface, built-in sealing ring gasket to prevent oil leakage
Super cylinder
02. Super hydraulic cylinder
100 tons super cylinder,Guide post and piston rod are plated with hard chrome after intermediate frequency quenching
Tailida Solenoid valve
03. Solenoid valve
safe， Suitable for corrosive, toxic or high and low-temperature media, Fast response, controlled within tens of milliseconds
Mould box for wear-resistant plate
04. Simple and practical
One machine is multi-purpose, and the fixed wire holes are reserved for changing molds. The replacement is simple.
Precision mold platen
05. Block mold template
Carburizing, heat treatment, wear resistance. Wire cutting technology, small error Carbon dioxide protection welding The welding body is firm and does not crack.
Hydraulic power source station
06. 18.5 kw power Embedded hydraulic station
Good sealing performance, fast hydraulic oil return speed, long hydraulic oil circulation cycle, large oil pump energy and large flow
HR5-10 100 tons super hydraulic mud brick machine advantages
Simple project sections and tips
- Gallery
- Data Shete
Mud brick samples for clients to choose (6)
Size: 300*150*100mm
Diameter: 50mm
Compressor ratio: 1:1.9
Output:5 bricks at a time/ 7000 bricks per 8 hours
Size: 300*150*100mm
Diameter: 50mm / Groove depth: 30mm
Comparessor ratio: 1:1.9
Output: 5 bricks at a time/ 7000 bricks per 8 hours
Size: 300*150*100mm
Male depth: 15mm
Compressor ratio: 1:1.9
Output: 5 bricks at a time/ 7000 bricks per 8 hours
Size: 300*150*100mm
Diameter: 50mm with any famous logo
Compressor ratio: 1:1.9
Output: 5 bricks at a time/ 7000 bricks per 8 hours
Size: 225*112.5*60/80mm
Logo: it can be designed
Compressor ratio: 1:1.9
Output: 5 bricks at a time/ 7000 bricks per 8 hours
Size: 300*150*100mm
Diameter: 50mm/ square hole :40*40mm
Compressor ratio: 1:1.9
Output: 5 bricks at a time/ 7000 bricks per 8 hours
HR5-10 mud brick machine test all kinds of earth blocks for customers
- How to choose and compare a interlocking brick press that is suitable for opening a brick starter？
- Kenya U shape ISSB interlocking soil clay earth mud brick molding machine test 50 tons pressure
- Kenya popular clay soil earth interlock brick molding machine at 50 tons strength compression
- Super professional explaining on the clay soil interlocking brick machine of semi automatic diesel
- M7MI twin soil clay brick machine 50 tons pressure test earth hydraform block
How to confirm your final decision on the earth block style
First of all, please tell us which country you are from. Our team will advise customers on the corresponding size and type according to the most used brick types in this market before. Then, customers can ask us to design drawings for them according to their own requirements. Finalize the bricks that the customer wants to produce。
Part of the realistic portrayal of using the Henry mud brick machine
Necessary equipments for HR5-10 mud brick making machine (6)
A soil crusher is for crushing large pieces into small pieces
Soil crusher machine parameters:
Overall size 1500×800×1500 mm Max. Feeding size 300×400 mm Power 5.5kw Capacity(t/day) 7-10T Total weight 320KGS
A Conveyor machine is for transfer from the crushing machine to the sieve machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
Soil sieve machine for screen raw soil into powder
Soil sieve machine parameters:
Power 0.75 KW Capacity 7-10T/day Hole diameter Diameter:4mm Total weight 350KGS dimension(mm)(L*W*H) 1500×800×1200mm
A Conveyor machine is for transfer from the sieve machine to the mixer machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
Mud mixer machine is for mixing soil /clay / earth and cement to be good material
Soil mixing machine parameters:
Overall size 2000(L)×2000(W)×1500(H)mm Shaping cycle 2-3 mins Production capacity 24 m3/h Power 15KW Volume 1500L Total weight 1350KGS
Mud brick tester machine is to test earth block strength
Clay brick tester machine parameters :
Dimmersion 400*300*600mm weight 60kgs Max. Power 55 Mpa Test method manual pressing Cost Free
Usually our mud bricks are naturally dried. After being squeezed and formed by a 100-ton press, the mud blocks have a high density. After being naturally dried, the bricks will be very strong and can be used directly to build houses. Of course, you can also burn bricks to strengthen the quality.
The answer is yes. We will provide installation manuals and installation guidance videos. Suppose these still cannot solve the problem. In that case, we can guide the installation and training via video link or send our Chinese technicians to the customer’s site to guide the installation and personal training until you learn it.
We can provide users with logo lettering services. Considering the display effect of the logo, we recommend not to have too many letters, preferably within 3 letters.
