QT8-15 fully automatic hydraulic fly ash brick making machine production line
1. Adopt a sensitive sensing system, the cylinder stroke is more accurate, an Omron sensor is used, the limit error is small, the brick height is uniform, and the pressure is strong
2. The rake feeding system is scientifically designed, the raw material vibration system is adopted, and the raw materials are uniform
3. The same frequency vibration adopts adjustable vibration frequency, low-frequency feeding, and high-frequency vibration, which not only saves electricity but also ensures the unique requirements of different bricks for vibration force
4. By changing different molds, hollow bricks, pavement bricks, and fly ash bricks of various sizes can be produced
Fully automatic hydraulic fly ash brick making machine production line
Due to the development of heavy industry and the large-scale burning of coal, industrial areas will produce a large amount of fly ash, slag, and carbon slag. These industrial wastes are excellent raw materials for producing fly ash bricks, saving raw material costs and turning waste into treasure.
Fly ash is the main raw material for bricks. It can be mixed with a certain proportion of cement and water to produce standard, solid, and pavement bricks. This type of brick has the characteristics of high viscosity, good density, and smooth surface.
Using Henry brand brick making machine, you can make full use of its high-intensity vibration force and hydraulic pressure to successfully operate a high-profit brick making factory
Technical Data
- Tab1
- Tab2
| Overall size : | 5350*1700*2700mm |
| Weight of host block machine | 8500kgs |
| Host machine-rated power | 44kw |
| Worker number required | 5-6 workers |
| Pallet size | 960*850*30mm(adjustable) |
| Vibration force | 80-100KN |
| Block forming period | 12-15 seconds |
| Applicable industries
| Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works, Block machine |
| Raw material | Concrete ( cement, soft sand, river sand, stone dust, fly ash, aggregate, gravel, cinder and so on ) |
| Block mold | One set for free |
| Mixer model | JS750 concrete mixer |
| Belt conveyor machine | 8 m length |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Warranty of core components | 1 year |
| Place of Origin | Shandong |
| Unique selling point | Fully hydraulic system |
| Color | According to the buyer’s requirement |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | QT8-15 block making machine |
| Quantity / mould | 8 pieces of 400*200*200mm hollow block |
| Production area required | 4500-6500 square meters |
| Workshop area | 120 square meters |
| Raw material store workshop | 650 square meters |
| Office | 60 square meters |
QT8-15 fly ash brick-making machine production capacity:
The advantages of QT8-15 fully automatic hydraulic fly ash brick making machine production line
Top compressing brick making machine cylinder

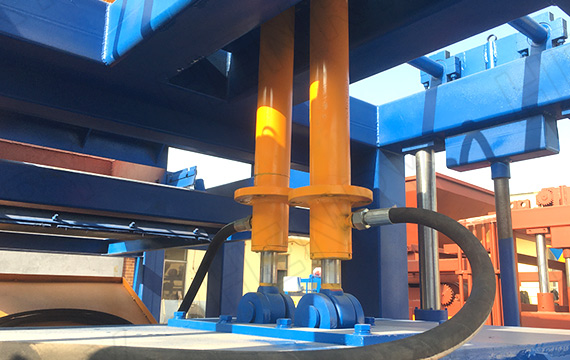

01. Hydraulic cylinder
The excavator-grade hydraulic cylinder used has a longer cylinder stroke, better sealing, obvious circle marks, and will never explode. It has full tonnage, full stroke, locking, and no oil leakage.

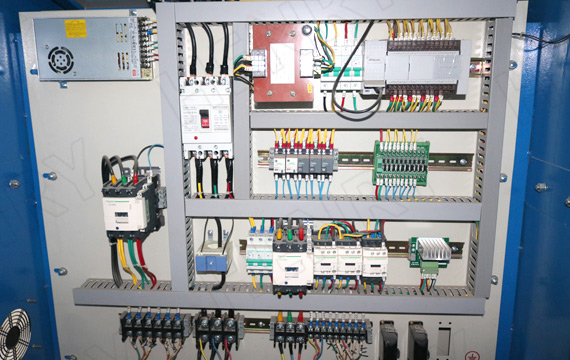

High-quality electrical components
02. Siemens, Schneider brand electronic components
long warranty period, Schneider circuit breaker protection, stable sensing performance, stable voltage, accurate current, Siemens display screen with high definition, no freezing or lag, sensitive touch
Fly ash Brick machine steel material
03. Adopt national standard 345# steel plate, manganese steel has high toughness, high hardness, high strength, good toughness, good wear resistance, crack resistance, adopt double welding, the welding place is strong and durable, not easy to crack
The material - feeding cart
04. The slide rail design reduces the feeding resistance. The manganese steel casting is strong and wear-resistant. The cast bearing has low lubrication resistance. All rail steels are carburized and heat-treated. The rail wear resistance is improved by 3-5 times. The stirring and feeding fork has a multi-level high-density design. There is no dead angle inside the material car to ensure that the mold box receives the material fully.
Hollow block mould
05. The pavement brick mould adopts the whole plate deep hollowing and wire cutting technology with high precision. The vertical plate, mold core and tooth foot plate are all heat treated. The mould has a long service life. The hollow brick mould can be designed with different wall thickness and taper design, which is easy to demould.
Cast iron integrated vibration box
06. vibration box
Dual-axis synchronous inertia is larger, and the vibration force is stronger, With its own breathing valve,it can evacuate the excessive oil temperature caused by the rotation Professional gear steel integral molding, high strength
Electromagnetic inductor
07. Electromagnetic inductor
Accurate sensing, sensitive signal, overflow valve, induction valve integral casting, stable flow, efficient hydraulic oil flow, not easy to clog, built-in filtering system, delaying sensor damage caused by clogging

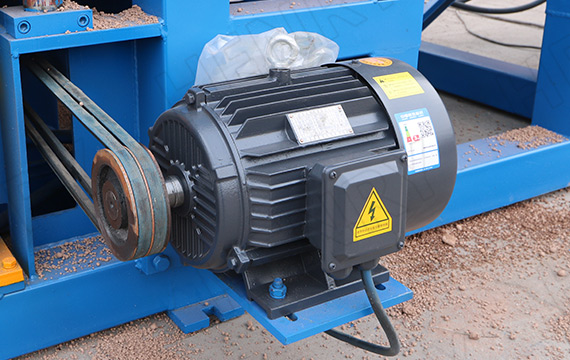

Vibration motor
08.Servo vibration motor with Siemens / Shanbo brand
The vibration frequency range of servo vibration motor can range from a few Hz to hundreds of Hz, or even higher, which can meet the needs of various vibration tests and tests. At the same time, the servo vibration motor can achieve the smooth output of high-frequency vibration
QT8-15 automatic fly ash brick making machine advantages
The real project sections and block laying buildings
- Gallery
- Data Shete
Cement brick samples for clients to choose (6)
Size: length 400* width 200 *height 200 mm
8 pieces per mold
1920 pieces per hour
15360 pieces per 8 hours
Size: length 400* width 100 *height 200 mm
16 pieces per mold
3840 pieces per hour
30720 pieces per 8 hours
Size: length 500* width 150 *height 200 mm
10 pieces per mould
2400 pieces per hour
19200 pieces per 8 hours
Size: length 225* width 112.5 *height 60 mm
24 pieces per mould
5760 pieces per hour
46000 pieces per 8 hours
Size: length 200* width 100 *height 60 mm
24 pieces per mold
5760 pieces per hour
46000 pieces per 8 hours
Size: length 500* width 150 *height 300 mm
5 pieces per mould
1200 pieces per hour
9600 pieces per 8 hours
QT8-15 Automatic brick makig machine test all kinds of fly ash concrete block for customers
- What is the most professional description for QT8-15 block machine complete production line
- QT8-15 hydraulic automatic hollow block machine description with nice painting
- Which necessary euqipments are used for QT8-15 fully automatic block making machine ?
- How to operate a fully automatic concrete block making machine correctly ?
How to confirm your final decision on the fly ash hollow block style ?
First of all, please tell us which country you are from. Our team will advise customers on the corresponding size and type according to the most used brick types in this market before. Then, customers can ask us to design drawings for them according to their own requirements. Finalize the bricks or blocks that the customer wants to produce。
Part of the realistic portrayal of using the Henry fly ash brick making machines
Necessary equipments for QT8-15 Automatic brick makig machine complete production line (8)
Cement silo for cement storage and supplying cement to batching plant
Cement storage silo parameters:
Production capacity : 100 tons Tank diameter : 3 meter Vertebral height： 2.5m tank height 8m Landing leg 1.96m( Customized) discharging height 1.96m Clean type YCD-2 Tank thickness Aboved 4mm, middle 5mm, below 6mm Assembly method assembled and detachable
The cement screw machine is for transferring cement to the batching machine
Screw conveyor machine parameters :
Overall size : 8000*219*500mm Weight 250kgs rated power 3 kw Diameter (mm)： 219 mm Wall thickness(mm)： 6mm Handling Capacity (m3/h)： 20m3/h Conveyor way Spiral Connection way Flange
Concrete batching machine is for weighing and batching different size of gravel and stone powder
PLD1200 batching machine data:
Overall size : 7500×2200×2500mm Weight 4500kgs rated power 8.8 kw Total hopper capacity： 1200L Storage hopper capacity： 3*2.5m3 Production capacity: 56m3/h Height of Adding Material： 2.8m Belt speed： 1.25m/s Product name PLD1200 batching plant machine
JS750 concrete mixer is for mix cement, sand, stone dust , gravel, and aggregate together for block materials
JS750 Mixer Parameters data :
Overall size : 3636*2805*2630mm Weight 5500kgs rated power 39 kw Charging volume: 1200L Discharging 750L capacity: 35m3/h mixing motor: 30 KW Lifting motor 7.5KW Water pump power: 1.1KW
The belt conveyor is for conveying mixed material from mixer to a block machine hopper
The belt conveyor parameters :
Weight: 250 kgs Overall size: 8000*700*500mm Motor power ： 2.2 kw Belt type: “V” type complete Conveyor speed: 1.2 m / second Stories double steel material angle iron Assembly method detachable Belt material Rubber belt wire
Cement scale is for scale cement quantity then transfer cement to batching machine
Cement scale parameters:
Volume of weighing hopper : 0.4m3 Batching precision: ±1％ Maxmum scale powder material： 500kgs Graduation value 2kg,5 kg, 10kg number of sensor 4,6,8 sensor type pressure sensor display model digital display, tensile sensor interface model RS232, RS485 Protection level IP67/IP65
The double pallet stacking machine is for palletizing and stacking blocks to be more stories.
Double stacking machine parameters:
Overall size： 2500*1770*2400 mm: Power (KW)： 3KW Speed 0.5M/S Stacker layer 3-4 layers Total weight： 1500KGS stacking method clamp handle stacking accuracy 5mm safety performance anti-pinch, anti-collision Pallet size Adjustment size
3 tones diesel engine forklift for carrying bricks out
3 tons forklift parameters:
Tyre style solid tyre Mast lifting maximum height 3000mm Fast driving speed 18/19km per hour Overall length 2700*1225*2700mm Fork size 1070*122*45mm Applicable industrials logistic transport Engine type wei chai brand Loading capacity 1000-3000 kgs Weight 4300kgs
No, this brick making machine has a larger body and a larger mold size. For example, the weight of a hollow brick of 400*200*200mm is about 800 kg, and the pallet size is 960*850*30mm, which is much larger than the QT4-20 pallet of 850*550*20mm, and the mold is only 320kgs.
All brick making machine models are recommended to use industrial three-phase electricity. Three-phase electricity has sufficient power. After all, single-phase electricity cannot provide enough power. However, for small equipment QMR2-45, QTJ4-35A, these small brick making machines, we can provide single-phase electricity, but only for customers who do not have too high requirements for brick quality.
The answer is yes. If the customer really plans to add colored pavement brick molds later, he must inform our sales staff when placing an order so that we can make a pavement brick system when producing the current brick-making machine. It is impossible to add a colored feeding system separately later.
The answer is yes. The pressure can be adjusted. It can be adjusted in a small range by the proportional valve position knob on the hydraulic station. However, we had to set the oil pressure of the brick-making machine before leaving the factory. Moreover, we adjust it according to the different bricks produced by customers. Therefore, please do not adjust the pressure by yourself without special circumstances, which will cause pressure confusion and the motor or the oil pump to be blocked.
Of course, our pallets are sold separately. If the user can purchase standard-sized pallets locally, we will provide the pallet size, and the user can customize it locally or import it from other companies.
