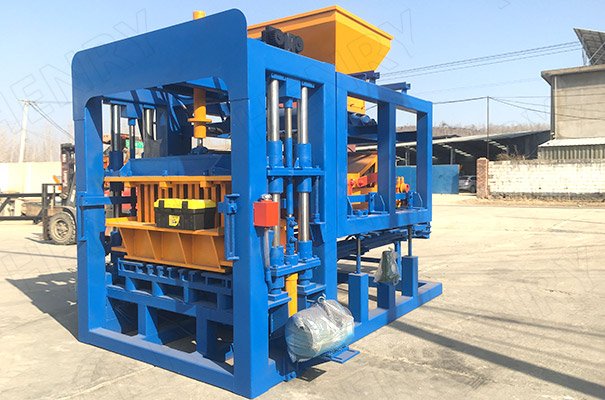

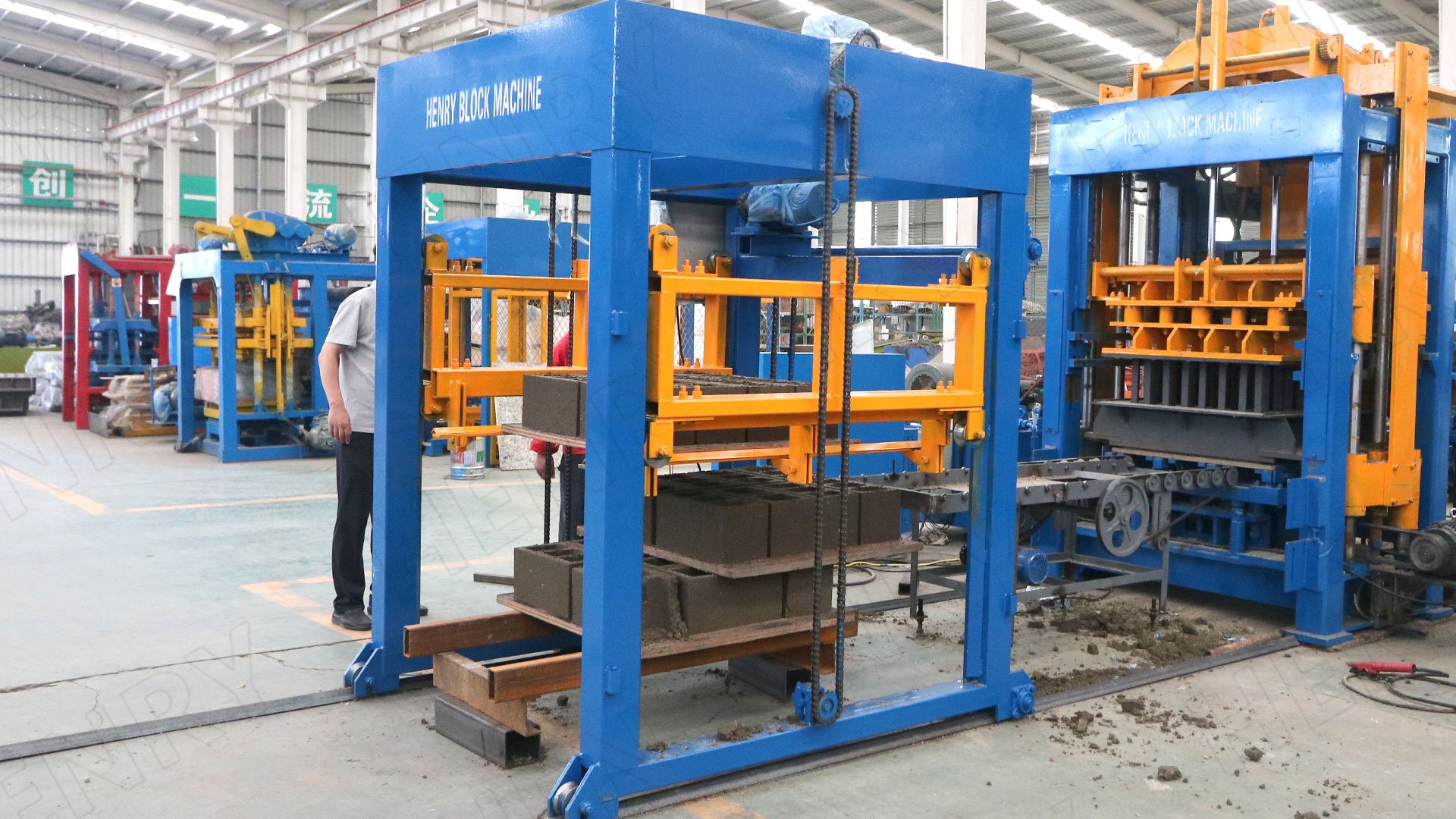

Who would choose QT6-15 fully automatic brick making machine?
- Users who are overly concerned about the output: Henry QT6-15 has an extra-large 960*700mm pallet space, which can achieve multiple outputs at a time
2. Users who are very concerned about the pressure density of bricks: Henry QT6-15 is equipped with an 11kw hydraulic station motor and a 350-model pump, which is powerful and can adjust the hydraulic power debugging range to 35Mpa. At the same time, we use two 7.5kw high-speed vibration motors, combined with the use of frequency converters, to achieve the characteristics of low-speed fabrication and high-speed vibration, which not only saves power but also achieves high-frequency vibration molding
3. Users who pay special attention to cost-effectiveness: Henry’s QT6-15 is equipped with tooling assembly machines, and all parts on the machine are standardized parts. While we maximize the cost reduction in the production process, we strive to ensure the quality of the fully automatic brick-making machine
4. After-sales service is the lifeline of all companies’ fully automatic brick-making machines: no matter what brand of motor, hydraulic cylinder, or sensor your fully automatic brick-making machine uses, if there is no perfect after-sales service and training system and service personnel, it is difficult for the fully automatic brick-making machine to have a long life.
Which kinds of necessary equipments will comes with QT6-15 automatic brick making machine ?
- JS500 Concrete mixer machine
- 8m long belt conveyor machine
- Double-row stacking machine
- Forklifts or trolleys of block-carrying
- PLD800 two-hopper batching machine (If you have requirements on different sizess of stones/gravel for loading )
- 50 tons storage of cement silo
How to choose a concrete mixer to match QT6-15 automatic brick making machine?
QT6-15 automatic brick-making machine can produce 1440 pieces of 400*200*200mm hollow concrete blocks which is about 15kgs in weight ,so the total material of cement hollow blocks are 1440*15kgs=21600kgs. and HENRY JS500 concrete mixer Production capacity is mixing 1100 kgs includes 50kgs cement + 50kgs water + 1000kgs concrete material per within two minutes . so mixer will provide 33000 kgs of concrete material for QT6-15 automatic brick making machine .

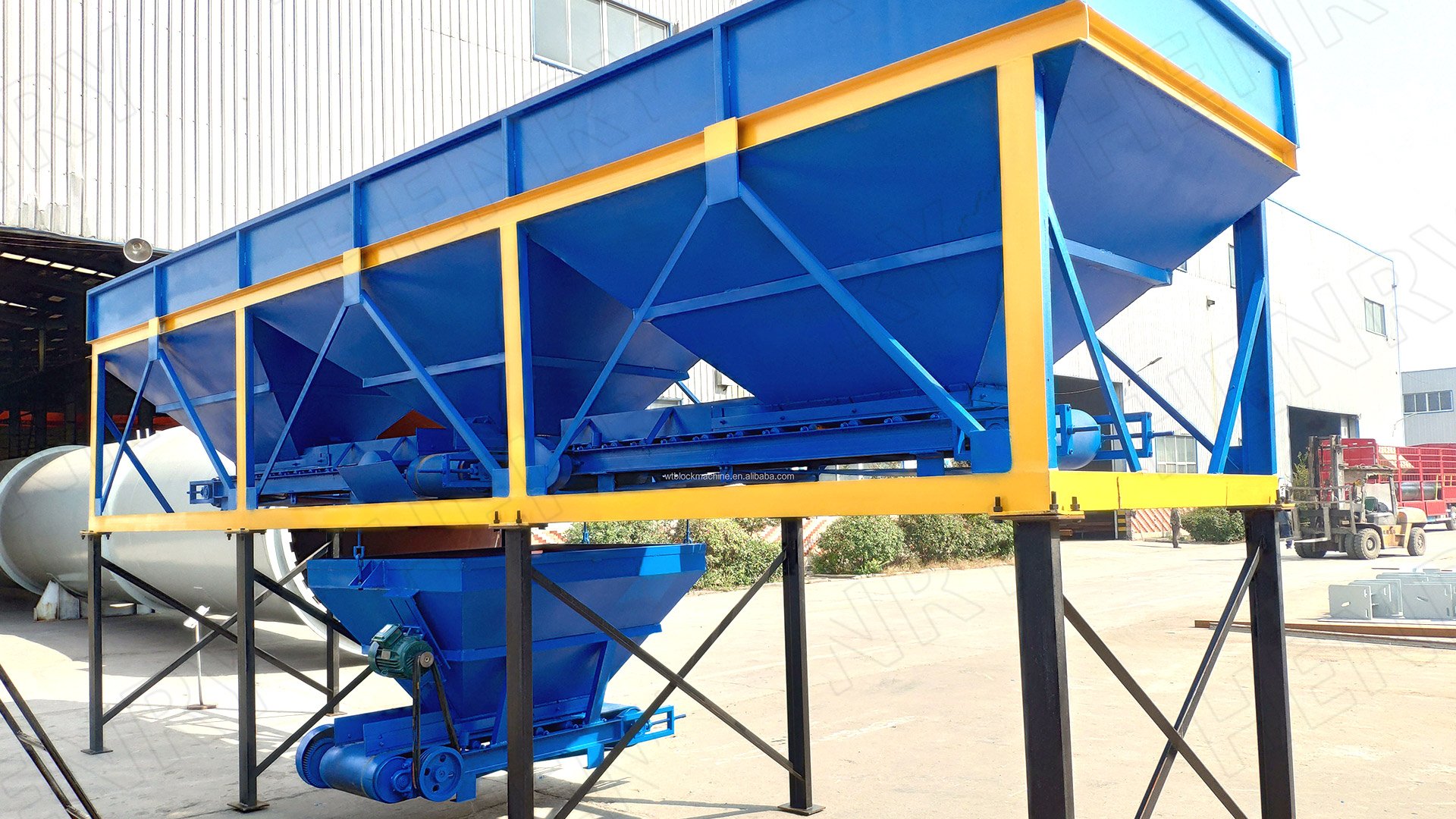

PLD 800 Concrete batching plant is optional for your QT6-15 automatic brick making machine
If you have more than one kind of stone size, and then you need to be equipped with a batching plant to weigh the material with cement. so the PLD 800 concrete batching plant can weigh different sizes of stones or gravel in different hoppers and transfer them into a concrete mixer hopper to mix.

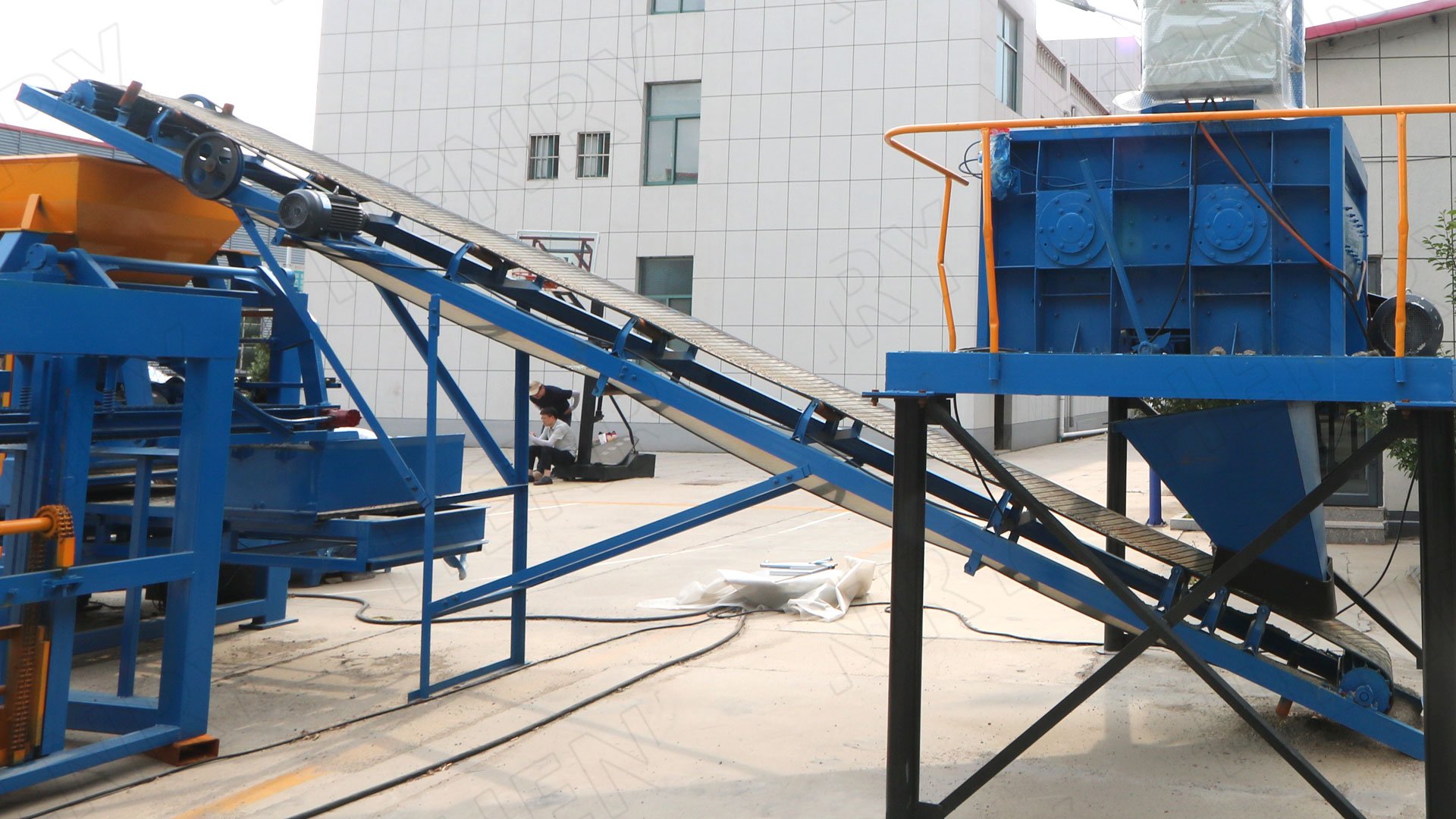

How to equip a correct conveyor machine to QT6-15 automatic brick making machine ?
Henry uses V-shaped integrated conveyor belts with high friction and fast transportation speed.
Which kind of brick stacking machine will be suitable for QT6-15 automatic brick making machine ?
1. Henry palletizer uses the most advanced four-axis balancing device, which moves smoothly and prevents bricks from being damaged due to large shaking and swinging
2. It uses a linear pendulum reducer, which runs smoothly and has a controllable speed
3. It uses precise sensors, and the stacking movement or lifting position is accurate without error

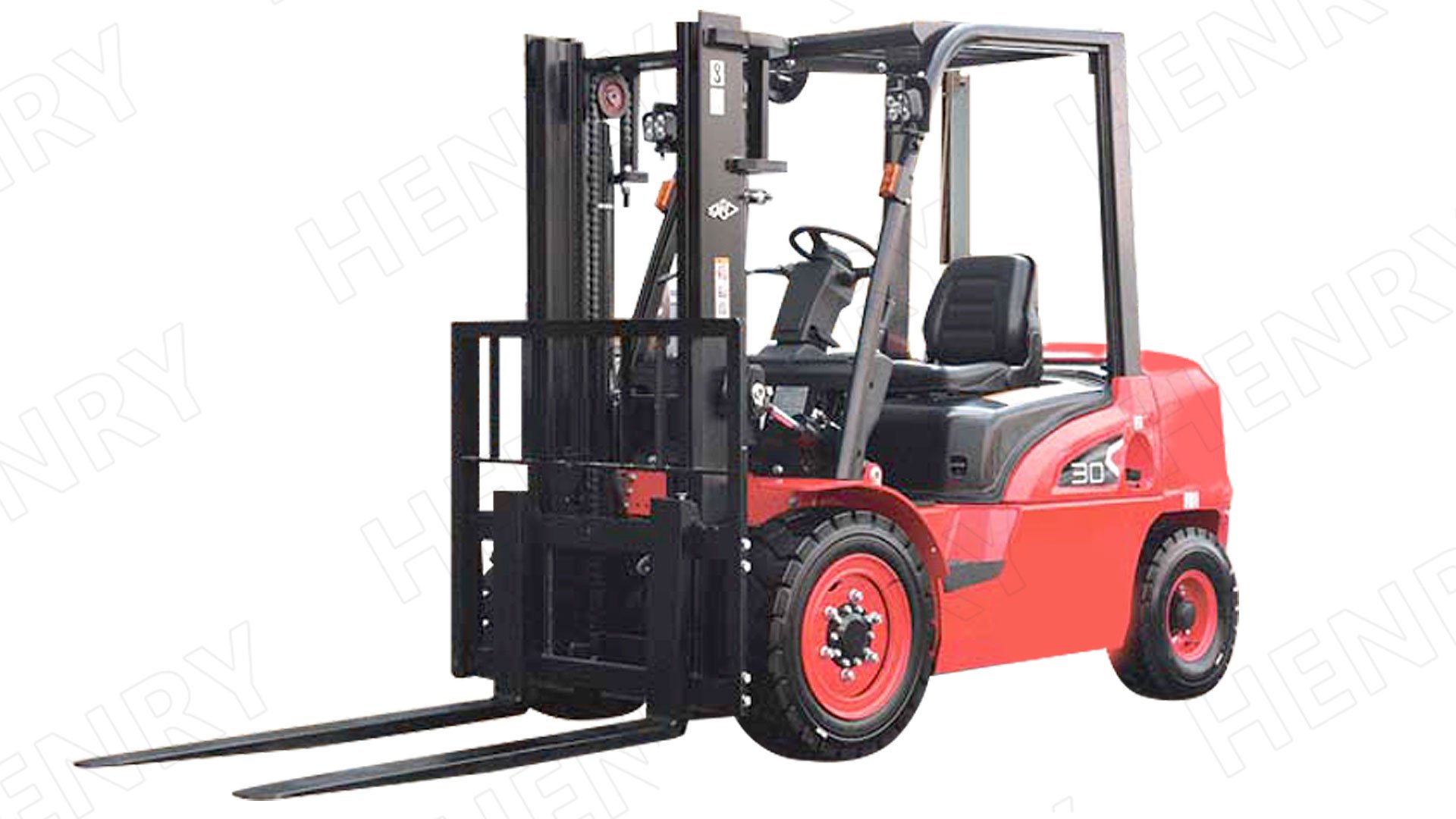

A forklift is also needed to transfer the finished bricks on the pallet
Henry uses the best Chinese brands, such as Hangcha or Heli three-ton diesel forklifts, which have powerful diesel engines and very stable performance.

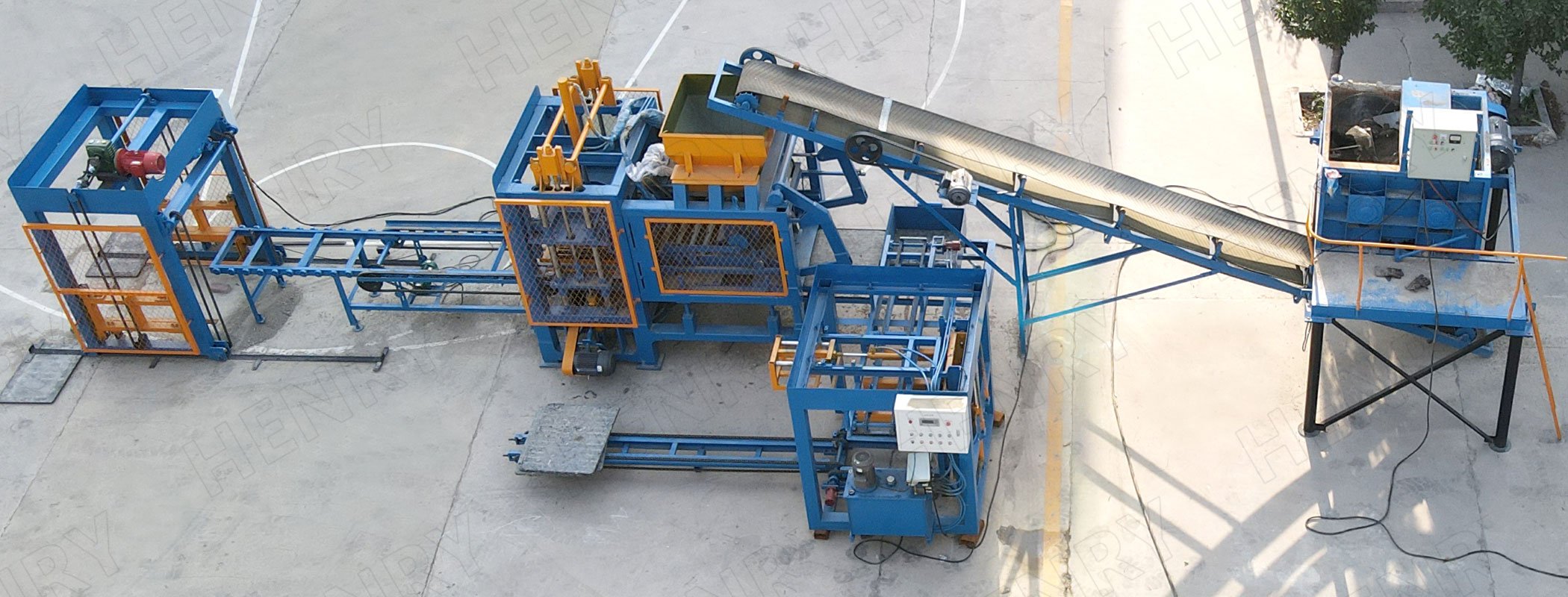

HENRY supply all kinds of different capacity of fully automatic brick making machine production line
According to different customer requirements for output and pressure as well as different overall prices, Henry can provide fully automatic brick-making machines of different models and outputs.
QT6-15 automatic brick machine technology datas:
- Technology datas

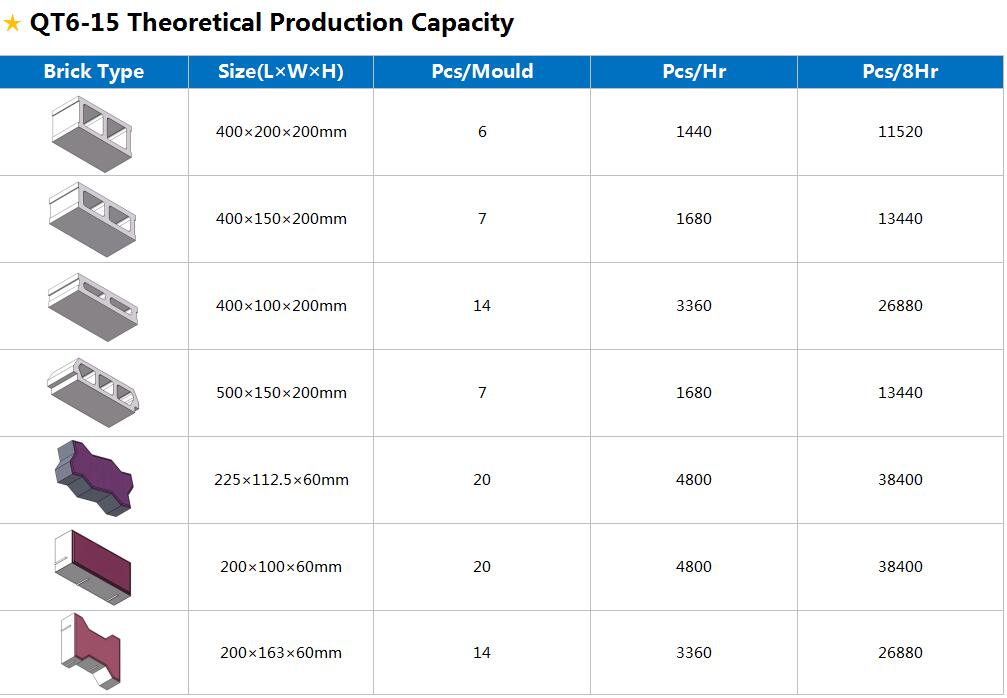

- Brick production output:
| Overall size : | 4350*1560*2400mm |
| Weight of host block machine | 8000kgs |
| Host machine rated power | 30kw |
| Worker number required | 5-6 workers |
| Pallet size | 960*700*25mm(adjustable) |
| Vibration force | 70-90KN |
| Block forming period | 12-15 seconds |
| Applicable industries
| Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Block machine |
| Raw material | Concrete ( cement, soft sand, river sand, stone dust, fly ash, aggregate, gravel, cinder and so on ) |
| Block mould | One set for free |
| Mixer model | JS500 concrete mixer |
| Belt conveyor machine | 8 m length |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Warranty of core components | 1 year |
| Place of Origin | Shandong |
| Unique selling point | Fully hydraulic system |
| Color | According to the buyer’s requirement |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | QT6-15 block making machine |
| Quantity / mould | 6 pieces of 400*200*200mm hollow block |
| Production area required | 4000-6000 square meters |
| Workshop area | 100 square meters |
| Raw material store workshop | 600 square meters |
| Office | 60 square meters |
Get More Operation Videos
How to operate your fully automatic brick making machine correctly and professionally?
1. If you have three kinds of aggregates, you can choose the 3-bin batching machine PLD1200 model. Henry’s batching machine uses time control or weight control to proportion the raw materials accurately
2. After accurate batching, the raw materials are conveyed to the mixer lifting hopper, which is lifted to the mixing tank. After 3 minutes, the mixing is completed
3. The conveyor belt quickly conveys the raw materials to the secondary swing hopper of the brick-making machine

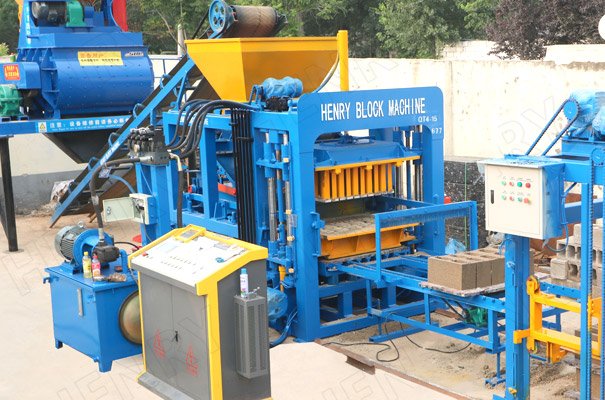

4. Henry’s intelligent, fully automatic brick-making machine vibrates and extrudes to form cement concrete hollow bricks
5. After the drag plate conveys the concrete bricks, the wet cement bricks can be stacked into five layers through the automatic stacking machine
Generally speaking, the hydraulic system is definitely better and more convenient to use, with higher pressure and smoother mechanical operation. However, some customers think that the hydraulic system is easy to break, especially in Africa, and they are worried that if the hydraulic system breaks down, it will be difficult to repair. The hydraulic system is mainly the hydraulic cylinder, which is a wearing part. If it breaks down, replace the hydraulic cylinder.
Ten years ago, our peers used more hydraulic vibration motors to provide vibration force for brick-making machines. However, when using brick-making machines, customers often forgot to change the hydraulic oil, which caused the hydraulic oil to become dirty. In this way, the hydraulic motor was easily blocked, and the motor was easily broken, delaying the normal production of the customer’s brick factory. Relatively speaking, motor vibration motors are all made by domestic first-line brands or Siemens or ABB motors. As long as the customer’s voltage is stable, the motor will not break down.
As long as the customer prepares the foundation, electricity, water, cement, sand and other raw materials in advance, Henry’s technicians will arrive at the customer’s brick factory and guide the customer on how to install the brick making machine, batching machine, mixer, cement silo, palletizer and other supporting equipment. Generally, the installation and training takes 15 days.
