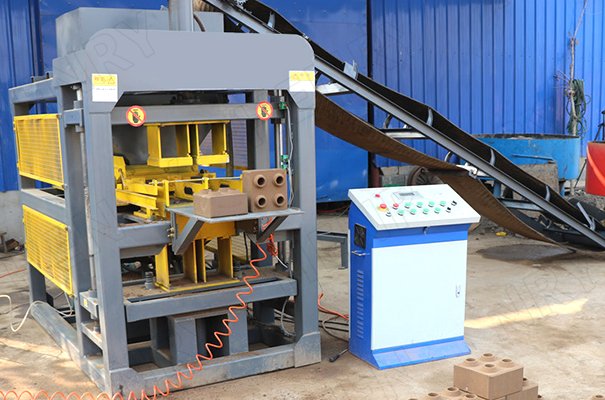

The most classic M7M1 Hydraform interlocking block making machine

1.Prepare the raw materials needed to produce Hydraform interlocking blocks, including clay, sand, cement, etc. The clay needs to be small and uniform in size, avoiding the presence of impurities such as small stones and tree roots, and the salt and limestone content in the clay should not be too high.

2.Pour the prepared raw materials such as clay, sand, cement, etc. into the JQ200 mixer of the M7M1 Hydraform interlocking block machine, and then add an appropriate amount of water. Too much or too little water will affect the forming of the Hydraform interlocking blocks. Open the operating lever and start stirring for 2-3 minutes.

3.After the mixing is completed, open the JQ200 discharge port, use a bucket to catch the evenly mixed clay raw materials, and pour the clay raw materials into the mold box of the M7M1 Hydraform interlocking block machine.

4.The worker manipulates the operating lever of the M7M1 Hydraform interlocking block machine, and the upper and lower cylinders simultaneously apply 20 tons of hydraulic pressure to the clay raw materials in the mold. It takes 15-20 seconds for the Hydraform interlocking blocks to be compressed and formed.

5.Workers move the Hydraform interlocking blocks to a cool and ventilated place to air dry after they have been formed and demoulded. After 2-3 days, the Hydraform interlocking blocks are completely dry and can be used by construction workers to build hydraform bricks houses.
