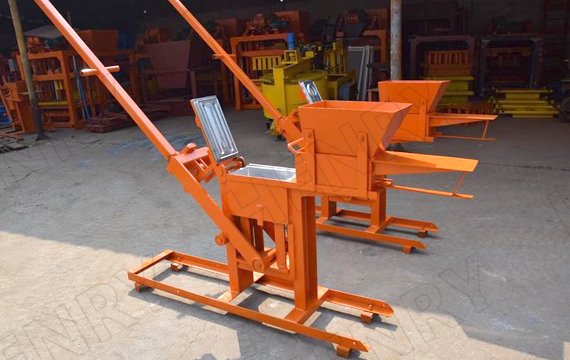

The HR1-30 eco brick machine features the lowest price and purely manual operation.
The HR1-30 eco brick machine is operated entirely by hand; through manual operation, it compresses clay raw materials to produce standard-sized clay bricks. The production process requires neither electricity nor diesel power—only manual labor—enabling the manufacture of safe, eco-friendly clay bricks with lower initial investment and production costs. Furthermore, the clay brick machine is incredibly easy to use and quick to master, requiring no prior manufacturing experience. With its minimal investment cost and simple operation, it is an ideal choice for small-scale brick-making startups and family-run ventures.
What are the unique advantages and selling points of the HR1-30 eco brick machine?
First, there is the economic and cost advantage, which is the most outstanding feature of the HR1-30 eco brick machine. The HR1-30 eco brick machine is affordably priced—available for just a few hundred US dollars—making its investment cost extremely low compared to fully automatic brick-making machines that cost tens of thousands of dollars. Additionally, the HR1-30 eco brick machine is compact in size and volume; measuring 1000 x 700 x 1100 mm and weighing 220 kg, it incurs very low shipping costs. Next is the advantage regarding production costs: the HR1-30 clay brick machine produces clay bricks entirely by hand, requiring no electricity or diesel power. In other words, the machine consumes no energy during the brick-making process, a unique production method that minimizes costs to the absolute limit.
Secondly, the machine stands out for its safety and environmental friendliness, serving as a model of green construction. The primary raw material for the clay bricks produced by the HR1-30 eco brick machine is clay; this can be sourced directly from the construction site and used after simple crushing, making raw material acquisition both easy and extremely low-cost. By adding 8–10% cement and an appropriate amount of water—followed by thorough mixing—the raw material blend is ready for production. The HR1-30 eco brick machine uses clay as its primary raw material, thereby reducing production costs and eliminating the high transportation expenses associated with moving materials to remote areas. Clay bricks produced by the HR1-30 clay brick machine do not require high-temperature firing; they need only natural curing, making the process eco-friendly and helping to protect the local environment.
Thirdly, the machine offers simple operation and flexible production. As a manual eco brick machine, the HR1-30 eco brick machine requires no electrical, hydraulic, or diesel power systems; workers simply operate it by manually pressing a lever. The operation is straightforward, and the entire production process can be handled by a single person, making the HR1-30 eco brick machine an excellent choice for remote rural areas lacking reliable electricity or diesel fuel. Furthermore, the HR1-30 clay brick machine features a simple, highly durable design that requires virtually no maintenance and boasts an exceptionally long service life.
Technical Data
- Tab1
Specification Parameter
| Overall size | 1000×700×1100mm |
| Shaping cycle | 20s-30s |
| Rated pressure | 8Mpa |
| Mold replaced | Yes |
| OEM | Yes |
| Mold treatment | Carburizing treatment |
| Worker | 1Worker |
| Block mould | One set for free |
| Total weight | 220Kg |
| Color | Customizable |
| Machinery Test Report | Provided |
| Raw material | Clay, soil, mud, cement |
| Place of Origin | Shandong |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | HR1-30 eco brick machine |
| Warranty of core components | 1 year |
HR1-30 eco brick machine production capacity:
Reasons why Purely manual HR1-30 eco brick machine is becoming more and more popular
01.Strength steel plate
As the structural framework of the HR1-30 eco brick machine, the main body must withstand the pressing forces generated during clay brick production. To ensure the machine’s long-term stability and service life, we apply strict selection criteria regarding the strength and toughness of the steel plates. Consequently, we utilize high-strength Q235B structural steel; this material offers excellent strength, toughness, and wear resistance, thereby guaranteeing the stable operation of the HR1-30 China brick machine.
02.Block mould
The HR1-30 eco brick machine supports multiple mold sets, allowing customers to produce a variety of brick types—such as interlocking clay bricks, U-shaped bricks, and CLC bricks—using a single machine to meet diverse construction needs. Furthermore, changing molds on the HR1-30 eco brick machine is a simple process that takes just ten minutes; we provide customers with detailed instructional videos. The molds themselves are manufactured using high-quality steel plate and wire-cutting technology, ensuring high strength and precise dimensions.
03.Comprehensive after-sales service team
A comprehensive after-sales service team is crucial to ensuring the long-term operational success of the customer. Simply knowing how to operate the HR1-30 eco brick machine is far from sufficient; the technology of clay brick production involves a range of specialized knowledge—beyond just operating the machine—such as the selection and proportioning of clay raw materials and the proper curing of the finished bricks. A professional after-sales team can provide systematic training to help customers quickly master all these essential skills.
04.Advanced manufacturing processes

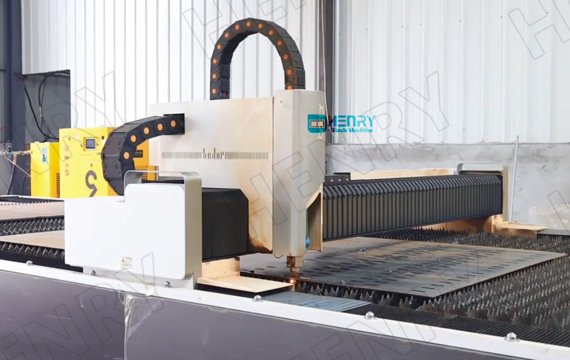

We have specialized in the R&D, design, manufacturing, and sales of eco brick machine for over 20 years. Backed by extensive production experience and more than 40 patented technologies, we operate multiple production lines equipped with advanced machinery, including CNC machine tools, laser cutting machines, and wire-cut EDM equipment. We remain attentive to the evolving needs of domestic and international customers, continuously innovating to deliver brick-making machinery that ensures customer satisfaction.
What are the main features of the HR1-30 eco brick machine?
Construction workers use soil bricks produced by HR1-30 eco brick machine to build houses
- Real pictures from the scene
Some clay soil bricks pictures and parameters (6)
Size:230×220×115mm
1 piece per mould
120 pieces per hour
960 pieces per 8 hours
Size:300×150×100mm
1 piece per mould
120 pieces per hour
960 pieces per 8 hours
Size:300×150×100mm
1 piece per mould
120 pieces per hour
960 pieces per 8 hours
Size:225×112.5×60mm
1 piece per mould
120 pieces per hour
960 pieces per 8 hours
Size:300×150×100mm
1 piece per mould
120 pieces per hour
960 pieces per 8 hours
Size:150×150×100mm
2 pieces per mould
240 pieces per hour
1920 pieces per 8 hours
HR1-30 eco brick machine can produce different clay soil bricks types
- Manual soil clay interlocking stabilized eco brick machine test hand press LEGO block for India
- If you were a beginner, would you choose a manual eco brick machine, semi-automatic or automatic one?
- How to enlarge compress strength or press ratio with manual soil earth interlock paving eco brick machine
- Easy-to-operate, purely manual eco brick machine

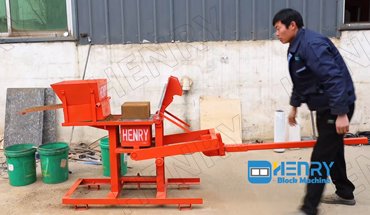

How to correctly operate the HR1-30 eco brick machine to produce clay bricks
First, prepare the raw materials by combining clay, cement, and water in the proper proportions and mixing them thoroughly. Workers pour the prepared mixture into the mold box of the HR1-30 eco brick machine, moving the box back and forth to ensure the lower mold cavity is completely filled, and then close the mold. The worker firmly presses down on the operating lever of the HR1-30 clay brick machine with both hands to compact the raw clay material in the mold; the mold is then released, completing the production of the clay brick.
Customer case studies for the HR1-30 eco brick machine
HR1-30 eco brick machine What other supporting equipment is needed for a complete production line (5)
Overall size 1000×700×1100mm Shaping cycle 20s-30s Rated pressure 8Mpa Mold replaced Yes OEM Yes Mold treatment Carburizing treatment Worker 1Worker Block mould One set for free Total weight 220Kg
Overall size 1500*800*1500mm Max.feeding size 300*400mm Power 5.5kw Capacity 7-10 ton Total weight 320kgs
Power 0.75kw Capacity 7-10 ton Hole diameter 4mm Total weight 350kgs Dimension 1500*800*1200mm
Mixing Motor Power 5.5kw Production Capacity 16m³/h Feed Capacity 350L Efficiency ≥15m³/h Rotating Speed Of Stirring Blade 35r/min Maximum Particle Size Of Bone Particles 8mm/6mm Reducer Model 315
Weight 150kgs Size 4000*700*400mm Motor power 1.5kw Belt type “V”type Speed 1.5m/second
The strength of clay bricks depends on three factors: the quality and mix ratio of the raw materials, the hydraulic pressure and compression ratio applied during production, and proper curing. Red soil containing cohesive particles is the preferred clay material for brick production. Determining the optimal cement mix ratio based on the specific properties of the local clay is the first—and a crucial—step in ensuring the strength of bricks produced by the HR1-30 eco brick machine.
Next is the hydraulic pressure. Although the HR1-30 eco brick machine is operated manually, it generates a pressure of 8–10 MPa—sufficient to compress the raw clay in the mold into highly dense bricks.
Finally, there is the curing process. Once formed, the bricks require a minimum of seven days of proper curing; for maximum strength, a full 28-day curing period is necessary. High-quality raw materials, standardized production methods, and proper curing ensure that the clay bricks produced by the HR1-30 clay brick machine are exceptionally strong.
Clay bricks feature an interlocking design that provides inherent seismic resistance, allowing them to easily withstand typical small-to-medium earthquakes. To further enhance seismic performance, the most effective method is to insert steel reinforcement bars into the brickwork and pour concrete to form concealed columns, thereby enabling the structure to withstand strong earthquakes.
First, optimizing the raw material mix by increasing the cement content is one of the simplest and most effective ways to enhance the water resistance of clay bricks produced by the HR1-30 clay brick making machine for sale in usa. Second, incorporating a waterproofing agent—such as the Masterseal 550 additive—into the raw clay material can significantly improve the bricks’ water resistance.
The clay brick technology originated with a South African company in 1988 and is now used in over 80 countries worldwide. Its core advantage lies in the use of clay as the primary raw material, requiring only a small amount of cement, making it a low-cost and eco-friendly building material. Another key feature is the interlocking design, which allows the bricks to fit together—much like building blocks—resulting in a highly stable and robust wall structure.
This depends on local climatic conditions. In arid regions with little rainfall, one might consider omitting the plaster finish or applying plaster only to critical areas such as around doors, windows, and the base of the walls. Conversely, in humid and rainy regions, we recommend applying a plaster finish to reinforce the exterior walls; waterproofing is the most crucial and effective measure for extending the service life of any building material, and plastering prevents moisture penetration, protects the wall structure, and prolongs the lifespan of the building.
Protect the clay bricks from direct sunlight during the curing process by erecting a sunshade or covering them with plastic sheeting; this prevents rapid moisture evaporation, which could lead to cracking. Clay bricks produced by the HR1-30 used clay brick making machine for sale require watering once or twice daily during the curing period to ensure proper hydration; if the local climate is hot and dry, the frequency of watering may be increased accordingly.
