QT6-15 fully automatic hydraulic block making machine production line for sale
QT6-15 is a benchmark product model developed by the Henry brand in the context of pursuing extreme automation, high production efficiency, and intelligent parameter setting. QT6-15 is different from previous hydraulic block machine models. It has a wider body and increases the output by increasing the mold size. We have made a lot of efforts to improve the synchronous and frequency vibration force of the hydraulic block machine. That is, not only to ensure the increase in output, but also to better distribute the proportion of raw materials with the increase of concrete raw materials, to achieve low-frequency feeding, high-frequency vibration molding, reasonable allocation of vibration start-up time difference, intelligent detection of the overall density and strength of the block, and achieve a uniform state during the entire hollow block extrusion process.
QT6-15 Fully automatic hydraulic block making machine production line for sale
1. QT6-15 has a unique material storage and batching system to ensure accurate and sufficient feeding, avoid the influence of external temperature, and make the block density high.
2. Synchronous vibration is used to ensure uniform molding of products and consistent height of left and right bricks, and the frequency can be changed according to different bricks, low-frequency feeding, and high-frequency vibration so that different materials have the best vibration mode.
3. Computer fault diagnosis system, alarm signal, and automatic troubleshooting of machinery, combined with the remote control system, can realize monitoring, control, and diagnosis.
4. PLC intelligent control: The human-machine interface, the control system, has complete logic control, production program, fault diagnosis system, and remote control function. Therefore, no professional personnel are required; only simple operator training is required.
5. It can produce a variety of bricks/blocks such as colored pavement bricks, interlocking bricks, curb bricks, hydraulic bricks, hollow bricks, porous bricks, standard bricks, etc.
Technical Data
- Tab1
- Tab2
| Overall size : | 4350*1560*2400mm |
| Weight of host block machine | 8000kgs |
| Host machine rated power | 30kw |
| Worker number required | 5-6 workers |
| Pallet size | 960*700*25mm(adjustable) |
| Vibration force | 70-90KN |
| Block forming period | 12-15 seconds |
| Applicable industries
| Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Block machine |
| Raw material | Concrete ( cement, soft sand, river sand, stone dust, fly ash, aggregate, gravel, cinder and so on ) |
| Block mould | One set for free |
| Mixer model | JS500 concrete mixer |
| Belt conveyor machine | 8 m length |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Warranty of core components | 1 year |
| Place of Origin | Shandong |
| Unique selling point | Fully hydraulic system |
| Color | According to the buyer’s requirement |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | QT6-15 block making machine |
| Quantity / mould | 6 pieces of 400*200*200mm hollow block |
| Production area required | 4000-6000 square meters |
| Workshop area | 100 square meters |
| Raw material store workshop | 600 square meters |
| Office | 60 square meters |

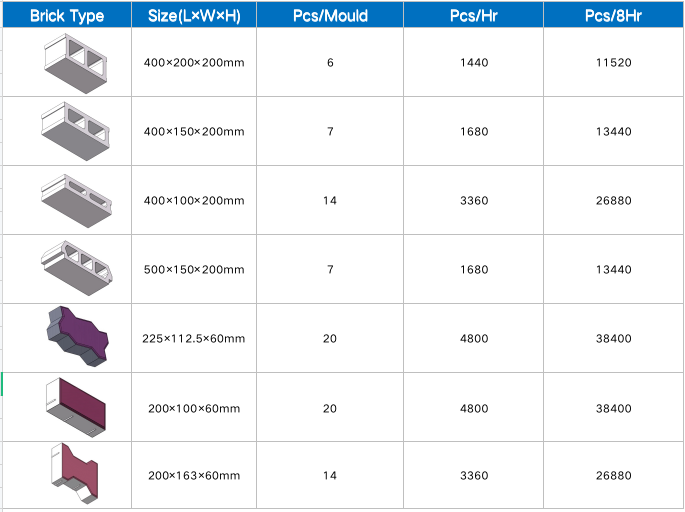

QT6-15 block making machine production capacity:
The advantages of QT6-15 fully automatic hydraulic block making machine production line
Block making machine cylinder
01. Hydraulic cylinder
The compaction cylinder uses a 50-ton pressure to provide pressure while pressing down to ensure the upper pressure of the bricks. The computer intelligent signal realizes the sensing ability. When it cannot be pressed, lift the mold and press down again to repeat the dot matrix pressure.
Block making machine Horse
02. concrete block -making machine oil Horse
Steel wire spiral hose Bear high temperature and high-pressure Flange interface sealed well no oil leakageSteel wire spiral hose Bear high temperature and high-pressure Flange interface sealed no oil leakage.
Brick making machine body frame steel material
03. Adopt national standard 345# steel plate, which has high strength, good toughness, good wear resistance and crack resistance. It is very suitable for the latest welding processes such as argon arc welding and carbon dioxide shielded welding, and has particularly good crack resistance.
The material feeding cart of brick making machine
04. The slide rail bearing design reduces the feeding resistance of the material cart. The manganese steel casting is strong and wear-resistant. The cast bearing has low lubrication resistance. The guide rail is carburized and heat treated to extend the wear-resistant life cycle by 3-5 times.
Block making machine hollow block mould
05. The core wear parts of the mold are carburized and heat treated, and can be used 2 million times, with wear resistance. The wire cutting process has an error as small as 0.05mm. Carbon dioxide protection welding ensures a firm weld without cracking or blocking the mold.
Block vibration table vibration box
06. vibration box
Dual-axis synchronous inertia is larger, and the vibration force is stronger, With its own breathing valve,it can evacuate the excessive oil temperature caused by the rotation Professional gear steel integral molding, high strength
QT6-15 automatic concrete block making machine advantages
Simple project sections and block laying buildings
- Gallery
- Data Shete
Concrete block samples for clients to choose (6)
Size: length 400* width 100 *height 200 mm
14 pieces per mold
3360 pieces per hour
26880 pieces per 8 hours
Size: length 500* width 150 *height 200 mm
5 pieces per mould
1200 pieces per hour
9600 pieces per 8 hours
Size: length 400* width 200 *height 200 mm
6 pieces per mould
1440 pieces per hour
11520 pieces per 8 hours
Size: length 225* width 112.5 *height 60 mm
20 pieces per mould
4800 pieces per hour
38400 pieces per 8 hours
Size: length 200* width 100 *height 60 mm
20 pieces per mould
4800 pieces per hour
38400 pieces per 8 hours
Size: length 500* width 150 *height 300 mm
5 pieces per mould
1200 pieces per hour
9600 pieces per 8 hours
QT6-15 Automatic block makig machine test all kinds of concrete block for customers
- What is the most professional description for QT6-15 block machine complete production line
- QT6-15 hydraulic automatic hollow block machine description with nice painting
- Which necessary euqipments are used for QT6-15 fully automatic block making machine ?
- How to operate a fully automatic concrete block making machine correctly ?
How to confirm your final decision on the concrete hollow block style ?
First of all, please tell us which country you are from. Our team will advise customers on the corresponding size and type according to the most used brick types in this market before. Then, customers can ask us to design drawings for them according to their own requirements. Finalize the bricks or blocks that the customer wants to produce。
Realistic scene of Henry block making machine operation
Necessary equipments for QT6-15 Automatic block makig machine complete production line (8)
Cement silo for cement storage and supplying cement to batching plant
Cement storage silo parameters:
Production capacity : 100 tons Tank diameter : 3 meter Vertebral height： 2.5m tank height 8m Landing leg 1.96m( Customized) discharging height 1.96m Clean type YCD-2 Tank thickness Aboved 4mm, middle 5mm, below 6mm Assembly method assembled and detachable
The cement screw machine is for transferring cement to the batching machine
Screw conveyor machine parameters :
Overall size : 8000*219*500mm Weight 250kgs rated power 3 kw Diameter (mm)： 219 mm Wall thickness(mm)： 6mm Handling Capacity (m3/h)： 20m3/h Conveyor way Spiral Connection way Flange
Concrete batching machine is for weighing and batching different size of gravel and stone powder
PLD1200 batching machine data:
Overall size : 7500×2200×2500mm Weight 4500kgs rated power 8.8 kw Total hopper capacity： 1200L Storage hopper capacity： 3*2.5m3 Production capacity: 56m3/h Height of Adding Material： 2.8m Belt speed： 1.25m/s Product name PLD1200 batching plant machine
JS750 concrete mixer is for mix cement, sand, stone dust , gravel, and aggregate together for block materials
JS750 Mixer Parameters data :
Overall size : 3636*2805*2630mm Weight 5500kgs rated power 39 kw Charging volume: 1200L Discharging 750L capacity: 35m3/h mixing motor: 30 KW Lifting motor 7.5KW Water pump power: 1.1KW
The belt conveyor is for conveying mixed material from mixer to a block machine hopper
The belt conveyor parameters :
Weight: 250 kgs Overall size: 8000*700*500mm Motor power ： 2.2 kw Belt type: “V” type complete Conveyor speed: 1.2 m / second Stories double steel material angle iron Assembly method detachable Belt material Rubber belt wire
Cement scale is for scale cement quantity then transfer cement to batching machine
Cement scale parameters:
Volume of weighing hopper : 0.4m3 Batching precision: ±1％ Maxmum scale powder material： 500kgs Graduation value 2kg,5 kg, 10kg number of sensor 4,6,8 sensor type pressure sensor display model digital display, tensile sensor interface model RS232, RS485 Protection level IP67/IP65
The double pallet stacking machine is for palletizing and stacking blocks to be more stories.
Double stacking machine parameters:
Overall size： 2500*1770*2400 mm: Power (KW)： 3KW Speed 0.5M/S Stacker layer 3-4 layers Total weight： 1500KGS stacking method clamp handle stacking accuracy 5mm safety performance anti-pinch, anti-collision Pallet size Adjustment size
3 tones diesel engine forklift for carrying bricks out
3 tons forklift parameters:
Tyre style solid tyre Mast lifting maximum height 3000mm Fast driving speed 18/19km per hour Overall length 2700*1225*2700mm Fork size 1070*122*45mm Applicable industrials logistic transport Engine type wei chai brand Loading capacity 1000-3000 kgs Weight 4300kgs
It can not only produce hollow bricks of different sizes and types by changing the mold but also produce solid bricks, standard bricks, colored pavement bricks, and interlocking blocks.
Ideally, your brick factory needs about 4,000 square meters, including the brick-making machine production area, raw material stacking area, brick curing area, loading and unloading area, and office area. If you need, we can issue you a layout plan.
If your order is only hollow bricks, the general delivery time is 15-20 days. If there are other pavement brick molds, processing wire cutting, carburizing, and heat treatment time will be longer, about 25-30 days. If special voltage is required, the time may be longer.
Some customers are worried that they will not be able to operate the fully automatic mode. In fact, it is also very simple. However, we can also customize it to semi-automatic mode, and control the production process of the brick making machine through mechanical buttons.
JS500 mixer is definitely necessary, raw material conveyor is also necessary, palletizer is necessary, batching machine PLD1200 three warehouses are also necessary, cement silo, loader is not necessary, if you need, our company can also provide you with one-stop
First of all, the pressure of this block machine needs to be large enough. Secondly, the most important thing is the choice of raw materials. You need to put more white cement and very fine stone powder. In this way, the surface of the colored pavement bricks will be very smooth, like ceramic tiles.
