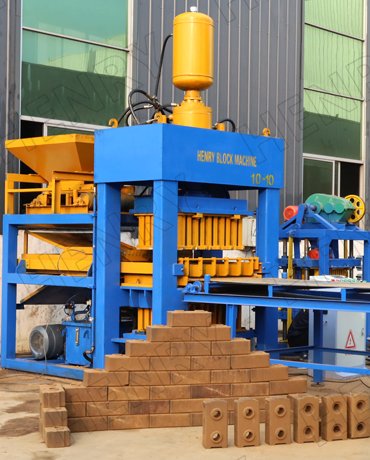

300 tons Super output HR10-10 hydraform block machine
Strong hydraulic pressure and large output are the two core advantages of the HR10-10 hydraform block machine. In order to meet the needs of customers, HENRY engineers increased the hydraulic pressure of HR10-10 hydraform machines to 300 tons (which can be customized). Such strong pressure can press the clay raw materials very tightly, so the hydraform block produced is very strong.
After the pressure of the HR10-10 hydraform machine rises, there are higher requirements for hydraulic cylinders, oil pumps, and hydraulic oil pipes. Therefore, we choose high-speed valves, high-speed hydrostatic cylinders, and hydraulic oil pipes with stronger compression resistance. There is no doubt that the HR10-10 hydraform interlocking block machine has both super pressure and super quality.
Four reasons why HENRY recommended HR10-10 hydraform block machine to you
Since the beginning of this century, with the deepening of the research on hydraform blocks in the construction industry, there have been increasingly high requirements for the types and quality of hydraform blocks, so the HR10-10 hydraform block machine came into being, including HR10-10 hydraform machines of 100 tons, HR10-10 hydraform machine of 300 tons, HR10-10 hydraform interlocking block machine of 500 tons, and so on. Strong pressing force is an important guarantee to ensure the quality of the hydraform block. For details about hydraform machine price list, please send an email to consult us.
Such a huge pressing force is bound to ensure the firmness of the HR10-10 hydraform block machine fuselage frame. Therefore, we have upgraded the steel and key components used in the fuselage frame, which are welded by thickened high-performance steel, and can withstand the hydraulic pressure of 500 tons, ensuring that the HR10-10 hydraform will not be deformed for a long time, which is very strong and durable.
The overall size of HR10-10 is 3,300 * 1,900 * 3,400 mm, the overall weight is 5,600 kg, it is equipped with a total power of 18.5kw, the voltage is 380v/50 hz 3 phase (Adjustable), and the hydraulic pressure is 100 tons-500 tons (customizable). Therefore, this hydraform block machine is very powerful. A strong pressing force can adapt to different clay materials.
Huge output is one of the core advantages of the HR10-10 hydraform block machine. Ten pieces of 230*220*115mm hydraform block can be molded at one time, and nearly 20,000 pieces of hydraform blocks can be produced in eight hours, which is very amazing. In recent years, HR10-10 hydraform machines has been loved by customers all over the world, and an average of 20 HR10-10s are exported to African countries every year. At present, we have a very big discount on the hydraform interlocking block making machine price. Please send us an email to consult us.
Technical Data
- Tab1
- Tab2
| Overall size | 3300*1900*3400mm |
| Power | 18.5KW |
| Shaping Cycle | 10-15s |
| Total weight | 5600kgs |
| Rate voltage | 380v/50 hz 3 phase ( Adjustable) |
| Production capacity | 2400-2600 bricks / per hour |
| Pressure | 100-500 tons ( Adjustable ) |
| Workers | 3-4 workers |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customised |
| Machinery Test Report | Provided |
| Place of Origin | Shandong |
| Video outgoing-inspection | Provided |
| Applicable industries | Building Material Shops, Construction works, Block machine |
| Belt conveyor machine | 8m length |
| Product name | HR10-10 Hydraform block machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump, hydraulic cylinder |
HR10-10 hydraform block machine production output :
What high-quality accessories and advanced production technology are used in HR10-10 hydraform block machine?
01. Hydraform block mould
HR10-10 hydraform block machine can produce hydraform blocks with different sizes by matching different molds, and all kinds of clay bricks can be produced, with multiple functions and convenient mold replacement. The accuracy and durability of the mold are the most important. For this reason, designer HENRY draws the drawings by computer, and then the workshop workers use strong and thickened steel plates for casting and then The HR10-10 hydraform interlocking block machine mold produced in this way is very durable and has a very long service life.

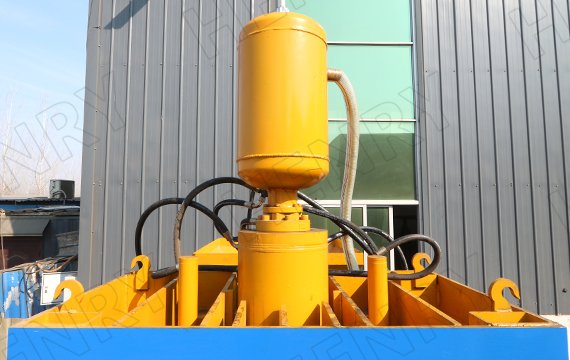

02.Super hydraulic cylinder
HR10-10 hydraform block machine is equipped with a 300 tons super-large oil cylinder, and the cylinder body of the oil cylinder is made of high-standard fine steel, which meets the standard of a hydraulic oil cylinder of a large excavator. HR10-10 hydraform machines is equipped with 300 tons oil cylinder with excellent quality, good sealing, stability, and strong, and the oil flow rate is very stable.
03.PLC controller box
The PLC controller box is the control center of the HR10-10 hydraform machine, which plays an important role in the production of hydraform block, ensuring the accuracy of the production process of the HR10-10 hydraform interlocking block machine. The PLC electric control box can set the production process according to the production demand, and the PLC controller box has automatic mode and manual mode, which is convenient for customers to choose.
04.Airbag clip
The airbag clip is an important part of the HR10-10 hydraform block machine brick discharging system. After hydraform block is demoulded, the Airbag clip can transport hydraform blocks to the brick discharging platform, which is very intelligent and has great significance for simplifying the production process and improving production efficiency. Moreover, the pressure of the Airbag clip equipped with HR10-10 hydraform machines can be adjusted, so it can be applied to hydraform block of different sizes. The Airbag clip equipped with the HR10-10 hydraform machine is of excellent quality, and the production material is natural rubber, which is excellent in quality and not easy to be damaged.
05.Pure copper core motor Electrical Motor
Motor provides power support for each production step of the HR10-10 hydraform block machine, and it is the core accessory of HR10-10 hydraform machines. For this reason, HENRY chose a Siemens imported brand motor with excellent quality, which has high efficiency, reliable quality, low working noise, long service life, low carbon emission, and environmental protection.
06. Solenoid valve
The solenoid valve equipped with HR10-10 hydraform interlocking block machine, together with the hydraulic station and hydraulic oil pipe, forms a powerful hydraulic system to complete the hydraulic action. The solenoid valve equipped with the HR10-10 hydraform block machine has the advantages of rapid response, safety, stability, and strong corrosion resistance.
What are the advantages and characteristics of HR10-10 hydraform block machine?
Construction workers use hydraform blocks produced by HR10-10 hydraform block machine to build hydraform houses
- Gallery
- Data Shete

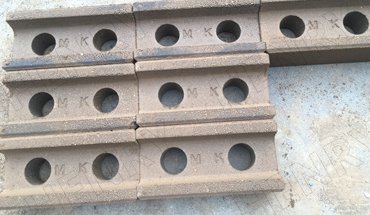

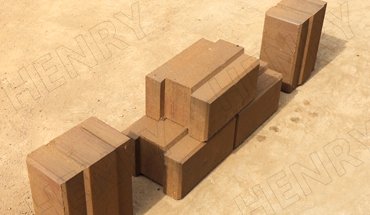

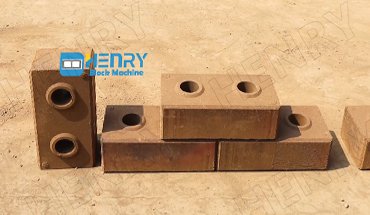

Some hydraform blocks pictures and parameters (5)
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 230*220*115mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
Size: 300*150*100mm
Compressor ratio: 1:1.9
Output:10 bricks at a time/ 19200 bricks per 8 hours
HR10-10 hydraform block machine test all kinds of hydraform blocks for customers
- How to adjust hydraulic oil tank / air compressor using manual for 200 tons hydraform block machine
- 300 Tons super hydraform block machine / interlocking brick machine / hydraform blocks
- How to stack fresh soil interlock brick immediately produced by 200 tons automatic hydraform machines?
- How to avoid deception on choosing a hydraform block machine ? Is there any reminding ?
Why is hydraform blocks produced by HR10-10 hydraform block machine becoming more and more popular?
First of all, the hydraform blocks produced by the HR10-10 hydraform block machine have a low cost. The raw materials for production are mainly clay, and only a small amount of cement can be added. After the production is completed, it only needs natural curing without firing, which greatly reduces the production cost. Secondly, the hydraform block produced by HR10-10 hydraform machines has a unique interlocking design. When building workers use hydraform block to build houses, hydraform blocks can be embedded with each other, which is very firm and easy to construct.
Part of the realistic portrayal of using the Henry hydraform interlocking block machine
Necessary equipments for HR10-10 hydraform block machine (6)
A soil crusher is for crushing large pieces into small pieces
Soil crusher machine parameters:
Overall size 1500×800×1500 mm Max. Feeding size 300×400 mm Power 5.5kw Capacity(t/day) 7-10T Total weight 320KGS
A Conveyor machine is for transferring from the crushing machine to the sieve machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
Soil sieve machine for screening raw soil into powder
Soil sieve machine parameters:
Power 0.75 KW Capacity 7-10T/day Hole diameter Diameter:4mm Total weight 350KGS dimension(mm)(L*W*H) 1500×800×1200mm A Conveyor machine is for transferring from the sieve machine to the mixer machine
Conveyor machine parameters:
Weight 150KGS Size 4500*700*400mm Motor Power 1.5kw Belt type “V” type Speed 1.5 m /second
The soil mixer machine is for mixing soil /clay/earth, and cement to be a good material
Soil mixing machine parameters:
Overall size 2000(L)×2000(W)×1500(H)mm Shaping cycle 2-3 mins Production capacity 24 m³/h Power 15KW Volume 1500L Total weight 1350KGS
The clay brick tester machine is to test earth block strength
Clay brick tester machine parameters :
Dimmersion 400*300*600mm weight 60kgs Max. Power 55 Mpa Test method manual pressing Cost Free
In recent years, the construction industry in Africa, Asia, and other countries has developed rapidly, and the demand for bricks is increasing. At the same time, the international community strongly advocates the use of green building materials, the protection of the natural environment, and the conservation of natural resources. Therefore, engineers of HENRY Company produced and developed the HR10-10 hydraform block machine in response to this phenomenon in the international community.
First of all, the hydraform block produced by HR10-10 hydraform machines uses clay as the main raw material, and does not need to use a lot of natural resources such as cement and sand, which not only saves natural resources, but also reduces production costs, and the clay can be dug on the spot without transportation.
Secondly, the hydraform blocks produced by the HR10-10 hydraform interlocking block machine are very strong after molding with a strong pressing force of 300 tons, and the strength after curing is very high, so there is no problem in building houses, and the houses built with hydraform blocks have very good sound insulation and heat insulation functions.
The answer is no firing.
Hydraform block has a very high density under the strong extrusion force of 300 tons. After scientific maintenance, hydraform blocks will become very strong and have a very high strength, so there is no problem in building a load-bearing wall. Of course, if customers want to enhance the quality of Hydraform blocks, they can also fire it.
The answer is, of course.
HENRY can provide customers with free lettering service, so that every Hydraform block produced by customers using the HR10-10 Hydraform interlocking block machine will have the customer’s logo on it. Because the exhibition area of Hydraform blocks is limited, HENRY suggests that customers add between 2 and 5 letters.
With the development of society and the increase in people’s demand, construction companies and consumers have higher requirements for the strength, bearing capacity, service life and cracking rate of hydraform block. To this end, engineer HENRY designed and developed the super pressing force of 100 tons, 300 tons, and even 500 tons to meet the needs of customers.
In recent years, Tanzania’s construction industry is booming, and infrastructure such as urbanization, roads and ports are expanding. Therefore, Tanzania currently has a great demand for building materials. The Hydraform block has the advantages of low cost, fast production speed and convenient construction, and is loved by Tanzanian builders.
The answer is of course. Our workers will spray the HR10-10 hydraform interlocking block machine with classic blue and yellow by default, which is also the most classic color matching of construction machinery. Of course, if the customer wants to paint his favorite color, HENRY can completely meet the customer’s needs. After placing an order, the customer can note the color to be painted, and it is best to provide a color card, so that our paint spraying workers will paint according to the color card without color difference.
Step one: When preparing raw materials, add about 5% cement, and mix clay, cement, and water with a blender. In the second step, the raw materials are pressed by a pressing force of 300 tons, and the strength can reach 15 mpa. The third step is to scientifically maintain the finished hydraform block, which needs to be sprayed with water for 2-3 times every day. After 10-15 days of maintenance, the Hydraform block can be sold.
The answer is yes. HR10-10 hydraform block machine has a high production speed and a huge output. Ten pieces of hydraform blocks with 230*220*115mm can be molded at a time, and the molding cycle is 10-15s. With such a rapid production speed, it is difficult for workers to keep up with the production speed. Therefore, it is very necessary to use a stacking machine.
