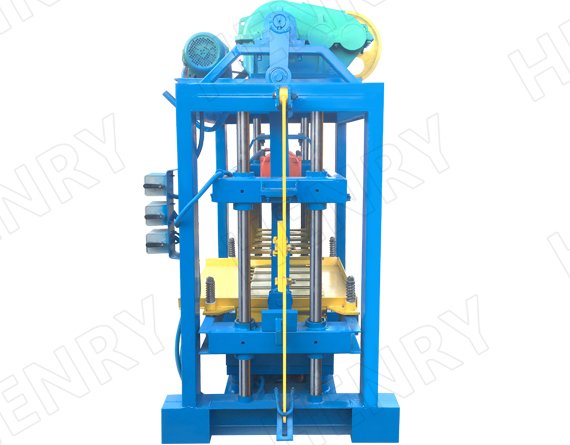

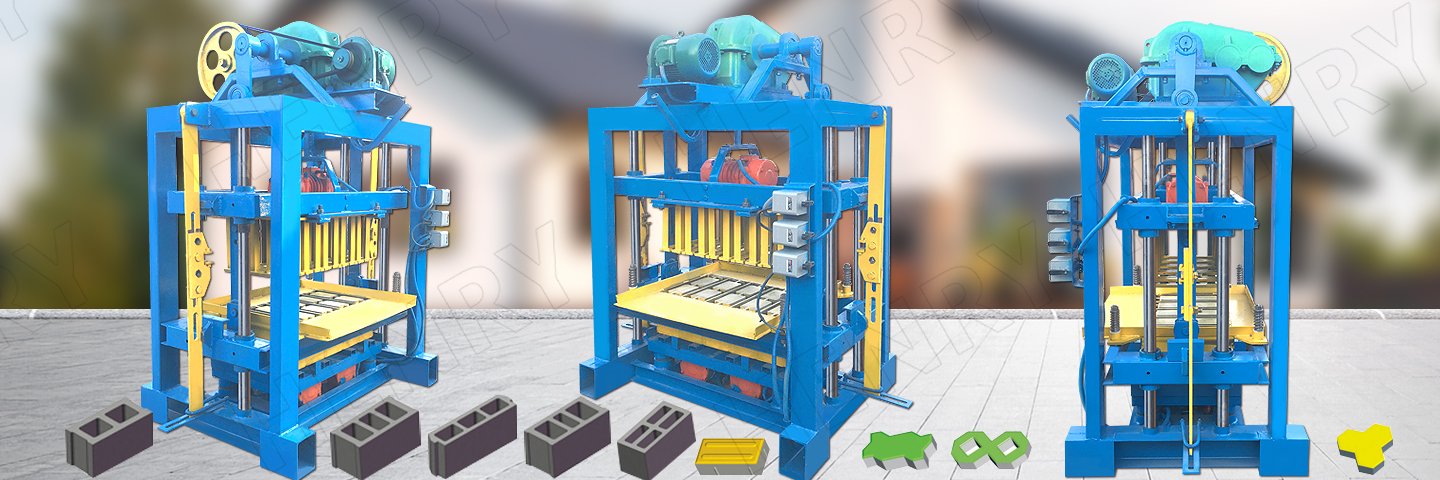

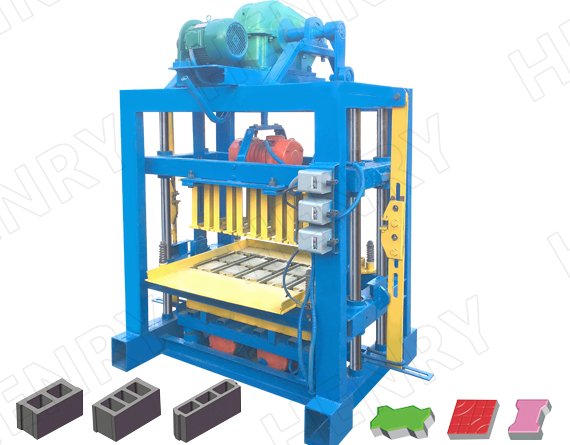

The most popular and best-selling QT4-40 small brick making machines
QT4-40 small brick making machines are semi-automatic brick making machine, which combines workers’ operation with machine production, and are very suitable for small-scale production with strong flexibility and applicability.
QT4-40 brick making equipment is to put the concrete raw materials into the mold by workers’ operation, vibrate the concrete raw materials in the mold by vibrators, vibrate and shape the concrete raw materials in the mold, and then transport the molded concrete hollow bricks to the maintenance area by workers. One worker can complete the whole production process, which is undoubtedly a very good choice for small companies or families to invest in.
Four reasons why HENRY recommended customers to choose QT4-40 small brick making machines
Multifunctionality is a big advantage of QT4-40 brick machines. Customers can produce various sizes and types of concrete hollow bricks, concrete solid bricks, pavement bricks, kerbs, and other brick types by operating the QT4-40 small brick machine, and they only need to match the corresponding molds to meet the different production needs of customers. With thousands of dollars of investment, you can recover your investment within a few months and start making profits.
QT4-40 small brick making machines is composed of fuselage frame, brick mold, motor, vibrator, control switch, reducer and other components. The whole fuselage frame is welded by thickened Q345 manganese steel, which is very strong and firm. The motor, vibrator, and other accessories of QT4-40 brick making equipment are all famous domestic brands, with high quality and long service life.
The body size of QT4-40 brick machines is 1600*1100*2100mm, the overall weight is 1600kgs, the total power is 8.8kw, and the voltage is 380v/220v (which can be customized). Sufficient power and vibration force ensure that the concrete bricks produced by the QT4-40 small brick machine are stronger, and the molding effect is better.
QT4-40 small scale brick making machine can use cement, sand, lime, fly ash, etc. as raw materials, and the output is considerable. Four hollow concrete bricks of 400*200*200mm can be formed at a time, and 850*550*20mm pallets are required. The production cycle is 40s, and the daily output can reach 3000-6000 hollow concrete bricks.
Technical Data
- Tab1
Specification Parameter
| Overall Size | 1600(L)×1100(W)×2100(H)mm |
| Shaping Cycle | 40 seconds |
| Pallet Size | 850x550x20mm (fiber pallet) |
| Speed | 2800 r.pm |
| Upper Vibrator | 2.2KW |
| Nether Vibrator | 4.4kw |
| Electricity | 380V/220V (adjustable) |
| Total Weight | 1600 KGS |
| Capacity | 3000-6000pcs/8hr |
| Workers | 1-2 workers |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
QT4-40 small brick making machines production capacity:
What advanced technologies and accessories are used to produce QT4-40 brick machines minecraft?
01.block making machines vibrator
QT4-40 block making machines in the process of producing concrete hollow bricks. The vibrator vibrates the concrete raw material in the mold with high frequency, so that the concrete raw material in the mold is molded, and the vibration force directly affects the molding quality of the concrete hollow brick. The QT4-40 manual brick making machine is equipped with three vibrators, and sufficient vibration force can fully meet the production needs.

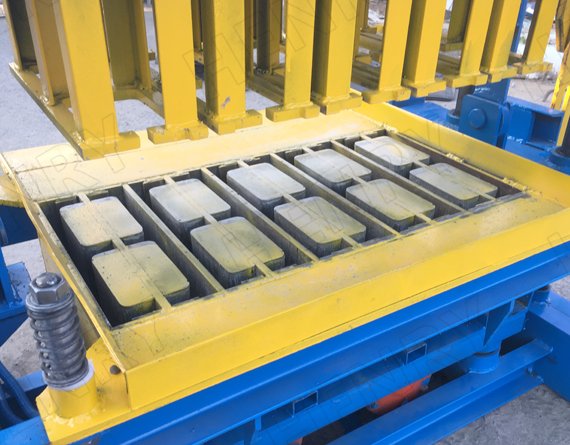

02.Hollow block mold
Mould is an important accessory for the QT4-40 small cement brick making machine to produce concrete hollow bricks. It must be used for a long time, so the high quality of the QT4-40 small brick making machines mould must be guaranteed. For this reason, Engineer HENRY chose the thickened manganese steel plate, and through wire cutting technology, carbon dioxide shielded welding, heat treatment, polishing, and rust prevention, etc., the mold of QT4-40 brick making equipment can not be deformed and rusted, and the quality is very high.
03.Reverse switch
In the process of producing concrete hollow bricks, the reverse switch can control the motor and vibrator of QT4-40 brick making equipment, which plays an important role in filling concrete raw materials and forming concrete bricks, making the production process smoother and safer, and improving the production efficiency of QT4-40 brick machines. HENRY chose the imported brand “Delixi”, which has excellent quality and strong durability.
04.Rich processing experience and advanced technology
HENRY company has more than 20 years of production and processing experience, and accumulated a lot of production experience and patented technology in the process of manufacturing QT4-40 small brick machine. At present, HENRY has many complete production lines and more than 40 patented technologies. At the same time, we are still actively communicating and cooperating with domestic well-known lontto block machine, actively learning foreign advanced technology, constantly meeting customers’ needs, and constantly innovating.

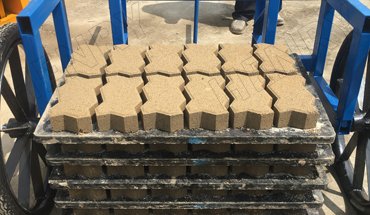

05.Small brick making machines fiber pallet
QT4-40 small brick making machines. In the process of producing concrete hollow brick, fiber pallet plays the role of bearing concrete raw materials, supporting bricks and fixing concrete hollow brick, and plays an important role in the aspects of distribution, concrete hollow brick forming and concrete hollow brick transportation. QT4-40 brick making equipment for sale is equipped with a fiber pallet with a size of 850*550*20mm. Its high strength and corrosion resistance can ensure long service life and no deformation.
06.JQ350 Concrete Mixer
QT4-40 block making machines need a lot of concrete raw materials in the process of producing concrete hollow bricks. JQ350 mixer can mix cement, sand, fly ash, etc., and it can mix the concrete raw materials evenly in 2-3 minutes, which provides a steady stream of raw materials for QT4-40 small brick making machines to produce concrete hollow bricks, which is very fast and convenient.
What are the main advantages of the QT4-40 small brick making machines
Workers build a house with Concrete hollow blocks at the construction site
- Real pictures from the scene
Some concrete blocks pictures and parameters (6)
Size:400×200×200mm
4 pieces per mould
360 pieces per hour
2880 pieces per 8 hours
Size:400×150×200mm
5 pieces per mould
450 pieces per hour
3600 pieces per 8 hours
Size:400×100×200mm
7 pieces per mould
630 pieces per hour
5040 pieces per 8 hours
Size:200×163×60mm
8 pieces per mould
720 pieces per hour
5760 pieces per 8 hours
Size:200×100×60mm
14 pieces per mould
1260 pieces per hour
10080 pieces per 8 hours
Size:225×112.5×60mm
12 pieces per mould
1080 pieces per hour
8640 pieces per 8 hours
What after-sales service will HENRY provide when customers buy QT4-40 small brick making machines?
Perfect after-sales service can make customers have no worries at all. First of all, the QT4-40 small brick making machines we sell has a one-year quality guarantee. If there is any non-human damage within one year, we can provide free replacement service. After the customer receives QT4-40 brick making equipment, we have perfect after-sales service, such as providing an operation manual, online video teaching, 24-hour online video guidance of the after-sales team, and so on.

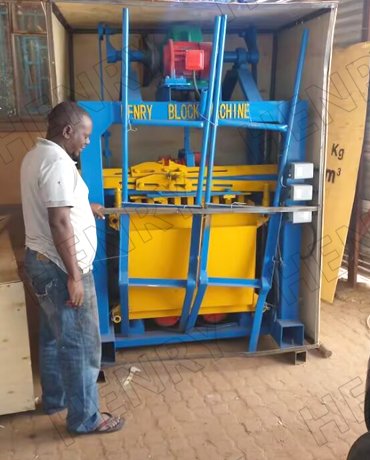

About the operation of QT4-40 small brick making machines and the pictures of customers receiving goods
QT4-40 small brick making machines What other supporting equipment is needed for a complete production line (4)
Overall Size 1600(L)×1100(W)×2100(H)mm Shaping Cycle 40 seconds Pallet Size 850x550x20mm (fiber pallet) Speed 2800 r.pm Upper Vibrator 2.2KW Nether Vibrator 4.4kw Electricity 380V/220V (adjustable) Total Weight 1600 KGS Capacity 3000-6000pcs/8hr
Mixing Motor Power 5.5kw Production Capacity 16m³/h Feed Capacity 350L Efficiency ≥15m³/h Rotating Speed Of Stirring Blade 35r/min Maximum Particle Size Of Bone Particles 8mm/6mm Reducer Model 315
Raw Material fiber and flax Bending Strength more than 60N/mmˆ2 Flexural Modulus more than 4.5*10ˆ3Mpa Impact Strength more than 60KJ/mˆ2 Temperrater tolerance 80-100℃ Thickness 15-50 mm At customer’s request Width/Length At customer’s request
Size 2400*1000*1300mm Power 2.2KW Voltage 12V*4pcs Working hours 10 hours Operation Electro hydraulic Advantage Strong climbing ability
The answer is no. Cement is an important raw material for QT4-40 small brick making machines to produce concrete hollow blocks, accounting for about 10% of the total raw materials, which is of great significance for the forming and strengthening of concrete hollow bricks. However, in QT4-40 brick making equipment, the more cement is not the better.
First of all, too much cement will affect the formation of concrete hollow blocks, and the hydration reaction will accelerate, which will lead to the volume shrinkage of concrete hollow blocks, produce cracks, and reduce the strength and impermeability of concrete hollow blocks. Secondly, the price of cement is high, and using too much cement will increase the production cost of concrete hollow blocks, which will lead to a decrease in profits.
Therefore, in the process of using QT4-40 brick machines to produce concrete hollow blocks, we must strictly follow the scientific and reasonable raw material ratio in order to produce good-quality concrete hollow blocks.
The answer is no. Customers buy a QT4-40 small scale brick making machine, and can produce various types of concrete blocks by replacing the block mold, including 8-inch concrete blocks, 6-inch concrete blocks, 4-inch concrete blocks, standard blocks, kerbs, pavement blocks, etc. Customers need to select several popular block molds according to local market demand.
Customers can also produce a variety of block types by sharing molds. As the name implies, two block types share a set of molds, which can reduce the cost of customer procurement.
We can calculate the number of fiber pallets according to the production speed of the QT4-40 block making machines. The molding cycle of the QT4-40 manual brick making machine is about 40 seconds. According to working 8 hours a day, the QT4-40 small brick making machines need to use 600-700 fiber pallets a day.
The strength of concrete blocks produced by QT4-40 small brick making machines is measured by MPa, and the compressive strength of concrete blocks is a key factor to measure the quality, which directly determines the applicability and service life of concrete blocks.
When building walls of houses and yards, the strength of common concrete blocks is 35 MPa, while when building load-bearing walls and foundations, concrete blocks with higher strength are needed, and the strength needs to exceed 35 MPa.
