HENRY Company Top Edition M7M1 Clay Brick Making Machine For Sale

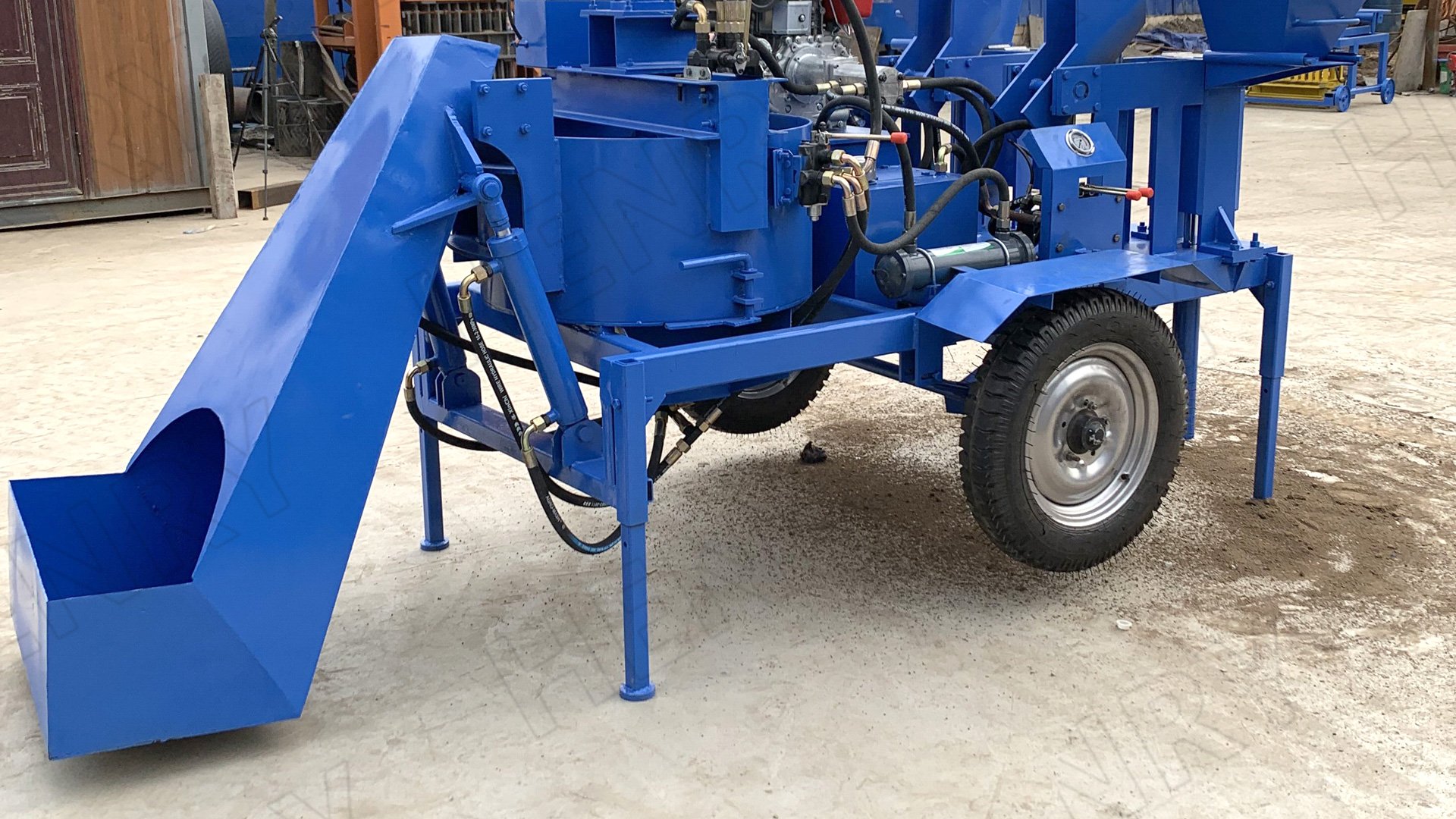

1.This M7M1 clay brick making machine for sale is a newly-developed clay brick making machine , which is the most edition version of Hydraform interlocking block machine, which is inclusive of soil clay mud mixer, material lifting hopper and earth block press , and its functions are HENRY complete.
2. This M7M1 clay brick making machine for sale is powered by a 8 HP diesel engine, and is designed with two wheels at the same time. This design enables this machine to move to any place suitable for producing your interlocking clay bricks, and completely gets rid of the restrictions of other machines that are difficult to move and power and wires.
3.M7M1 clay brick making machine for sale has a size of 2600*1400*1600mm and a weight of 1300kgs. The diesel engine can provide 8HP diesel power and 20Tons hydraulic pressure, which ensures that two clay bricks can be molded with high quality in 15-20s.
4.M7M1 clay brick making machine for sale comes with a lifting hopper and a JQ200 mixer with a 1 meter diameter. The lifting hopper provides power through an oil cylinder to lift clay raw materials into the JQ200 mixer for mixing. JQ200 mixer has a diameter of 1000mm and can mix 350kg clay mixture in two minutes.after, offload all of the soil clay mixture form the exit of the mixing machine into a tank then feed the mixed material into clay brick making machine hopper.
5. This M7M1 clay brick making machine for sale is designed with double head press, and two workers can operate the operating rods at both sides at the same time to complete the steps of feeding, compressing and demoulding of the clay brick / soil brick / interlocking brick, so as to realize the production of clay bricks.
Why is the diesel engine the biggest advantages of diesel-powered M7M1 clay brick making machine for sale?
M7M1 clay brick making machine for sale adopts the second generation air-cooled diesel engine from Changzhou, China, Changchai brand diesel engine is the number 1 in CHINA , which has excellent quality and can adapt to harsh environments such as high altitude, high temperature and cold. Diesel is a very common fuel in most countries, which is convenient to buy and stable in price.
What is the function of the newly developed lifting hopper of HENRY Company?
The lifting hopper is an auxiliary feeding system device developed by HENRY’s engineering technical team. It solves the difficulty for workers to put raw clay materials into the M7M1 clay brick-making machine for sale mixer JQ200. Workers only need to put clay raw materials into the hopper, and the hydraulic cylinder provides power, so they can automatically transport clay materials to JQ200 mixer instead of manpower.
What convenience can M7M1 clay brick making machine for sale tire design bring?
M7M1 clay brick making machine for sale is designed with two tires. The tires have very strong wear resistance and grip, and the production site can be easily changed. You can choose to produce clay bricks in places with sufficient raw materials or on the construction site, which is very adaptable and flexible.
What are the quality guarantees of the clay brick making machine produced by HENRY Company?
HENRY company has 20 years of experience in producing clay brick making machines, and can independently develop, produce and sell professional clay soil earth mud interlocking brick making machines. HENRY have 43 international patents, which are exported to more than 120 countries around the world. HENRY Company insists on quality first and service first, and looks forward to cooperating with you in the future sooner.
M7M1 clay brick making machine for sale is the most complete and flexible clay brick making machine.
Clay-making machines for sale in different variety , they are hydraulic clay brick making machine, vibration clay brick making machine and manual clay brick making machines and so on. We also have other types of M7M1 clay-making machines for sale, M7M1 clay-making machines for sale with soil mixer only, M7M1 clay-making machines for sale without mixer machine, M7M1 clay-making machines for sale with single press. M7M1 clay-making machines with electrical motor versions, and clay brick-making machines with other operation modes for you to choose from.
M7M1 clay brick making machine for sale technical parameters and capacity
- Technology datas
- M7M1 clay brick making machine for sale Theoretical Production Capacity
| Overall size | 2600*1400*1600mm |
| Power of host machine | 8HP |
| Weight of host machine | 1.3T |
| Hydraulic pressure | 20T |
| Shaping method | Hydraulic press |
| Models of mixer | JQ200 |
| Power supply | Diesel engine 186F |
| Forming period | 15-20S |
| Workers | 2-3 workers |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
Get More Operation Videos
How to quickly master and operate this M7M1 clay brick making machine for sale?
1. Turn on the M7M1 clay-making machines by one button electric start to make the clay brick making machine run normally.
2. Put the raw materials screened by the sieve into the hopper in front of the machine. The hopper is lifted by the hydraulic cylinder, and the raw materials will be transported to the mixer for mixing cement five percentage , soil 60% and 30% sandy clay and 5 % water.
3. The mixing machine blender only needs to be stirred for 1-2 minutes. Open the valves on both sides of the blender and put the stirred raw materials in the bucket which are lifted up to be the clay brick making machine material hopper
4.Workers put the raw materials in barrels into the distribution hoppers on both sides of the machine. Workers fill the raw materials and spreading the mold by dragging the hopper.
5. Workers control the operating handles on both sides of the machine to control the hydraulic cylinder to rise up to compress for making your clay locking bricks.
6. After the clay brick is pushed out from the block molds box, workers need to take it out by hand.
No matter which country, the labor cost is getting higher and higher. In order to help our customers reduce labor to the greatest extent and save workers’ physical strength, we designed and developed this clay brick making machine with a hopper. The machine can load materials mechanically and directly pour the sieved soil into the mixer for mixing, which indirectly improves the speed of producing clay bricks.
The M7M1 clay brick-making machine for sale is designed with two tires. The tires have very strong wear resistance and grip, and the production site can be easily changed. You can choose to produce clay bricks in places with sufficient raw materials or on the construction site, which is very adaptable and flexible.
Before leaving the factory, Henry will fill the diesel engine oil for the user for free. After receiving the M7M1 clay brick -making machine, the user should always pay attention to the oil dipstick scale to ensure that the oil level scale is within the normal value range of the oil. Generally, 6 liters of oil are required. The oil should be replaced every six months. After receiving the M7M1 clay brick -making machine, the user needs to go to the market to buy 70 kg of No. 64 hydraulic oil and add it to the hydraulic oil tank. The frequency of replacing the hydraulic oil is determined according to the oil use environment and the cleanliness of the hydraulic oil. Generally, it is replaced once a year.
