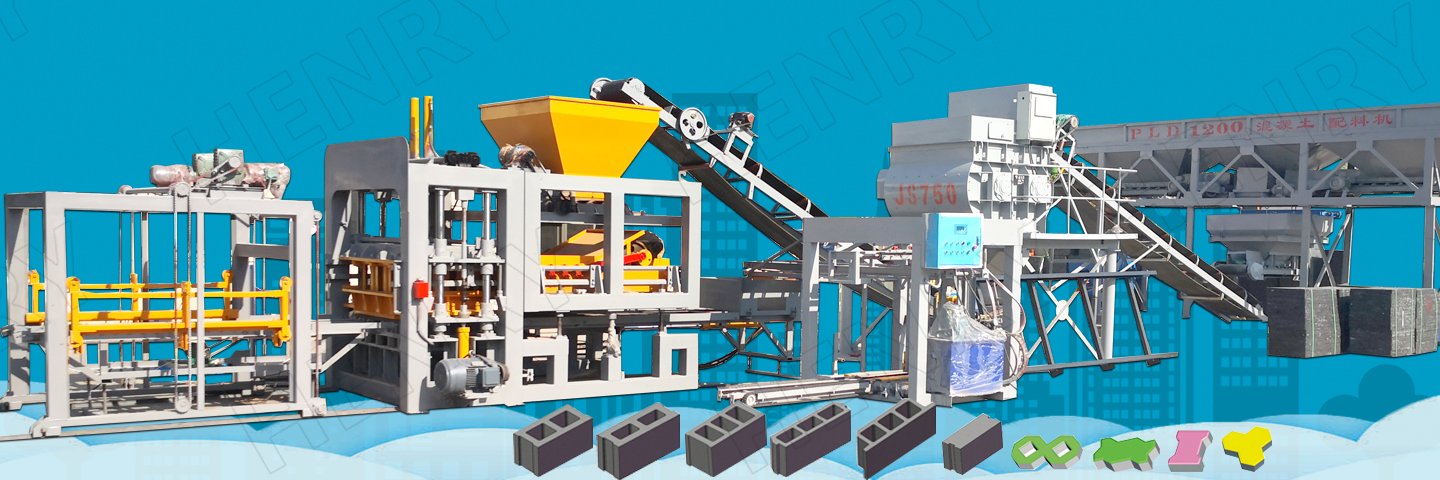

Super large production QT10-15 automatic block making machine production line
Strong vibration force, high output, and high degree of automation are the three core advantages of the QT10-15 automatic block making machine. It can achieve a low-frequency feeding and high-frequency vibration working mode, meeting the precise vibration requirements of different types and sizes of concrete blocks, and realizing a standardized and scientific production mode.
The QT10-15 concrete block machine is equipped with a total motor power of 47.7kW, a vibration force of 80-100 kN, and uses highly sensitive Omron sensors, ensuring precise operation and producing highly uniform concrete blocks.
QT10-15 hydraulic automatic block making machine production line
The QT10-15 automatic block making machine has a powerful motor and vibration, which mixes industrial waste such as fly ash and carbon slag with cement and water in a certain proportion as raw materials for producing concrete blocks. This not only saves production costs but also realizes resource recycling, making it green, environmentally friendly, and turning waste into treasure. It is of great significance for improving the profits of brick factories.

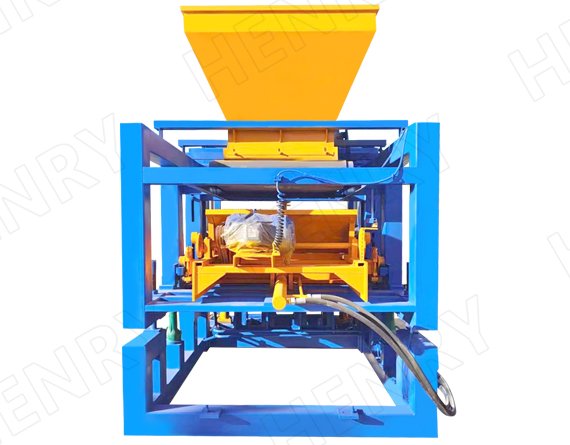

The QT10-15 automatic block making machine measures 5300*1850*2700mm and weighs 5500 kg. For such a large size, HENRY selected the highest standard steel to ensure that the frame of the QT10-15 manual block making machine will not deform during long-term production of concrete blocks. High quality is HENRY’s most important guarantee to its customers.
The QT10-15 automatic block making machine boasts a 47.7kW motor and 80-100kN vibration force, producing exceptionally strong, high-quality, and high-strength concrete bricks that are highly competitive in the local market. Furthermore, the QT10-15 hollow block making machine is equipped with two fiber tray sizes: 1100*870mm and 1100*900mm. It can form 10 400*200*200mm hollow concrete blocks at a time, with a production cycle of 12-20 seconds. Therefore, calculations show that the QT10-15 automatic block making machine can produce 24,000 high-quality 8-inch hollow concrete blocks in 8 hours of operation. Such a massive output is truly astonishing.
The QT10-15 automatic concrete block making machine can not only produce 8-inch hollow concrete blocks (400*200*200mm), but also produce 6-inch and 4-inch hollow concrete blocks, colored paving blocks, curb stones, and other types of concrete blocks by changing the mold.
Technical Data
- Tab1
- Tab2
| Overall Size | 5300×1850×2700mm |
| Power | 47.7kw |
| Weight | 5500kgs |
| Pallet Size | 1100*870mm，1100*900mm |
| Vibration force | 80-100 kn |
| Power Voltage | 415V/380V/220V AC |
| Forming Period | 12-20S |
| Mixer model | JS750 |
| Worker | 4-5 Worker |
| Block mould | One set for free |
| Belt conveyor machine | 8 m length |
| Color | Customizable |
| Machinery Test Report | Provided |
| Raw material | Fly Ash Cement Sand Concrete |
| Place of Origin | Shandong |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | QT10-15 automatic block making machine |
| Warranty of core components | 1 year |
| Applicable industries | Building Material Shops, Construction works |
QT10-15 automatic block making machine production capacity:
The advantages of QT10-15 automatic block making machine production line
01.High-quality electrical components

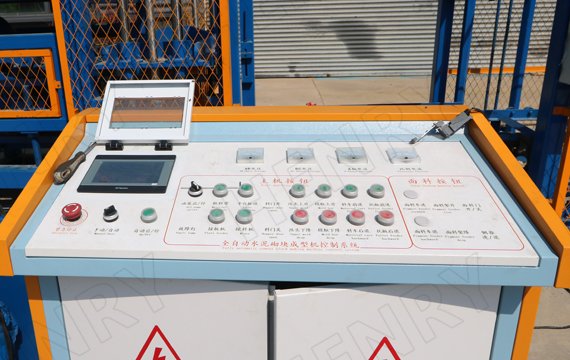

The QT10-15 automatic paver block making machine is equipped with a PLC control box that uses Schneider Electric electronic components, ensuring long service life, stable voltage, and smooth and precise operation. The PLC control box features a Siemens high-definition display screen with sensitive touch control and supports multiple languages, including English, French, and Spanish. The PLC control box is considered the operating brain of the QT10-15 concrete block making machine price list.
02.Hollow block mould

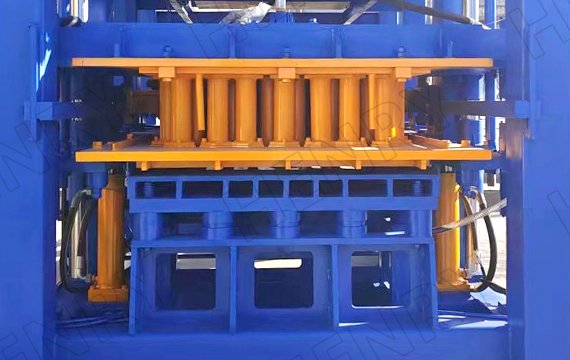

The molds equipped with the QT10-15 semi automatic block making machine are made using wire cutting technology, resulting in extremely high precision. The mold cores are heat-treated, making them highly wear-resistant and capable of being used more than 2 million times, ensuring a very long service life. Moreover, the molds for hollow bricks can be made with different wall thicknesses, with an error as small as 0.05mm, ensuring precise dimensions and easy demolding.
03.Automatic block making machine body frame steel material
The quality of steel has a significant impact on the service life of the QT10-15 automatic block making machine. To ensure that the main structure of the QT10-15 fully automatic block making machine price does not deform during long-term production, HENRY selects national standard 345# steel plate, which has the characteristics of high strength, good toughness, wear resistance, and corrosion resistance. At the same time, advanced welding technology is used, making the main body firm, durable, and very strong.
04.Vibration motor with Siemens / Shanbo brand
The QT10-15 fully automatic block making machine uses high-quality vibration motors from Siemens/Sanbo, which have the advantages of strong power, reliable quality, and a wide vibration frequency range, from a few hertz to several hundred hertz. It can meet the production needs of different types of concrete bricks, and has stable output and low noise.
05.High-quality hydraulic Tube
In the hydraulic system of the QT10-15 automatic block making machine, hydraulic oil pipes connect hydraulic cylinders, solenoid valves, and hydraulic power units. The hydraulic action of QT10-15 fully automatic block making machine price is controlled by the flow and pressure of the hydraulic oil. Therefore, hydraulic oil pipes play an important role in the entire hydraulic system. HENRY selects high-quality hydraulic oil pipes that are resistant to high temperature and high pressure, have flange interfaces, good sealing performance, and are leak-proof.
06.HENRY's professional after-sales team
Professional after-sales service is crucial for customers. After receiving the QT10-15 automatic block making machine, customers inevitably encounter problems during installation and debugging. To address this, HENRY has assembled an after-sales service team of several engineers to answer any questions customers may have about the QT10-15 automatic solid block making machine, ensuring satisfaction for every user who purchases it.
What are the main advantages of QT10-15 automatic block making machine?

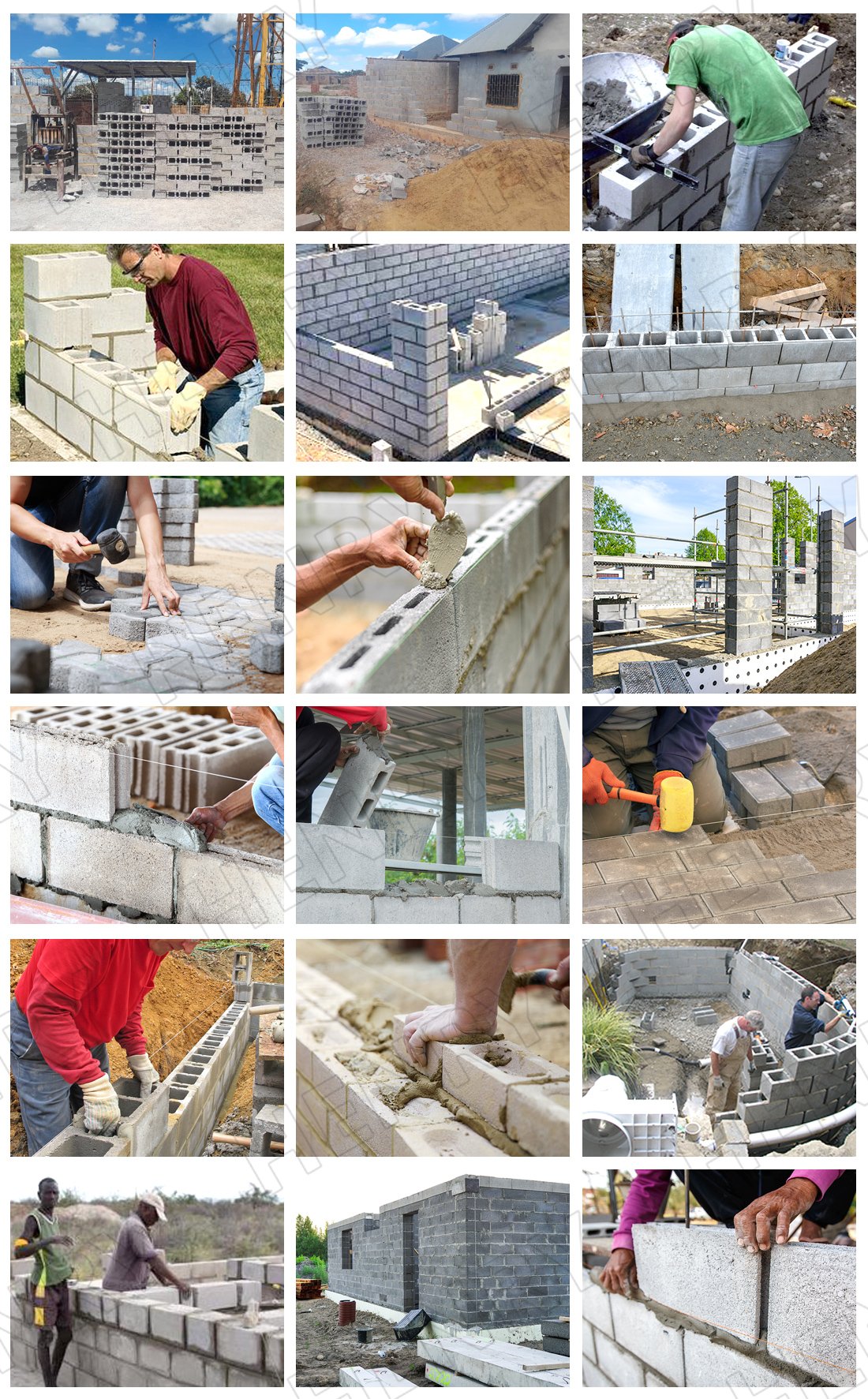

The real project sections and block laying buildings
- Gallery
- Data Shete
Cement brick samples for clients to choose (6)
Size: length 400* width 200 *height 200 mm
10 pieces per mold
3000 pieces per hour
24000 pieces per 8 hours
Size: length 400* width 100 *height 200 mm
18 pieces per mold
5400 pieces per hour
43200 pieces per 8 hours
Size: length 500* width 150 *height 200 mm
12 pieces per mould
3600 pieces per hour
28800 pieces per 8 hours

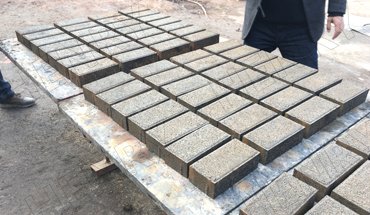

Size: length 225* width 112.5 *height 60 mm
27 pieces per mould
8100 pieces per hour
64800 pieces per 8 hours
Size: length 200* width 100 *height 60 mm
27 pieces per mold
8100 pieces per hour
64800 pieces per 8 hours
Size: length 200* width 163 *height 60 mm
18 pieces per mould
5400 pieces per hour
43200 pieces per 8 hours
QT10-15 automatic block making machine test all kinds of fly ash concrete block for customers
- QT10-15 automatic ice block making machine with steel mesh to increase strength

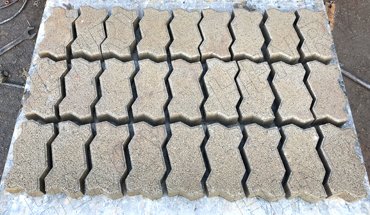

- QTH10-15 automatic block making machine makes zigzag paving bricks/ pavers for Kenya
- QT10-15 concrete block machine test hollow blocks equipped with pallet feeder
- QT10-15 automatic concrete block making machine real test cement Kenya hollow standard block
Can customers visit the HENRY factory before purchasing an automatic block making machine?

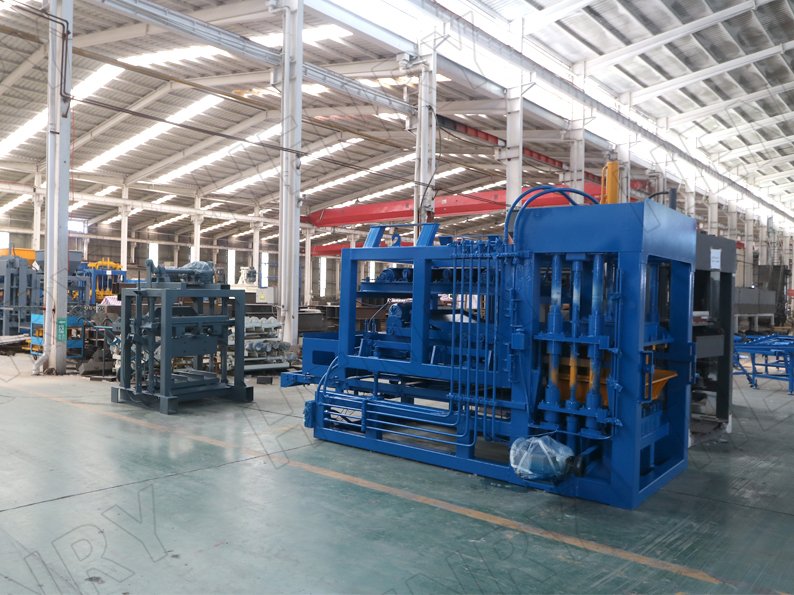

The answer is, of course, yes. HENRY warmly welcomes every customer to visit our factory in Linyi, China, to see firsthand the QT10-15 automatic block making machine production workshop, raw material processing workshop, painting and installation workshop, and more. We believe that seeing is believing, and customer satisfaction is our service principle.

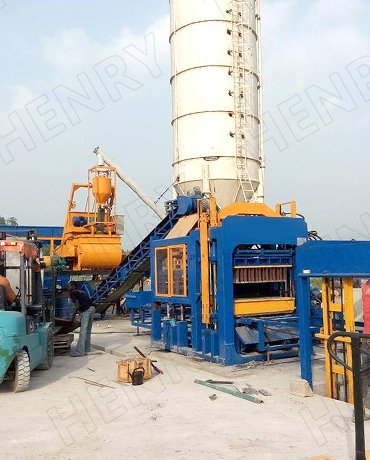

Part of the realistic portrayal of using the Henry automatic block making machine
Necessary equipments for QT10-15 automatic block making machine complete production line (8)
Cement silo for cement storage and supplying cement to batching plant
Cement storage silo parameters:
Production capacity : 100 tons Tank diameter : 3 meter Vertebral height： 2.5m tank height 8m Landing leg 1.96m( Customized) discharging height 1.96m Clean type YCD-2 Tank thickness Aboved 4mm, middle 5mm, below 6mm Assembly method assembled and detachable
The cement screw machine is for transferring cement to the batching machine
Screw conveyor machine parameters :
Overall size : 8000*219*500mm Weight 250kgs rated power 3 kw Diameter (mm)： 219 mm Wall thickness(mm)： 6mm Handling Capacity (m3/h)： 20m3/h Conveyor way Spiral Connection way Flange
Concrete batching machine is for weighing and batching different size of gravel and stone powder
PLD1200 batching machine data:
Overall size : 7500×2200×2500mm Weight 4500kgs rated power 8.8 kw Total hopper capacity： 1200L Storage hopper capacity： 3*2.5m3 Production capacity: 56m3/h Height of Adding Material： 2.8m Belt speed： 1.25m/s Product name PLD1200 batching plant machine
JS750 concrete mixer is for mix cement, sand, stone dust , gravel, and aggregate together for block materials
JS750 Mixer Parameters data :
Overall size : 3636*2805*2630mm Weight 5500kgs rated power 39 kw Charging volume: 1200L Discharging 750L capacity: 35m3/h mixing motor: 30 KW Lifting motor 7.5KW Water pump power: 1.1KW
The belt conveyor is for conveying mixed material from mixer to a block machine hopper
The belt conveyor parameters :
Weight: 250 kgs Overall size: 8000*700*500mm Motor power ： 2.2 kw Belt type: “V” type complete Conveyor speed: 1.2 m / second Stories double steel material angle iron Assembly method detachable Belt material Rubber belt wire
Cement scale is for scale cement quantity then transfer cement to batching machine
Cement scale parameters:
Volume of weighing hopper : 0.4m3 Batching precision: ±1％ Maxmum scale powder material： 500kgs Graduation value 2kg,5 kg, 10kg number of sensor 4,6,8 sensor type pressure sensor display model digital display, tensile sensor interface model RS232, RS485 Protection level IP67/IP65
The double pallet stacking machine is for palletizing and stacking blocks to be more stories.
Double stacking machine parameters:
Overall size： 2500*1770*2400 mm: Power (KW)： 3KW Speed 0.5M/S Stacker layer 3-4 layers Total weight： 1500KGS stacking method clamp handle stacking accuracy 5mm safety performance anti-pinch, anti-collision Pallet size Adjustment size
3 tones diesel engine forklift for carrying bricks out
3 tons forklift parameters:
Tyre style solid tyre Mast lifting maximum height 3000mm Fast driving speed 18/19km per hour Overall length 2700*1225*2700mm Fork size 1070*122*45mm Applicable industrials logistic transport Engine type wei chai brand Loading capacity 1000-3000 kgs Weight 4300kgs
The answer is no. In the process of producing concrete blocks using the QT10-15 automatic block making machine, cement is a very important raw material, accounting for approximately 10% of the total concrete raw materials. As a binder, cement can mix sand, aggregates, fly ash, water, etc., to form high-strength concrete raw materials used in the QT10-15 hollow block making machine for producing concrete blocks.
However, adding too much cement is not good. First, too much cement leads to a violent hydration reaction, generating more heat and making the concrete blocks produced by the QT10-15 automatic concrete block making machine prone to cracking. Second, cement is relatively expensive, and using a large amount of cement will undoubtedly increase costs. Therefore, in the production of concrete blocks by the QT10-15 automatic paver block making machine, adding cement in a scientifically and rationally proportioned manner is the correct approach.
HENRY’s concrete block machine can produce bricks of various sizes by changing the molds, which can significantly save customers’ procurement costs and achieve multi-purpose functionality. A single QT10-15 automatic block making machine can produce hollow bricks, solid bricks, perforated bricks, colored paving bricks, and more. Mold changing is also very simple; we provide very detailed mold changing instructions and online videos, explaining in detail how to change molds and adjust the machine height to accommodate concrete bricks of different thicknesses.
The quality of the machines purchased and the security of payments are the two most important concerns for all customers in international trade. The solution is simple: find a reliable manufacturer. Therefore, HENRY welcomes customers to visit our factory in China, communicate face-to-face, and gain a detailed understanding of every production process of the QT10-15 automatic block making machine. Every step of our process complies with ISO9001 quality management certification and CE certification. HENRY has been manufacturing and selling automatic concrete block making machine for over twenty years, exporting to more than 100 countries worldwide. Therefore, please feel confident in choosing us.
During the production of concrete bricks using the QT10-15 automatic paver block making machine, one worker is required to prepare the concrete raw materials, including feeding, mixing, and controlling the conveyor belt. Another worker needs to monitor the main unit and PLC control box to prevent emergencies. Finally, another worker is needed to operate a forklift to move and stack the concrete bricks.
First, customers need to visit their local building materials market to learn about the best-selling concrete brick sizes. For example, in Malawi, the most popular size is an 8-inch hollow concrete brick measuring 400*200*200mm. Second, ensure there is a local power supply. Then, customers choose an automatic block making machine based on their production volume. Our sales team will actively communicate with customers to help them select the most suitable hollow block making machine.
After the customer places an order, we will arrange production, package, and ship the finished product, and provide installation and operation manuals, online videos, and concrete raw material proportions. Finally, after receiving the automatic concrete block making machine, customers should install it according to the instructions. We can also send engineers to the customer’s factory for installation and on-site training, but this will incur a fee. Once installed, customers can use the automatic paver block making machine to produce concrete bricks.
The QT10-15 automatic block making machine production line includes 100 tons capacity cement silo for cement storage, PLD1200 concrete batching machine, JS750 concrete mixer, Belt conveyor machine (8 meters long), Double pallet stacking machine, 3 tones forklift
The answer is definitely no. For all brick-making equipment, HENRY recommends using industrial three-phase electricity because it offers sufficient power, a stable supply, and high transmission efficiency. Single-phase electricity is mainly used in residential applications and has a lower power output. Some small manual block-making machines, such as the QMR2-45 concrete block machine, can also use single-phase electricity, but the molding effect is still not as good as with three-phase electricity.
The answer is yes. There is a knob on the proportional valve of the hydraulic station of the QT10-15 automatic block making machine, allowing customers to make minor pressure adjustments. Generally, the pressure of the QT10-15 concrete block machine is set by HENRY engineers before leaving the factory. Unless the customer has specific requirements, it is best to avoid adjusting the pressure yourself.
