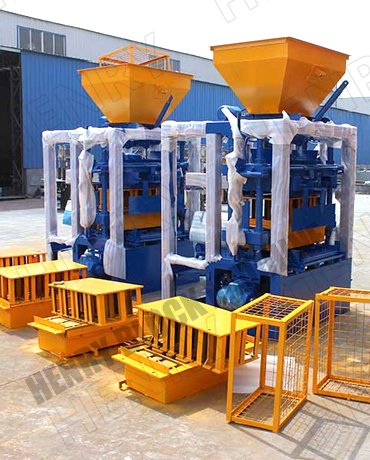

The QT4-24 semi automatic block making machine offers the best value for money.
Affordable price, multifunctionality, and ease of operation are the three core advantages of the QT4-24 semi automatic block making machine. Compared to models like the QT4-20 concrete block machine and QT4-25 block making machine price, the QT4-24 concrete block making machine price is significantly cheaper, offering exceptional value for money, which has attracted a large number of buyers. Secondly, the QT4-24 hollow block making machine uses a PLC control box, making operation simple and convenient. The production program is pre-set at the factory, requiring only simple training for production workers. For customers seeking a brick making machine that balances quality, functionality, and price, the QT4-24 semi automatic block making machine is undoubtedly the best choice.
The advantages and selling points of QT4-24 semi automatic block making machine
The QT4-24 semi automatic block making machine can be used to produce various types of concrete blocks. Its production mode combines manual operation with semi-automatic mechanical operation, offering high flexibility and making it suitable for small to medium-scale production. The QT4-24 semi automatic block machine production line requires only two workers during the concrete block production process, reducing labor costs. For family investment or the initial stages of starting a small brick factory, the QT4-24 semi automatic block making machine is an excellent choice.

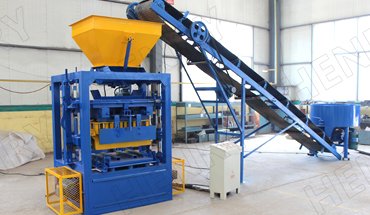

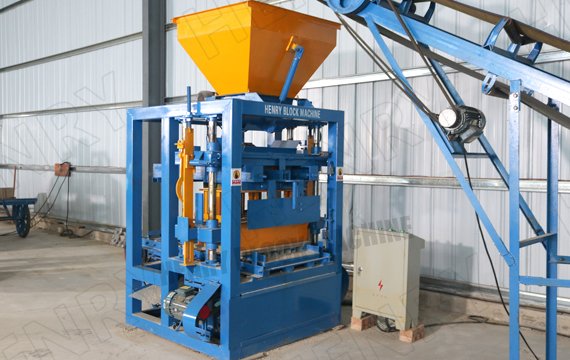

The QT4-24 semi automatic block making machine consists of a frame, motor, vibration system, mold, PLC control box, and hopper.The QT4-24 semi automatic hollow block machine frame is welded from high-quality steel, ensuring high strength and stability. The mold, using wire cutting technology, is a key component for forming hollow concrete blocks. The PLC control box controls the vibration system, using high-frequency vibration to shape the concrete raw material into form within the mold.
The QT4-24 semi automatic block making machine has dimensions of 1850*1880*2240mm and a total weight of 1600kg. Its motor power is 13.45 kW, and its vibration force is 40kN. In the production of hollow concrete blocks, the QT4-24 semi automatic block machine requires an 850*550*25mm fiber pallet and a JQ350 mixer.

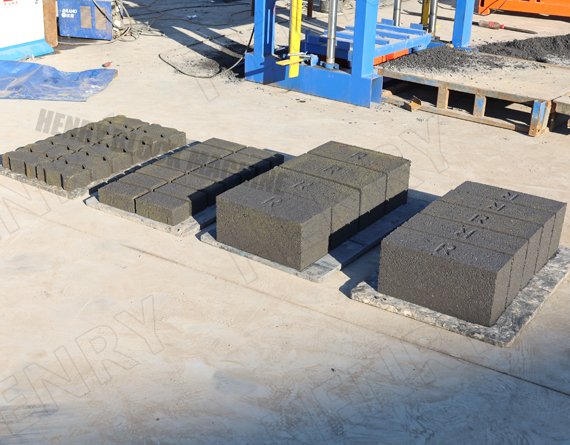

The QT4-24 semi automatic concrete block making machine has a production cycle of 24-30 seconds and can form four 400*200*200mm hollow concrete blocks at a time. Calculations show that the QT4-24 semi automatic paver block machine can produce 4800 pieces of 400*200*200mm hollow concrete blocks in 8 hours of operation.
Technical Data
- Tab1
Specification Parameter
| Machine Overall Size | 1850*1800*2240mm |
| Power | 13.45KW |
| Pallet size | 850*550*25(mm) |
| Production Capacity | 4800-9600 Pieces/8 Hours |
| Weight | 1600KG |
| Cycle Time | 24-30 seconds |
| Vibration force | 40KN |
| Worker | 2-3 Worker |
| Block mould | One set for free |
| Belt conveyor machine | 6 m length |
| Color | Customizable |
| Machinery Test Report | Provided |
| Raw material | Fly Ash Cement Sand Concrete |
| Place of Origin | Shandong |
| Condition | New |
| After-sales Service Provided | Engineers available to service |
| Product name | QT4-24 semi automatic block making machine |
| Warranty of core components | 1 year |
| Applicable industries | Building Material Shops, Construction works |

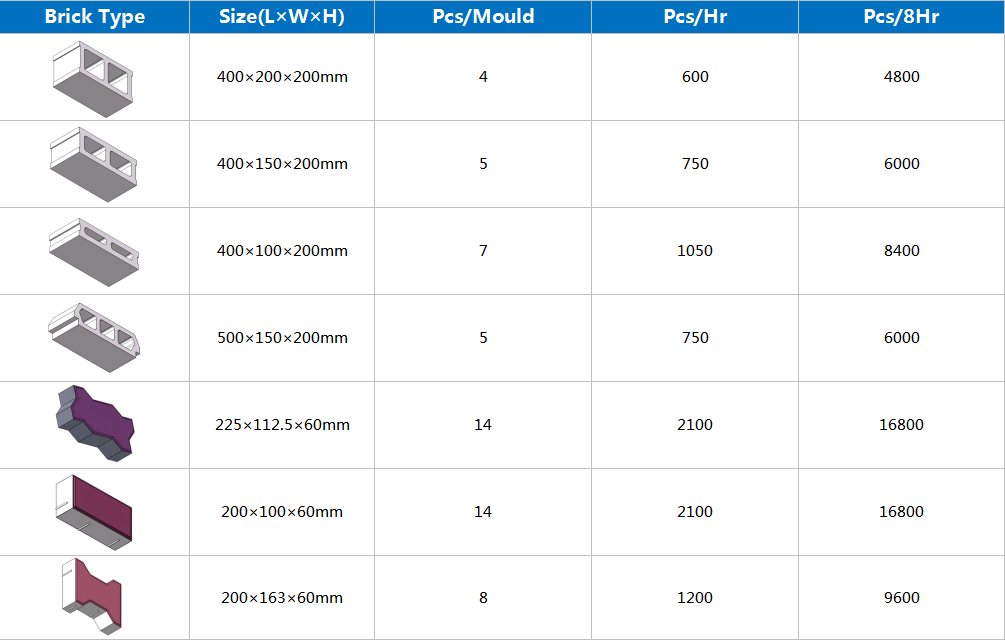

QT4-24 semi automatic block making machine production capacity:

Why does Henry recommend QT4-24 semi automatic block making machine?

01.High-quality steel plate material
The entire frame of the QT4-24 semi automatic block making machine is welded from national standard 345# steel plates, capable of withstanding 40kN of vibration force and ensuring no deformation during long-term use. The steel plates used in the QT4-24 semi automatic concrete block machine must be wear-resistant and corrosion-resistant because they need to be in constant contact with concrete raw materials, which include water, cement, and sand. Ordinary steel will inevitably rust after prolonged contact with concrete raw materials. Therefore, the QT4-24 semi automatic block making machine uses thickened national standard 345# steel plates, which are high in strength, toughness, wear resistance, and corrosion resistance.
02.Hollow block mould
The mold determines the shape and size of the concrete blocks produced by the QT4-24 semi automatic block making machine, so the strength and precision of the mold are very important. Therefore, the mold of the QT4-24 concrete block machine adopts computer drawing and wire cutting processing technology, which has high precision and an error of less than 0.05mm. Moreover, the mold is heat-treated, which makes it very strong and can be used more than 2 million times.


03.PLC electronic control system
Workers can control the production actions of the QT4-24 semi automatic block making machine by operating the PLC control box, including mold closing, mold lifting, and vibration. It is safe, efficient, and easy to operate. For customer convenience, the PLC control box can be set to multiple languages, including English, French, and Spanish. The PLC control box equipped with the QT4-24 hollow block making machine has a long warranty period and uses Schneider Electric circuit breakers, ensuring safety and stability.
04.Semi automatic block making machine vibrator
In the process of producing concrete bricks, the QT4-24 semi automatic block making machine involves workers filling the mold with concrete raw materials. At this point, a vibrator’s high-frequency vibration is used to shape the concrete within the mold. This step is the core production process of the QT4-24 hollow block making machine. HENRY chose the “Liyuan” brand vibrator, which is highly practical, from a mature industry, and excels in both stability and service life.

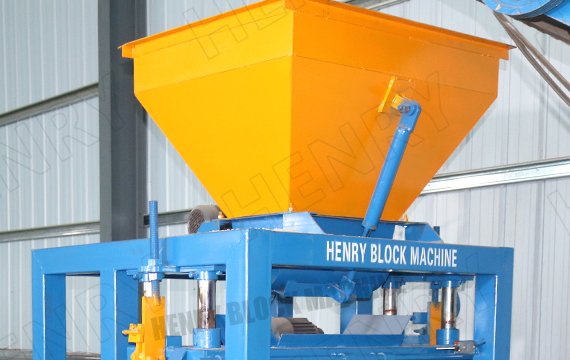

05.Concrete raw material storage hopper
The hopper stores the concrete raw materials mixed by the JQ350 mixer, playing a crucial role in ensuring the continuous and stable production of concrete blocks by the QT4-24 semi automatic block making machine. The discharge port at the bottom of the hopper allows the concrete raw materials to be fed into the mold box of the QT4-24 semi automatic block machine. Since the hopper of the QT4-24 semi automatic paver block machine needs to be in constant contact with the concrete raw materials, wear resistance and corrosion resistance are essential. Therefore, we selected Q235 carbon steel and applied anti-rust paint.

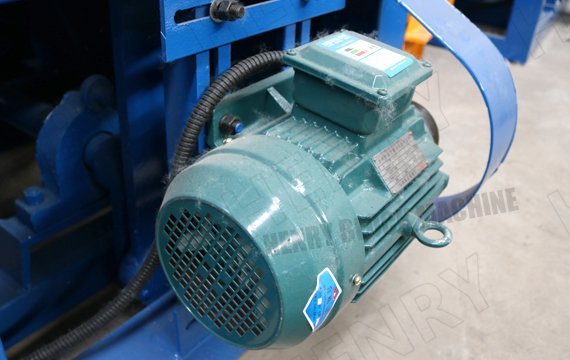

06. Vibration motor
The vibratory motor is the power source and key component of the QT4-24 semi automatic block making machine. HENRY chose the “SHANBO” high-quality vibratory motor, which guarantees quality, has a thick casing, can easily cope with dusty working environments, has high vibration efficiency, strong overload resistance, good energy-saving effect, and a vibration frequency that can reach several hundred hertz. It is fully compatible with the QT4-24 concrete block machine and can meet the needs of the QT4-24 hollow block making machine to produce concrete bricks of various types and sizes.

Advantages and selling points of the QT4-24 semi automatic block making machine









Workers build a house with Concrete hollow blocks at the construction site
- Real pictures from the scene

Some concrete blocks pictures and parameters (6)

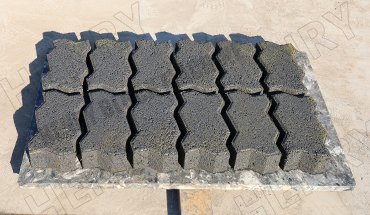

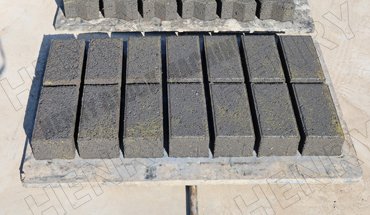

QT4-24 semi automatic block making machine can produce different block types
- How a QT4-24 semi automatic block making machine is equipped with automatically block stacking machine ?
- Why block makers change to semi automatic block making machine / color paving brick?
- Number 728th rectangle semi automatic block making machine produces fly ash/ stone dust block for Congo buyer
- Congo buyer QT4-24 semi automatic block making machine test 5 inch hollow blocks solid quality
How customers can choose the right molds and brick shapes for the QT4-24 semi automatic block making machine
First, customers need to understand which brick types are best-selling in their area, or whether they already have confirmed customer orders. Customers can also determine the brick type for the QT4-24 semi automatic block making machine based on their target market—whether it’s for concrete bricks used in building houses and residences, or kerbstones and paving stones for city parks and squares. If customers are unsure, they can tell our sales team where they are from; our team has over twenty years of experience and will provide suggestions based on the best-selling brick types in their local area.

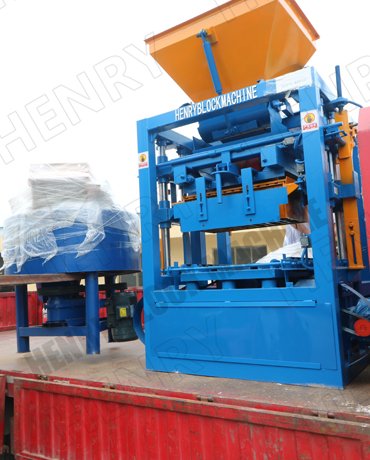

Images showing inventory, packaging, and shipping of the QT4-24 semi automatic hollow block machine
QT4-24 semi automatic block making machine What other supporting equipment is needed for a complete production line (5)
First, HENRY engineers will create drawings for the QT4-24 semi automatic block making machine and molds ordered by the customer, including overall machine processing drawings, electrical wiring diagrams, and mold dimension drawings. Next comes material preparation and welding. Workshop workers use a laser cutter to cut the steel plates according to the production drawings for the QT4-24 concrete block machine, and then senior welders perform the welding. Key components, such as the molds, require quenching and heat treatment. The surface of the QT4-24 hollow block making machine is sandblasted and coated with anti-rust primer. Then, workers install the electrical system, including the vibratory motor, vibrator, and PLC control box. Finally, HENRY engineers will conduct on-site testing of the QT4-24 semi automatic block machine. Once the testing is passed, the production process of the QT4-24 semi automatic hollow block machine is complete.
Currently, there is a significant housing demand in Kenya, Africa. One of the Kenyan government’s four major development agendas is the planned construction of 500,000 new homes, creating a huge market that will inevitably require a large quantity of concrete blocks. Simultaneously, major Kenyan cities like Nairobi and Mombasa are experiencing rapid population growth, with an annual growth rate exceeding 4%, resulting in a large influx of new residents urgently needing housing. Furthermore, the Kenyan government is continuously increasing investment in public projects such as schools, parks, and hospitals, which require substantial amounts of colored paving bricks and curb stones. Since the Kenyan government prohibits the production of red bricks, the market potential for concrete bricks and colored paving bricks produced by the QT4-24 semi automatic block making machine is enormous.

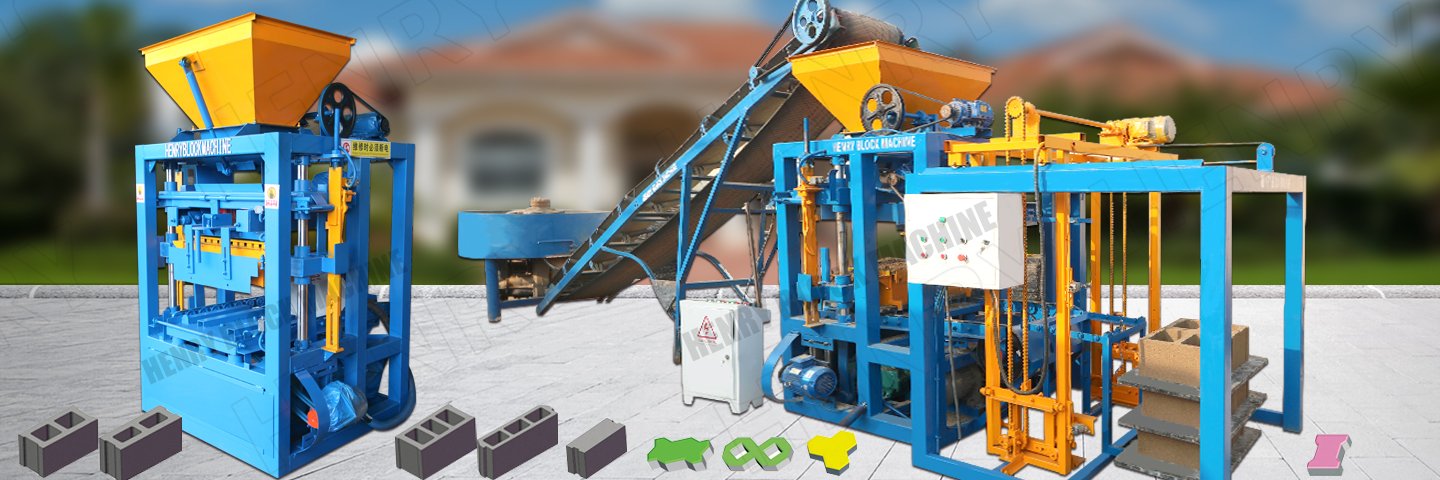

The QT4-24 semi automatic block making machine purchased by the customer also needs to be paired with some supporting equipment to form a complete production line. The entire production line includes the QT4-24 semi automatic hollow block machine, JQ350 concrete mixer, fiber pallet, belt conveyor, and electric forklift. This completes the construction of a concrete block production line, which can improve production efficiency, improve product quality, and reduce labor costs.
The raw materials used in the QT4-24 semi automatic block making machine to produce concrete blocks include cement, aggregates, sand, fly ash, and water. First, cement: many African countries have local cement plants, such as Bamburi in Kenya and Twiga in Tanzania. Generally speaking, obtaining cement in African countries is quite simple. Second, aggregates: for most countries, sand and small gravel are readily available and inexpensive, especially in African countries like South Africa and Nigeria, which have steel mills that produce large amounts of fly ash and slag, which can replace cement. Furthermore, East African countries like Ethiopia and Kenya have volcanic ash resources, which can also be used to produce concrete blocks, reducing production costs.
The concrete blocks produced by the QT4-24 semi automatic block machine gain strength through a hydration reaction. First, you can lightly cover them with plastic sheeting to reduce moisture evaporation, or move the concrete blocks to a shady place and water them 2-3 times a day. If the local climate is dry, you can increase the watering frequency accordingly. The ideal curing temperature for concrete blocks produced by the QT4-24 semi automatic concrete block making machine is 15-25℃, and the surface of the concrete blocks should be kept moist.
To meet local market demands, customers typically choose several popular block types, including hollow concrete blocks and paving bricks. HENRY provides a free mold set. However, if customers require multiple mold sets, it will inevitably increase costs. Therefore, to help customers reduce upfront procurement costs, we can combine two different brick sizes into one mold, essentially using a shared mold. This allows the QT4-24 semi automatic block making machine to produce two block types at once. However, the downside is that the quantity of each type of brick will be reduced.
The development of semi automatic block making machine has evolved from manual production to fully automated production. Initially, concrete block production relied entirely on manual labor, with concrete placed into homemade wooden molds and manually compacted. This method was inefficient, resulting in poor-quality blocks. In the 20th century, the widespread adoption of electricity and internal combustion engines ushered in a period of mechanized production, significantly increasing efficiency and achieving higher standards of concrete block quality. In modern times, with the development of electronic information technology, the application of PLC control boxes, digital settings, and self-diagnostic systems has led to automated production in hollow block making machine. Looking ahead, the rise and application of AI technology and personalized customization are undoubtedly the future trends for semi automatic block machine.
Concrete blocks are inherently a very durable building material. Factors affecting their lifespan include, firstly, the quality of the concrete raw materials. Using high-quality cement, employing a scientifically proportioned concrete mix, ensuring sufficient vibration, and implementing proper post-construction curing all influence the lifespan of concrete blocks. Secondly, the environmental conditions and construction quality significantly impact their lifespan. Coastal areas, regions with large temperature differences, and harsh climates will experience a reduced lifespan for concrete blocks. Strict construction standards and regular maintenance can extend the lifespan of concrete blocks.
