HR2-25 Clay Brick Making Machine Price is a fully automatic clay brick machine independently developed and designed by HENRY
1.HR2-25 Clay Brick Making Machine Price was improved and upgraded by HENRY engineer according to the hot-selling HR2-25 earth brick machine. HR2-25 Clay Brick Making Machine Price is an efficient and fully automatic clay brick production equipment, which greatly improves the production efficiency of clay brick.
2.HR2-25 Clay Brick Making Machine Price has newly added Electric Cabinet, Solenoid Valve and other electronic components. The process of producing clay blocks includes the steps of filling the mold with raw materials, closing the upper and lower molds, hydroforming, and separating the clay blocks from the mold. These steps can be completed automatically, reducing manual operation and improving the efficiency and safety of clay block production.
3. HR2-25 Clay Brick Making Machine Price adopts PLC electric cabinet control system to realize the automatic production of clay blocks. HR2-25 Clay Brick Making Machine Price has optimized functional design, which reduces the consumption of power, diesel and other energy sources. Automation also standardizes the production of clay blocks, ensuring consistent quality and reaching high standards.
4. The size of HR2-25 Clay Brick Making Machine Price is 1200*1000*1600mm, and the weight of the machine is 700kgs. The diesel engine can provide 10HP power, and the diesel engine can also be replaced by an electric version according to the customer’s needs. The hydraulic pressure of HR2-25 clay brick making machine price can reach 10tons, which makes the produced clay blocks reach high standards and prolongs the service life of clay blocks.

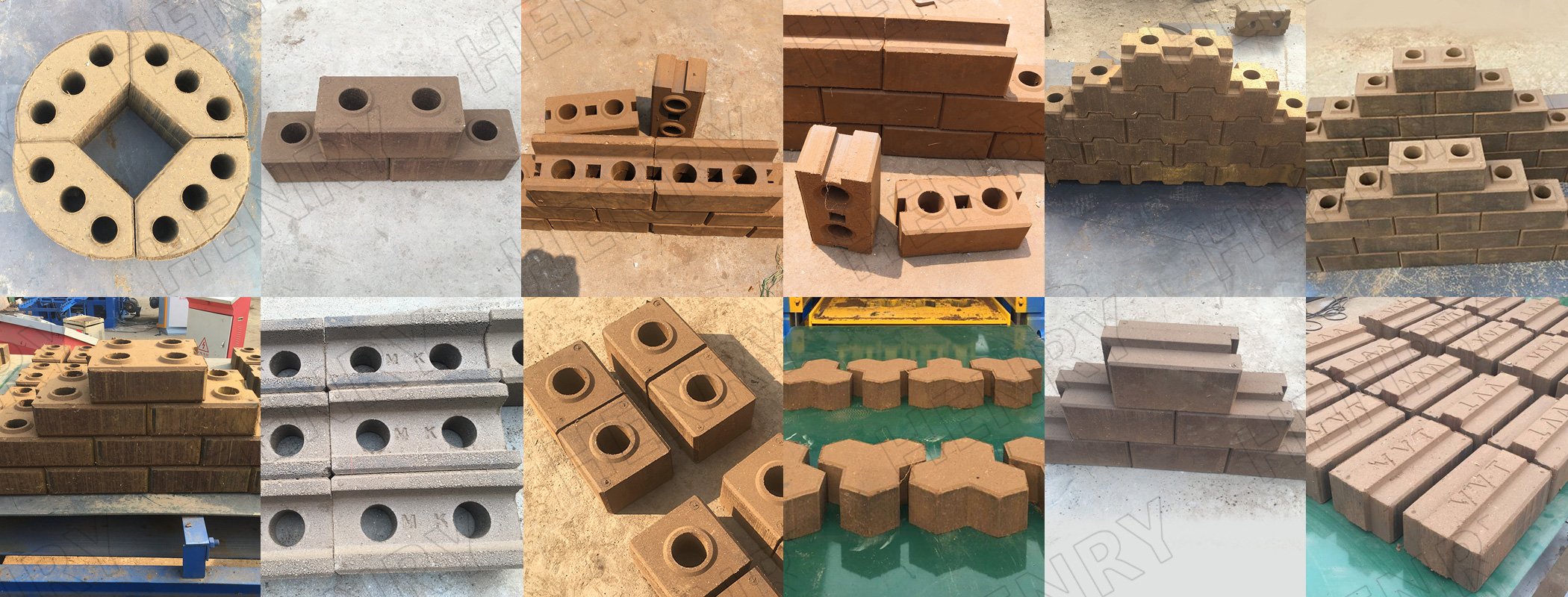

5. HR2-25 Clay Brick Making Machine Price has realized automatic production, and the production efficiency of clay blocks has been greatly improved. Every 20s, two hydraform bricks of 230*220*115mm can be produced, and the daily output can reach more than 3,000. You can also change molds to produce double-hole bricks, U-shaped bricks, CLC bricks and so on, which can easily meet different market demands.

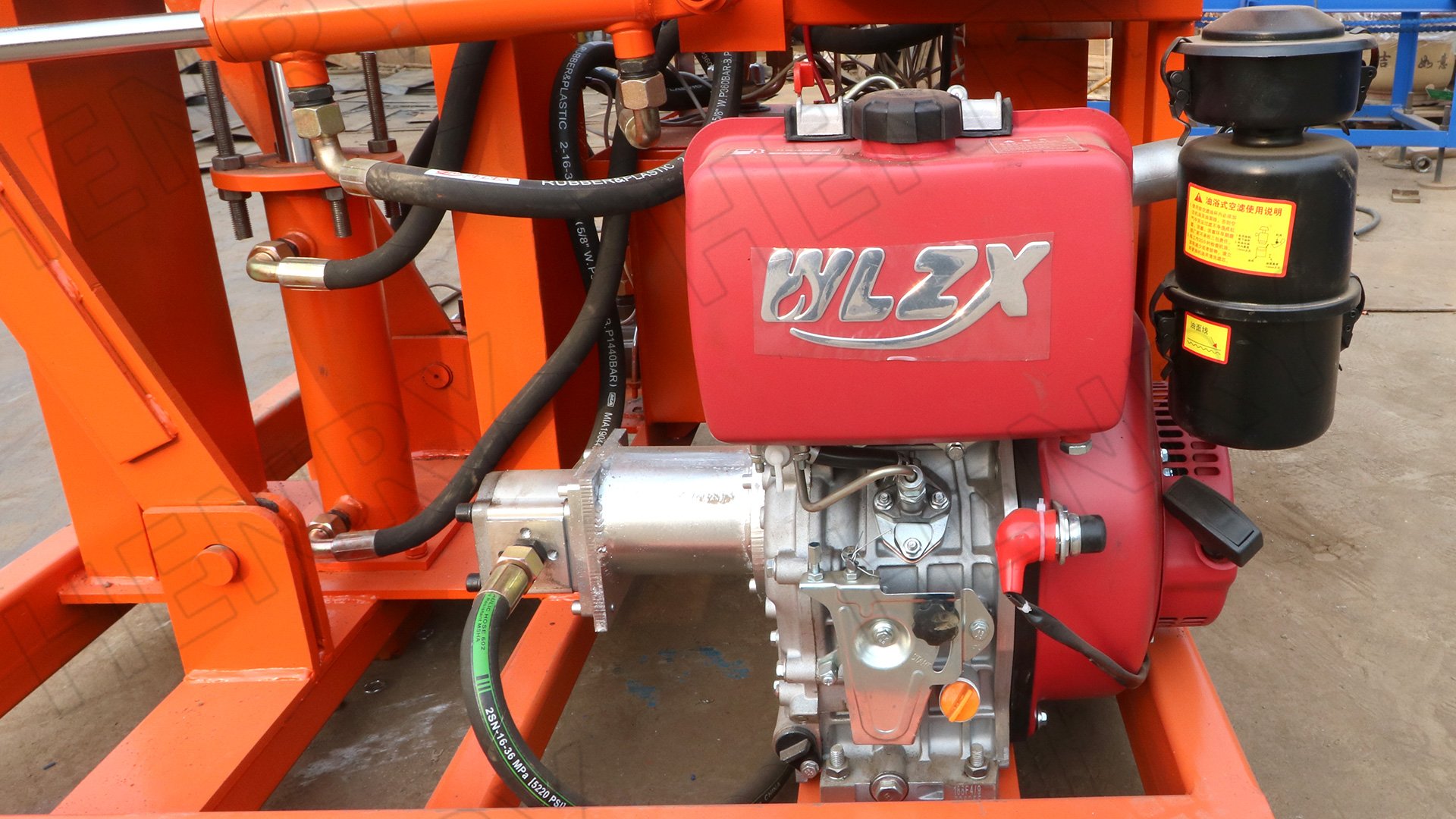

What are the advantages of HR2-25 Clay Brick Making Machine Price in choosing diesel engine as power source?
The diesel engine has strong power and stable output, which is very suitable for efficient automatic production of HR2-25 Clay Brick Making Machine Price. The diesel engine solves the dilemma that clay blocks cannot be produced in areas with no electricity and unstable electricity. Diesel energy is very easy to buy, and the price is cheap. HR2-25 Clay Brick Making Machine Price needs 8L diesel every day, and the production cost is low.
Why should HR2-25 clay brick making machine price be equipped with Electric Cabinet?
Electric Cabinet is the core component of HR2-25 Clay Brick Making Machine Price to realize the production automation. Workers set up the automation program of electric cabinet, and control HR2-25 Clay Brick Making Machine Price to realize the steps of filling raw materials, hydroforming, demoulding and so on through Solenoid Valve, electronic sensors and other electronic components. Precise automatic production improves production efficiency.
Why is it necessary to equip HR2-25 clay brick making machine price with water cooling system?
Long-term automatic continuous production of HR2-25 Clay Brick Making Machine Price will make the hydraulic oil temperature too high, which will further affect the stability of the hydraulic system of HR2-25 Clay Brick Making Machine Price. This requires a water cooling system to cool the hydraulic oil. The water cooling system has two holes, one for cold water and the other for water discharge. Only one water pipe is needed to easily realize the operation of the water cooling system.

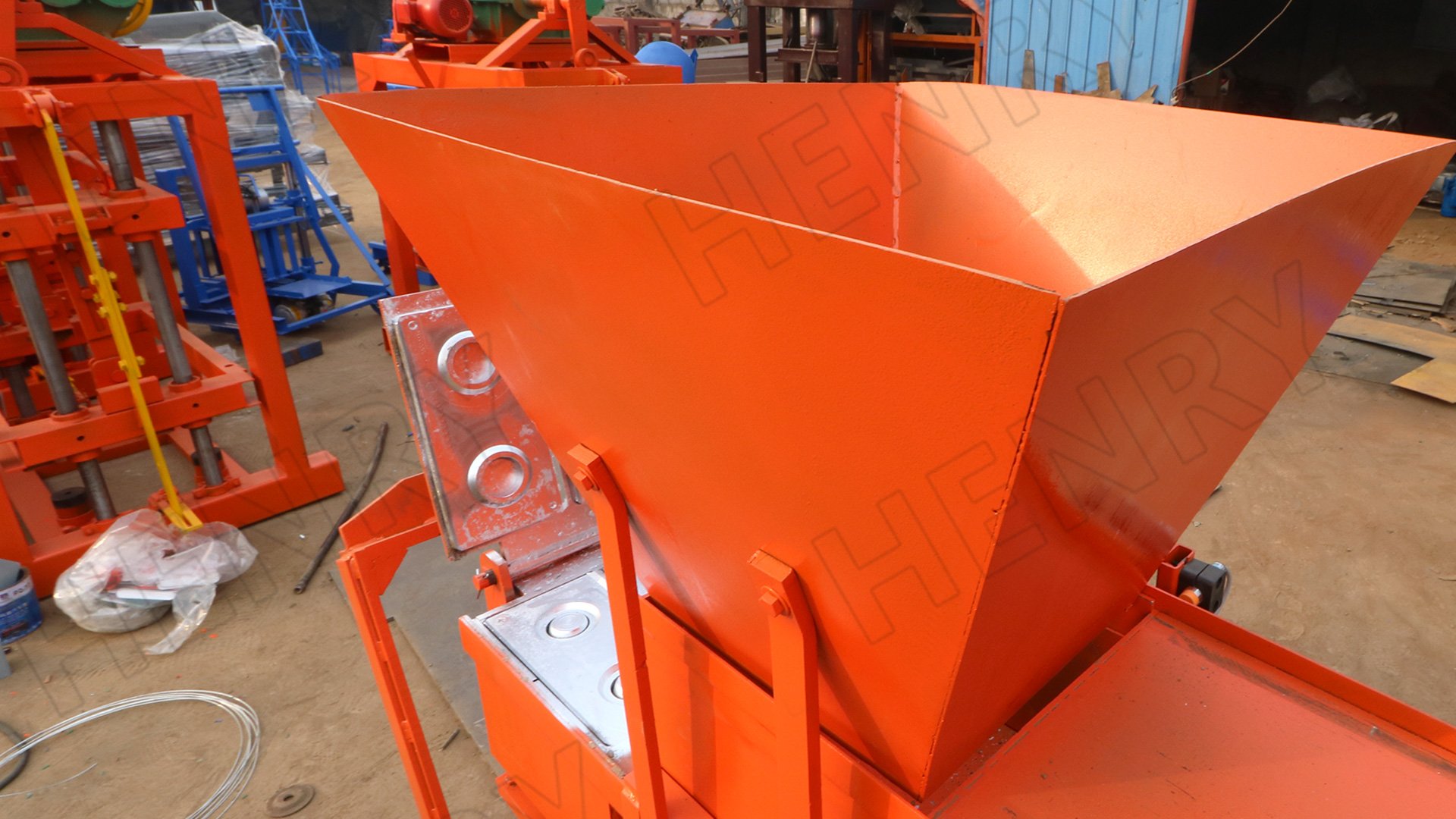

Why does HR2-25 Clay Brick Making Machine Price adopt the design of enlarging hopper?
HR2-25 Clay Brick Making Machine Price realizes automatic production, which improves the production efficiency of clay blocks and increases the output of clay blocks, so the demand for clay raw materials also increases. The enlarged hopper design increases the capacity of the hopper for loading clay raw materials. By adding enough clay raw materials at one time, 20 clay blocks with a size of 300*150*100mm can be continuously produced, which reduces the frequency of adding raw materials to the hopper.

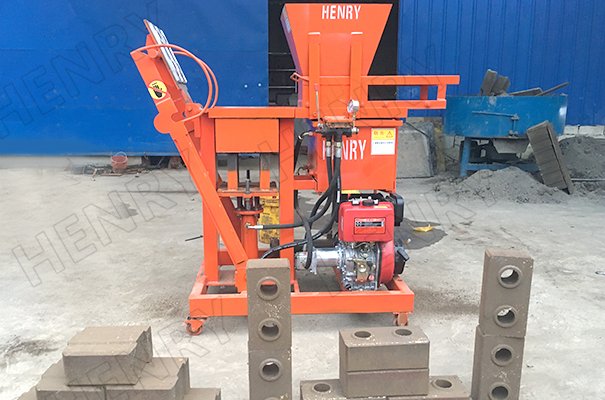

HR2-25 Clay Brick Making Machine Price is a small fully automatic, hydraulic and diesel-powered clay brick machine.

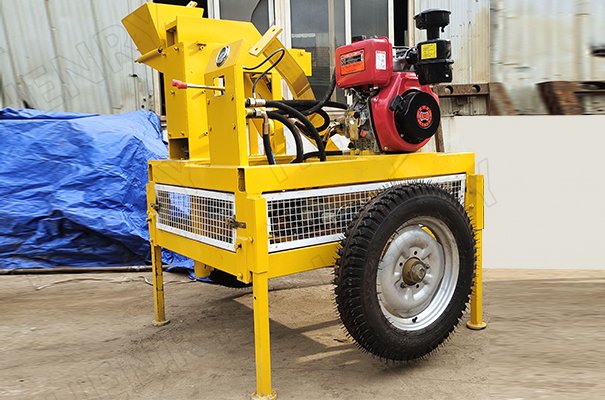

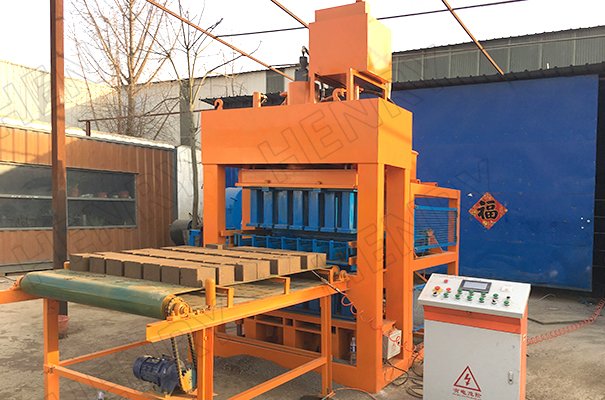

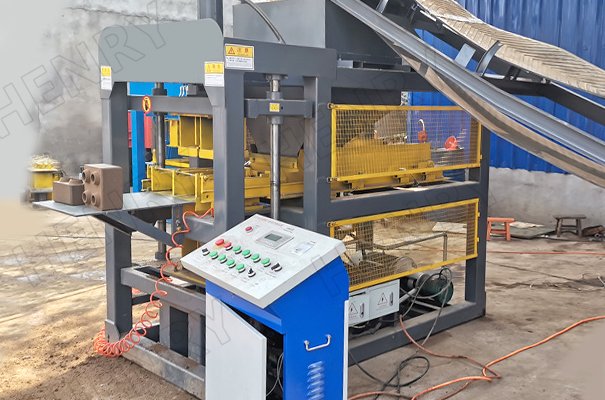

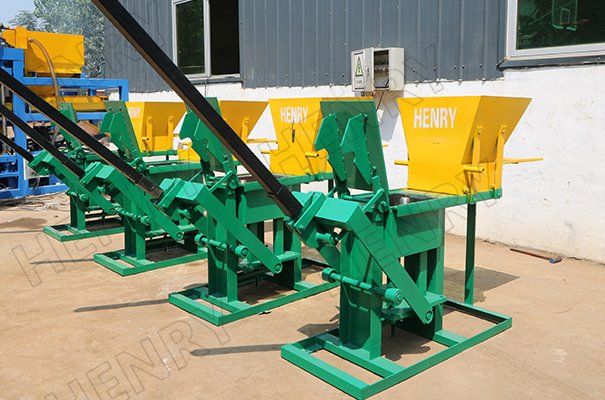

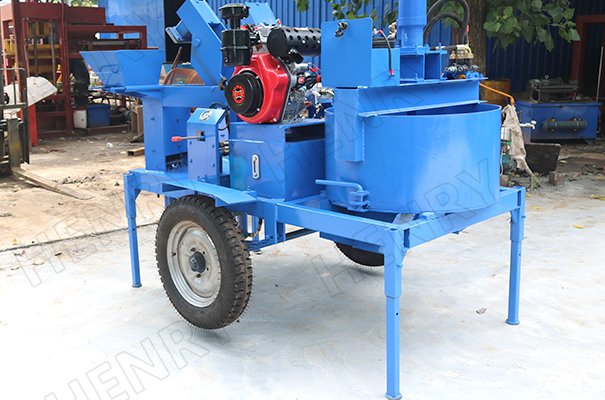

We also provides manual version, M7M1 single head, M7M1 double head mixer and automatic hydraulic clay brick machine for you to choose
Display of technical parameters of HR2-25 Clay Brick Making Machine Price
- Technology datas

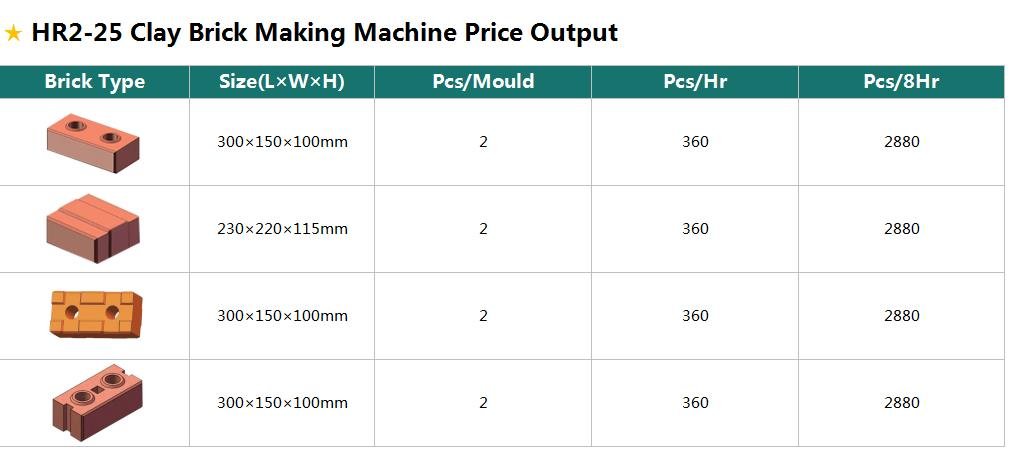

- HR2-25 Clay Brick Making Machine Price Production Output
| Overall Size | 1200*1000*1600mm |
| Shaping | 20s |
| Power | 10HP |
| Rated Voltage | Adjustable |
| Weight Of Host Machine | 700kg |
| Raw Materila | Soil/Clay/Earth |
| Capacity | 3000-3600pcs/8hr |
| Hydraulic System Pressure | 10 Tons |
| Workers | 1-2 workers |
| Block mould | One set for free |
| Warranty of core components | 1 year |
| Color | Can be customized |
| Machinery Test Report | Provided |
Get More Operation Videos
HENRY will explain to you in detail how to operate this HR2-25 Clay Brick Making Machine Price in a standardized way
1. First of all, raw materials needed by HR2-25 Clay Brick Making Machine Price to produce clay blocks need to be prepared. Clay requires fine, uniform particles and no impurities to avoid excessive salt.
2. Pour the prepared clay raw materials into a blender, add a certain proportion of sand, cement and water, and stir for 3 minutes.
3. Pour the stirred clay raw materials into the hopper of HR2-25 Clay Brick Making Machine Price.
4. Start the HR2-25 Clay Brick Making Machine Price diesel engine with one button.
5. Workers step on the automatic switch of HR2-25 Clay Brick Making Machine Price on the ground with their feet.
6. HR2-25 Clay Brick Making Machine Price began to produce clay bricks automatically. The production process includes automatic filling of mold materials, mold closing, hydroforming and demoulding.

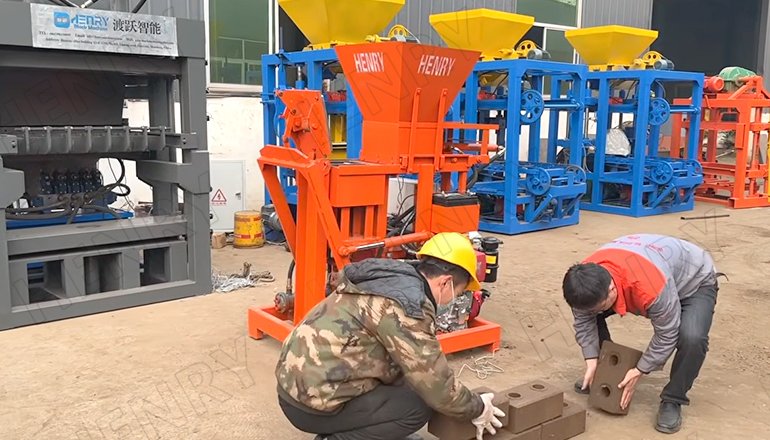

7. Workers move the clay blocks demoulded by HR2-25 Clay Brick Making Machine Price to an open place for air drying and curing.
HR2-25 Clay Brick Making Machine Price is a diesel-powered brick making machine, and the consumption of diesel mainly depends on the usage frequency and workload of HR2-25 Clay Brick Making Machine Price. Generally speaking, HR2-25 Clay Brick Making Machine Price needs 7-8L diesel for 8 hours.
The answer is of course. Customers can customize the color of HR2-25 Clay Brick Making Machine Price according to their own preferences. This requires customers to communicate with HENRY’s salesman after placing an order and provide us with customized color cards. Our workers will paint HR2-25 Clay Brick Making Machine Price according to the color cards provided by customers.
HR2-25 Clay Brick Making Machine Price is a fully automatic brick making machine with very simple operation. First of all, we will provide customers with product manuals and operation guides. Secondly, we will provide customers with the operation video of HR2-25 Clay Brick Making Machine Price, which shows the operation process in great detail. If customers still have questions, our after-sales team of HENRY Company can connect with customers by video and telephone, and teach them how to operate this HR2-25 Clay Brick Making Machine Price correctly step by step.
